37
English
Switching on the device
After inserting the battery, activate and release the trigger once, which is located on the front part
of the handle.
In this condition, the tool is able to operate immediately, i.e. pressing a rivkle onto the mandrel will start
the screwing operation. After this operation, the tool is ready to pull the rivet and the selected pull.
• Connect the battery
• Switch on the device
• To adjust the setting force value, press the RIGHT button
(SET) at any time and keep it pressed for 2 seconds.
The digits indicating the setting value start to blink.
• Press the LEFT (-) and RIGHT (+) keys, decreasing or
increasing the value in 100N steps, until the desired
value is reached.
• Press the CENTER (OK) confirmation button or wait 5 seconds without pressing any button.
Please note that when changing the force, the battery life also varies depending on the required pull:
a pull with less force will need less current, so the battery life will be longer and vice versa.

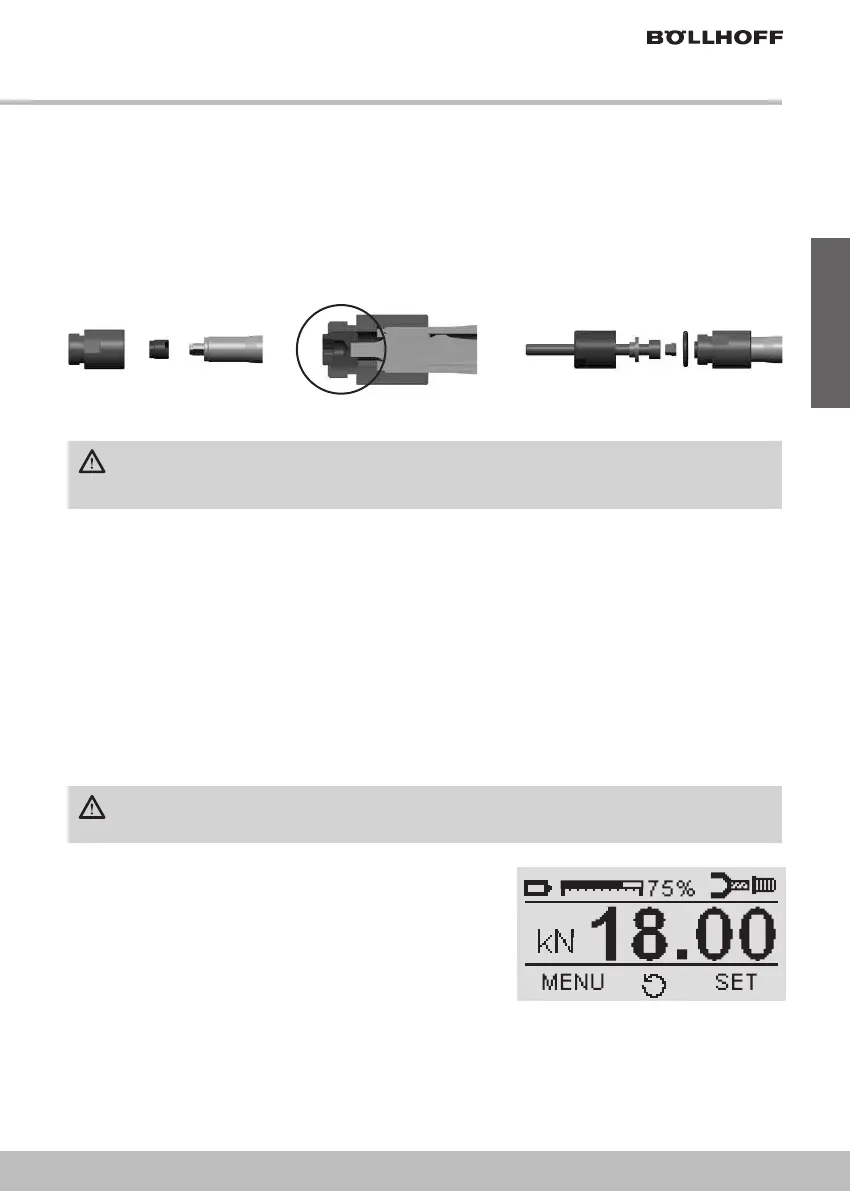

Adjustment of the setting force
To allow the use of the commercial screw kit the following is required:
• To take off the fork which is installed on the standard tool
• Install the common adaptator over the hydraulic piston
• Place the correct commercial screw with tooling
• Fix by installing the cap piece
• Install the nose
• Adjust the anvil (refer to page 36 for instruction).
THE BATTERY HAS TO BE DISCONNECTED WHEN REPLACING THE TOOLING.
MANDREL (1) MOVES DURING USE. AVOID CONTACT AND PAY THE UTMOST
ATTENTION
AT THE TIME OF DELIVERY, THE DEVICE IS SET TO THE MINIMUM FORCE.
THE DEVICE NEEDS TO BE SET FOR THE FIRST USE.
