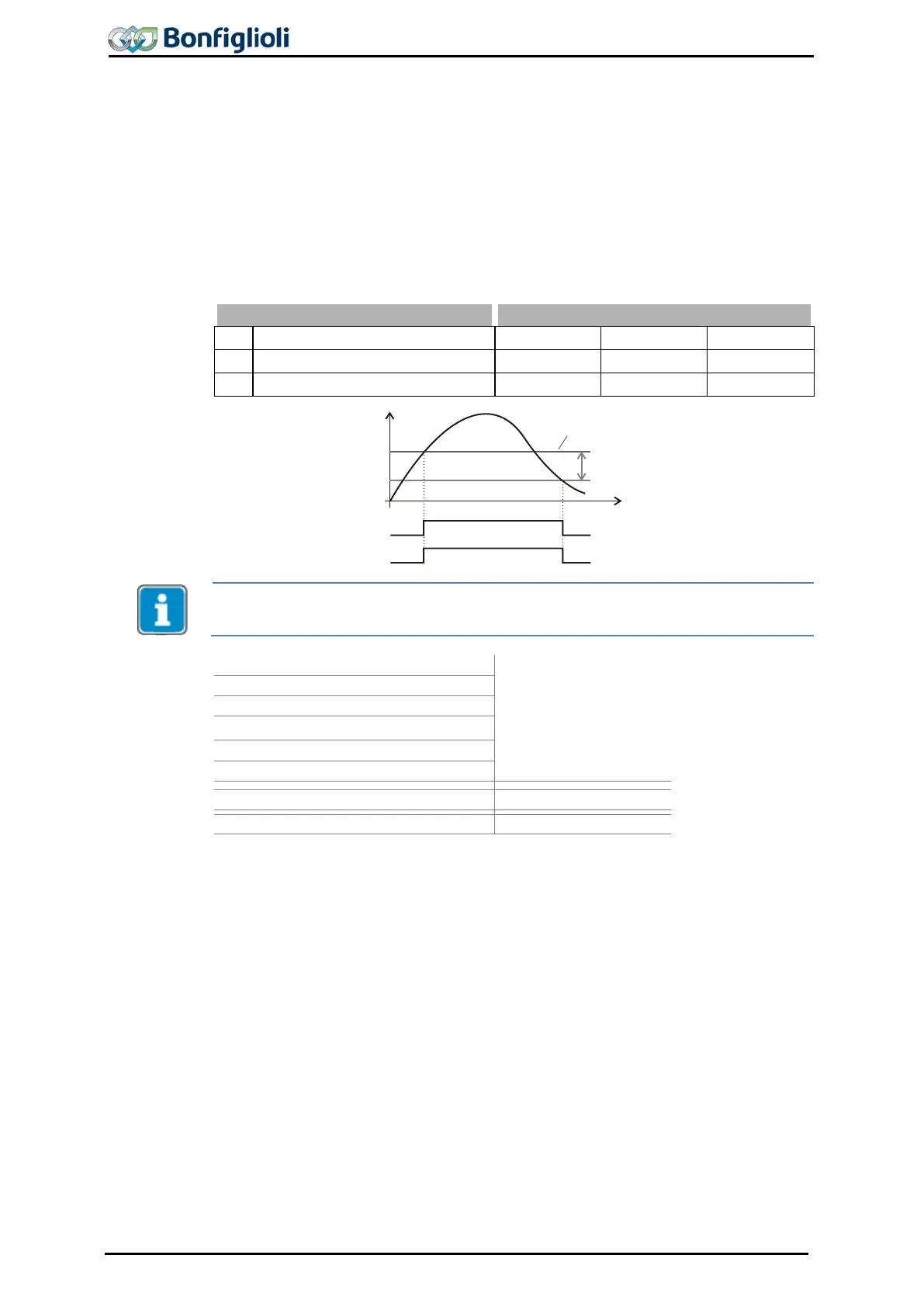

15.3.2 Setting Frequency
If operation mode 4 - “Setting Frequency” is selected for a digital output, the corre-
sponding output becomes active if the actual value Stator Frequency 210
exceeds
the value of Setting Frequency 510.
The relevant output is switched over again as soon as the Stator Frequency 210 falls
below the value of “Setting Frequency 510 minus Setting Frequency Off Delta 517”.
If the output stage is switched off (in example via STO), the digital signal “Setting
frequency” is set to zero independent of the actual frequency.
Signal source 164 - “Setting Frequency” can be linked with inverter functions.
Parameter
Settings
No. Description Min. Max. Fact. sett.
510 Setting Frequency 0.00 Hz 999.99 Hz 3.00 Hz
517 Setting Frequency Off Delta 0.00 Hz 999.99 Hz 2.00 Hz
If Setting Frequency Switch Off Delta 517 > Setting Frequency 510 the output is nev-
er reset after the first switching on. Set up fitting values during commissioning.
Op. Mode Digital Output 1 530
or
4 - Setting Frequency
Op. Mode Digital Output 2 531
or
Op. Mode Digital Output 3 532
With expansion module:
Op. Mode EM-S1OUTD 533
or
Op. Mode EM-S1OUTD 534
Setting Frequency 510
Set value [Hz]
For linking with functions
164 - Setting Frequency
Stator Frequency
210
t
Digital output
164 - Setting Frequency
Setting Frequency Off Delta 517
Setting Frequency 510
184 Operating Instructions ACU 06/13
