BONFIGLIOLI ACTIVE Cube ACU 201-11 User Manual

5.1 ACU 201 (up to 3.0 kW) and 401 (up to 4.0 KW)
The frequency inverter is mounted in a vertical position on the assembly panel by
means of the standard fittings.

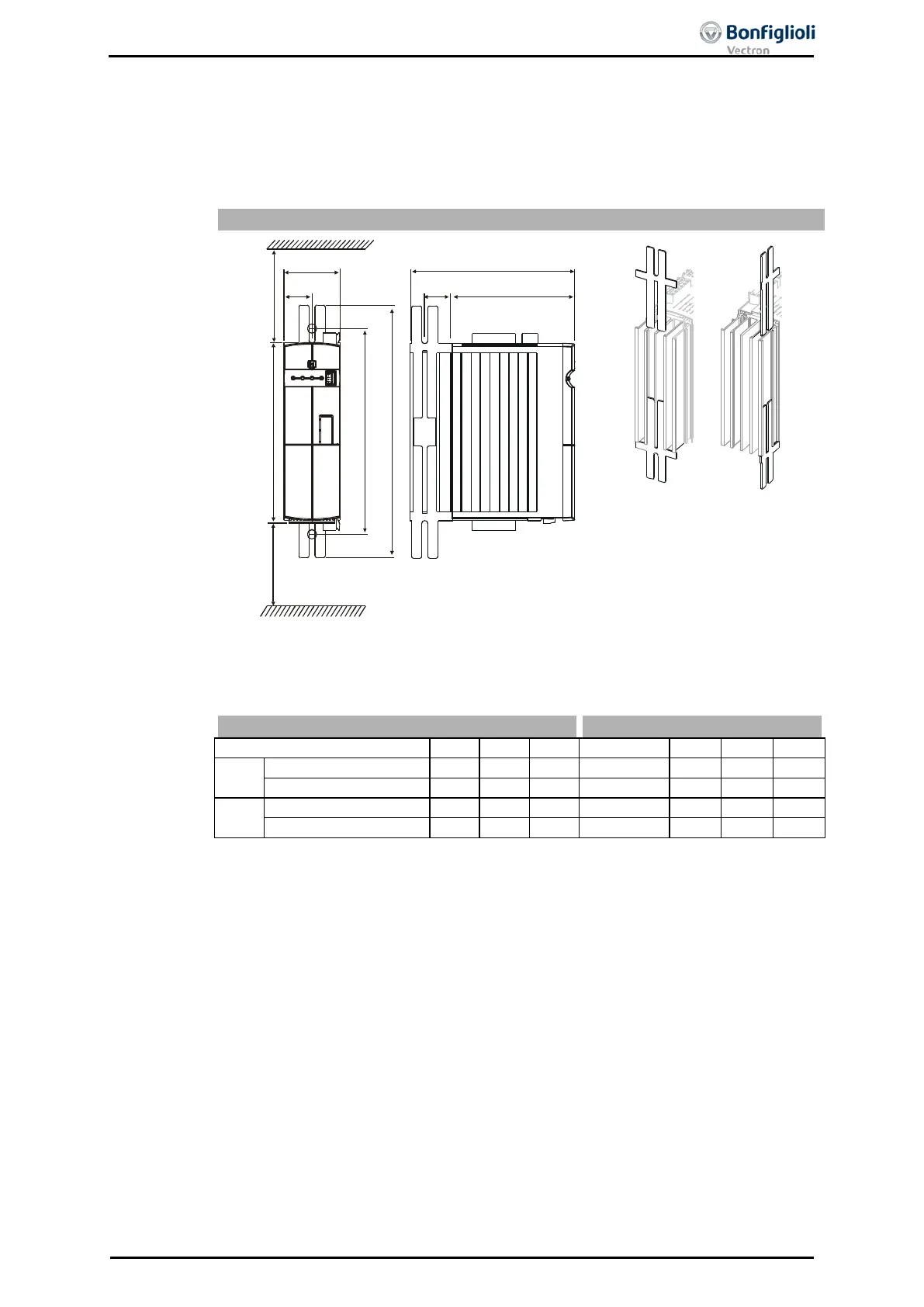

The following illustration shows the different mounting possibilities.
Standard installation
b
b1
a1
a a2
c
c1
x
x
x 100 mm≥
b1
Assembly is affected by inserting the long side of the fixing plate in the heat sink and
screwing it to the mounting plate.
The dimensions of the device
and the installation dimensions are those of the standard
device without optional components and are given in millimeters.
Dimensions [mm]
Installation dimensions [mm]
ACU
a
b
c
a1
a2
b1
c1
201
0.25 kW ... 1.1 kW
190
60
178
210 ... 230
260
30
133
1.5 kW ... 3.0 kW
250
60
178
270 ... 290
315
30
133
401
0.25 kW ... 1.5 kW
190
60
178
210 ... 230
260
30
133
1.85 kW ... 4.0 kW
250
60
178
270 ... 290
315
30
133
06/13 Operating Instructions ACU 43
