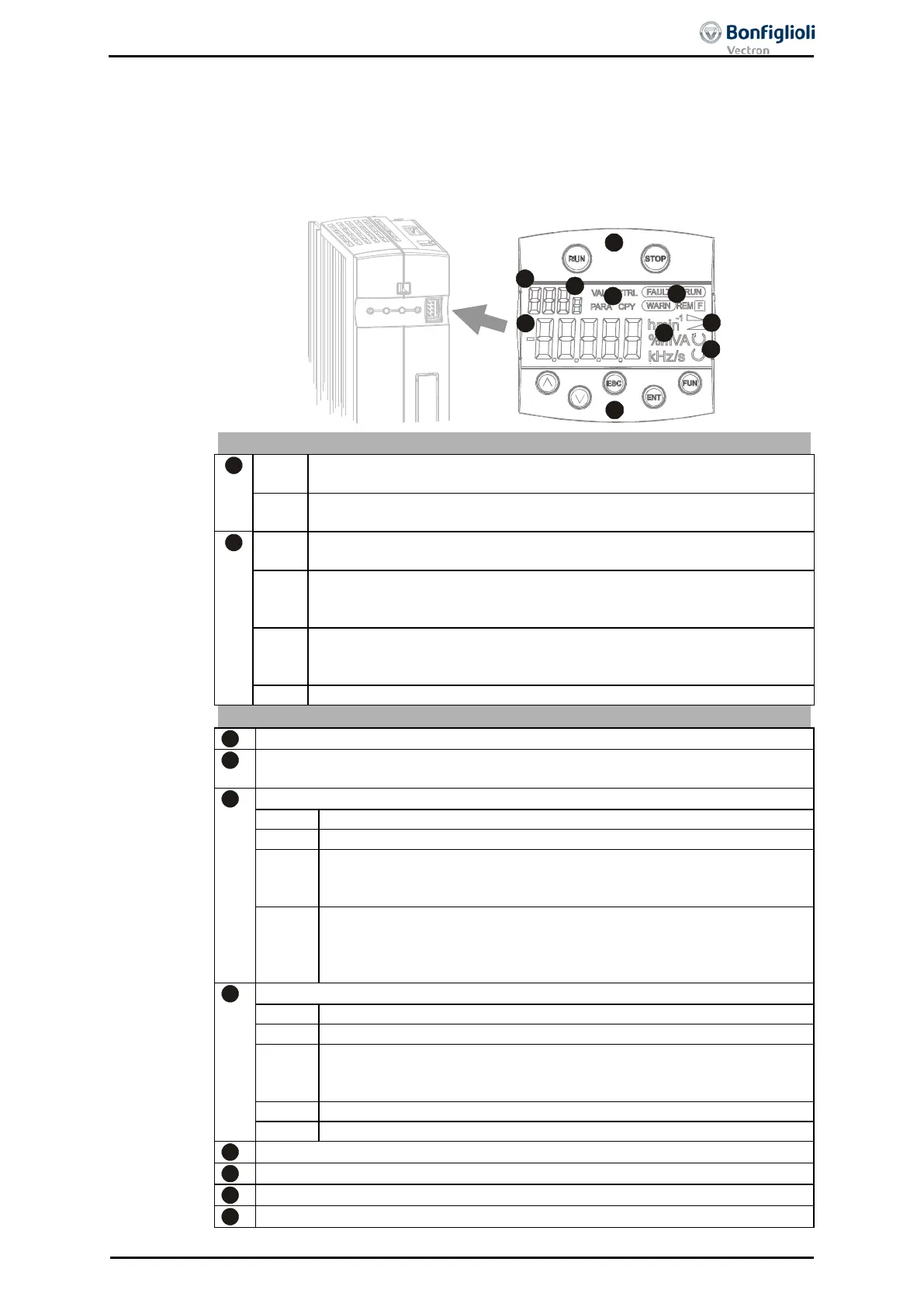

7 Control Unit KP500
The optional KP500 control unit is a practical tool for controlling the frequency invert-
er and setting and displaying the frequency inverter parameters.
The control unit is not absolutely necessary for the operation of the frequency invert-
er and can be plugged on when required.
A
B
C
D
E
F
G
H
I
J
Keys
A
RUN
Used for starting the drive and opening the CTRL menu.
Press the RUN key to open the motor potentiometer function.
STOP
Used for opening the CTRL menu, stopping the drive and acknowledg-
ing faults.
J
▲ ▼
Used for navigating in the menu structure and selecting parameters.
Increasing/decreasing of parameter values.
ENT
Used for opening parameters or switching to another menu within the
menu structure.
Confirmation of the selected function or the set parameter.
ESC
Used for aborting parameters or switching back to the previous menu
within the menu structure. Canceling the function or resetting the pa-
rameter value.
FUN
Used for switching over the key function, access to special functions.
Display
B
Three-digit 7-segment display to show the parameter number.
C
One-digit 7-segment display for display of the active data record, direction of
rotation etc.
D
Display of the selected menu branch:
VAL
Display actual values.
PARA
Select parameters and adjust parameter values.
CTRL
Select a function for adjustment and/or display via the operating unit:
SEtUP guided commissioning.
CtrL motor potentiometer and jog function.
CPY
Copy parameters via the control unit:
ALL All the parameter values are copied.
Act Active parameter values are copied only.
FOr Control unit memory is formatted and deleted.
E
Status and operating messages:
WARN
Warning about a critical operating behavior.
FAULT
Message indicating that the unit was switched off due to a fault.
RUN
Flashing: signals readiness for operation.
Lights up: signals that the unit is operating and the output stage
is
enabled.
REM
Active remote control via interface connection.
F
Function switch-over with the FUN key.
F
Five-digit 7-segment display for display of parameter value and sign.
G
Physical unit of the parameter value displayed.
H
Active acceleration or deceleration ramp.
I
Current direction of rotation of the drive.
06/13 Operating Instructions ACU 87
