3 Scope of Supply
Thanks to the modular hardware components, the frequency inverters can be inte-
grated in the automation concept easily. The scope of delivery described can be sup-
plemented by optional components and adapted to the customer-specific require-
ments. The plug-
in type connection terminals enable a safe function and quick and
easy assembly.

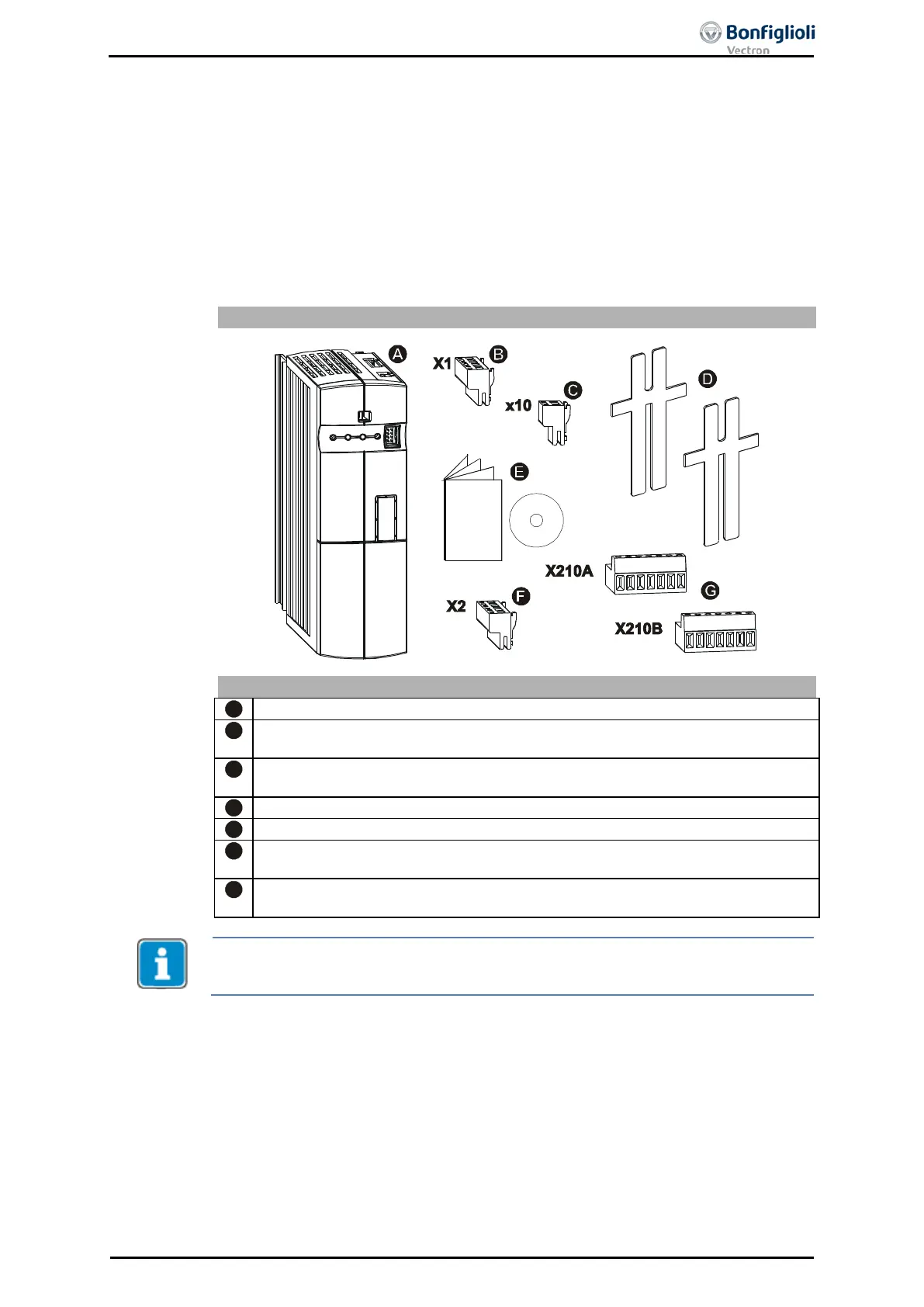

3.1 ACU 201 (up to 3.0 kW) and 401 (up to 4.0 kW)
Scope of Supply
Scope of Supply
A
Frequency inverter
B
Terminal strip X1 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminals for mains connection and DC linking
C
Terminal strip X10 (Phoenix ZEC 1.5/3ST5.0)
Plug-in terminals for the relay output
D
Standard fixtures for vertical assembly
E
Brief Instructions and Operating Instructions on CD ROM
F
Terminal strip X2 (Phoenix ZEC 1,5/ST7,5)
Plug-in terminal for brake resistor and motor connection
G
Control terminals X210A / X210B (Wieland DST85 / RM3.5)
Plug-in terminal for connection of the control signals
Please check incoming goods for quality, quantity and nature without delay. Obvious
defects such as exterior damage of the packing and/or the unit must be notified to the
sender within seven days for insurance reasons.
06/13 Operating Instructions ACU 25
