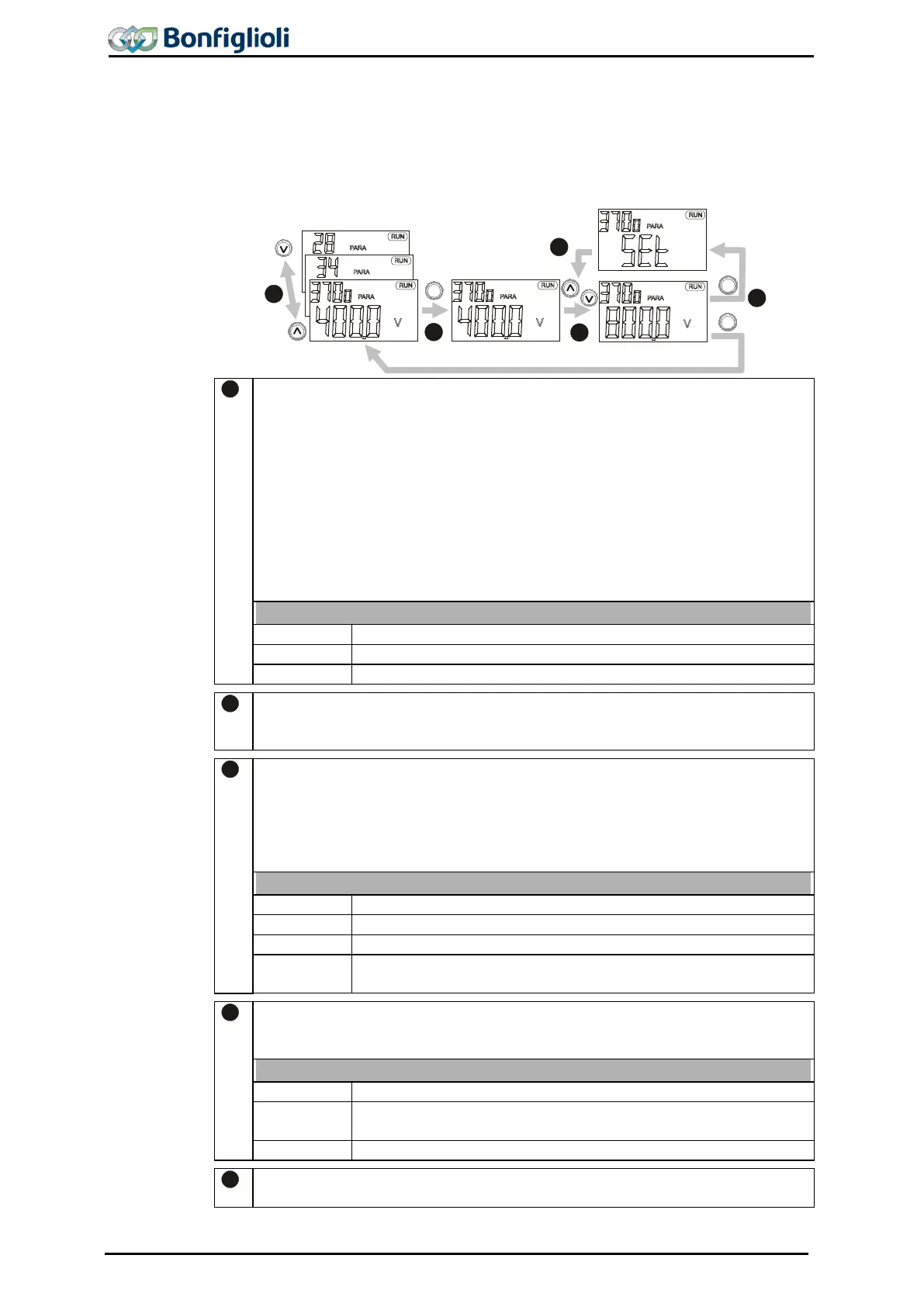

7.4 Parameter Menu (PARA)
The parameters to be configured during the guided commissioning procedure were
selected from common applications and can be supplemented as required by further
settings in the PARA menu branch. The parameters and basic software functions
linked to the corresponding actual value are documented in the operating instruc-
tions.
A
Use the arrow keys to select the required number from the parameters dis-
played in numerical order. The parameter number is displayed with the active
data set (flashes).
If the highest parameter number is achieved, actuating the ▲-
key displays the
lowest parameter number.
If the lowest parameter number is achieved, actuating the ▼-
key displays the
highest parameter number.
Parameter numbers > 999 are displayed
hexadecimal at the leading digit (999,
A00 … B5 … C66).
In the current data set, the related parameters are displayed, including the
corresponding data set number. The seven-
segment display shows data set 0 if
the parameter values in the four data sets are identical.
Keys
▲ + ▼
Change to the last parameter edited.
FUN , ▲
Display of last parameter (highest number).
FUN , ▼
Display of first parameter (lowest number).
B
Use the ENT key to select the parameter. The parameter is displayed including
its value, unit and the active data set. If settings are edited in data set 0, the
parameter values are changed in the four data sets.
C
Use the arrow keys to adjust the parameter value or to select an operation
mode. The adjustment possibilities you have depend on the parameter.
Keep the arrow keys pressed for a while to change the displayed values quickly.
If you release the keys again, the s
peed at which the values change is reduced
again. If the parameter value starts to flash, the speed at which the values
change is reset to the initial value again.
Keys
▲ + ▼
Set parameter to factory setting.
FUN , ▲
Set parameter to highest value.
FUN , ▼
Set parameter to smallest value.
FUN , ENT
Change of the data set in the case of data set related parame-
ters.
D
Use the ENT key to save the parameter. For a short time, the message SEt
including the
parameter number and the data set is displayed. To leave the
parameter unchanged, press the ESC key.
Messages
Err1: EEPrO
Parameter has not been saved.
Err2: StOP
Parameter can only be read (i.e. not edited) when the unit is in
operation.
Err3: Error
Other error.
E
After saving the parameter, you can edit the value again or return to the pa-
rameter selection menu by pressing the ESC key.
ENT
ENT
ESC
A
B
C
D
E
