3 Assembly of the CANopen communication module CM-CAN
The CANopen communication module CM-CAN is supplied in a housing for assembly in
a card slot of the frequency inverter. The scope of delivery additionally includes a PE
spring for a PE connection (shielding) of the communication module.
Caution! Before assembly of the CM-CAN CANopen communication module, the
frequency inverter must be switched free of voltage.
Assembly under volta
ge is not admissible and leads to the destruction of
the frequency inverter and / or the CANopen module.

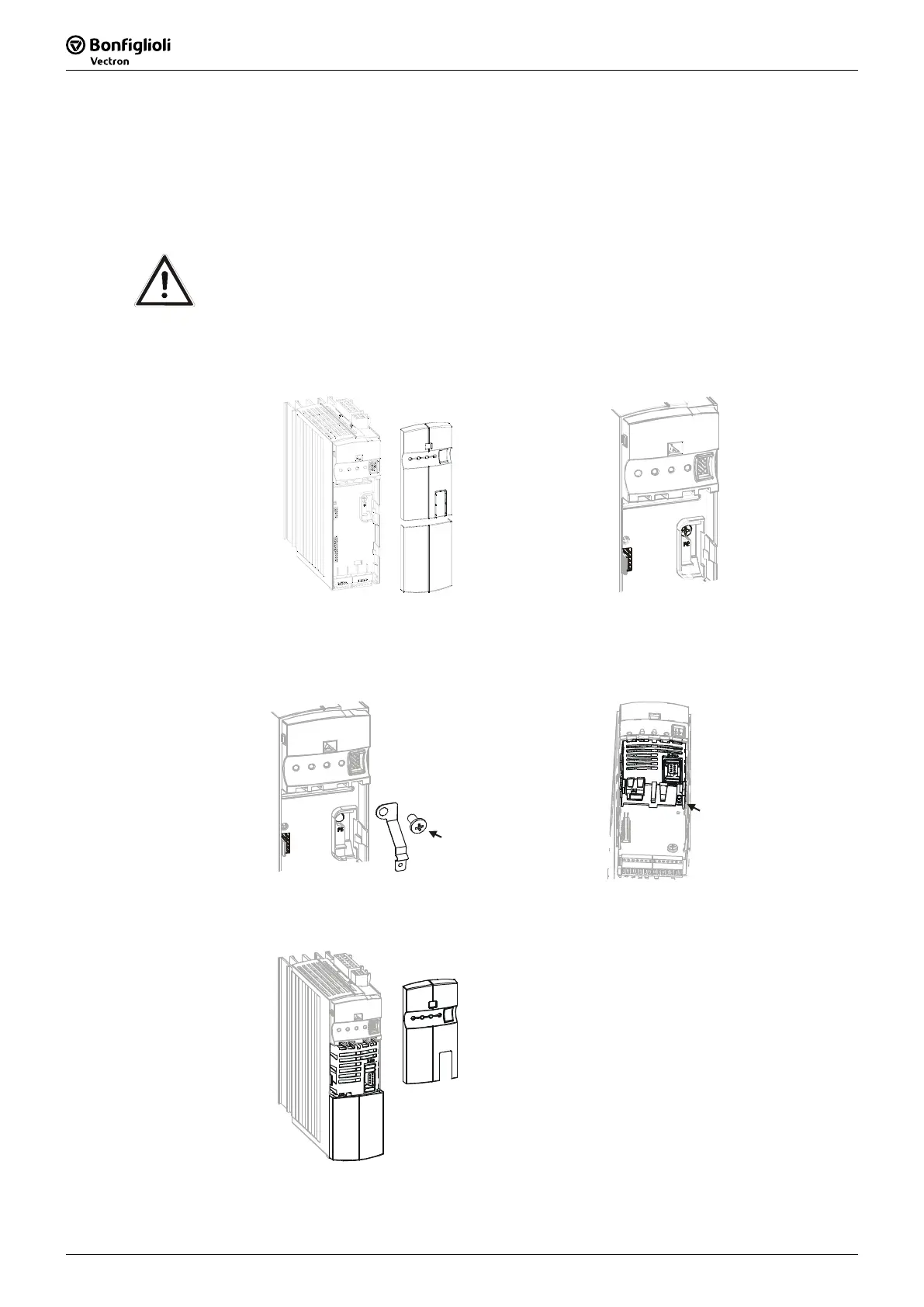

In a first step, please remove the covers of the frequency inverter. The card slot for
the CANopen communication module CM-CAN becomes accessible.
The PE spring supplied is assembled with the help of the M4 screw in the device. The
spring must be aligned central.
The CM-CAN communication module can now be positioned and screw connected to
the PE spring with the M screw in the device.
M4
M2
After completion of the assembly, replace the covers. The pre-stamped breakthrough
in the upper cover for the X310 plug is to be broken out.
