9.4 Reference value / actual value
The control gives its reference value to the frequency inverter via the object 0x6042/0
target velocity in the RxPDO used and receives the information about its actual value
back via the object 0x6044/0 control effort in the TxPDO used.
The use of the reference/actual value channel depends on the set configuration
(control system). The actual value is generated from the correct source depending on
the control system used.
Note: The reference value in the object 0x6042/0 target velocity and the actual
value in the object 0x6044/0 control effort are interpreted by the control
in the notation xxxx RPM. Conversion into a frequency (reference value)
or from a frequency (actual value) is done in the frequency inverter.
The object pole number is converted inside the product and related to the
parameter
No. of pole pairs 373 in the first data set. The paramete
r
value of the number of pole pairs is to be doubled for the ob
ject
0x604D/0 pole number.

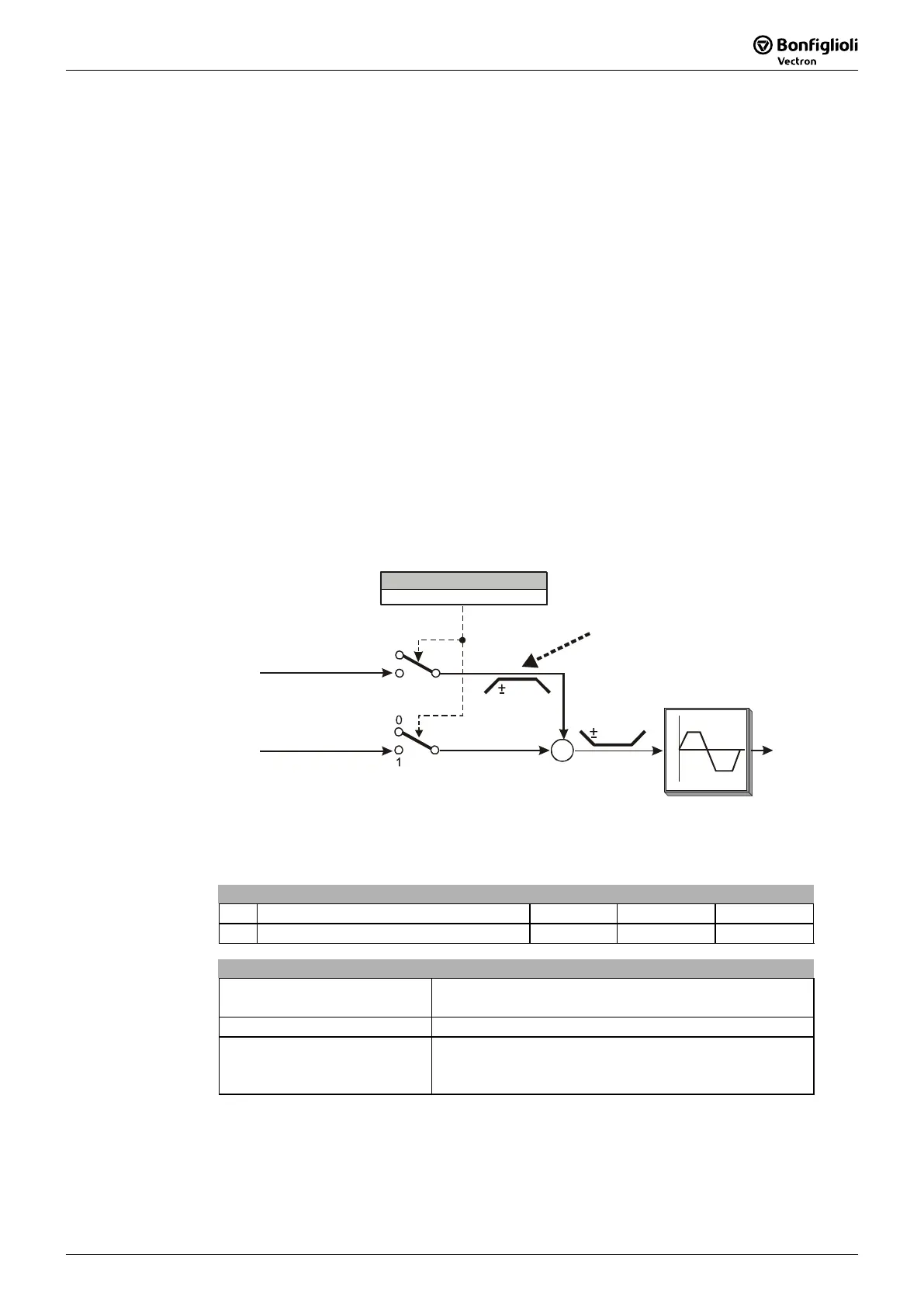

The reference value for the frequency inverter from the object 0x6042/0 target
velocity is included via the reference line value. This reference value is combined with
the internal reference value from the reference frequency value channel in the input
of the ramp function. Reference frequency value channel: see operating instructions.
reference
line value
please read the note !
frequency
ramp
fmax
fmin
0
1
+
internal reference
frequency
operation mode 434
Ramp set-point
The internal reference value from the reference frequency value channel and the
reference line value can be fed to the ramp individually or as an added variable.
Setting is done via the data set change-over capable parameter
Ramp set-point 434.
Parameter Setting
No. Description Min. Max. Fact. sett.
434 Ramp set-point 1 3 3
Operation mode Function
0 - Internal reference
frequency value
Reference value from the sources of the percentage of
reference frequency value channel
1 - Reference line value Reference value via a communication interface
2 - Internal reference
frequency value
+ reference line value
Sum of internal reference frequency value
and reference line value
