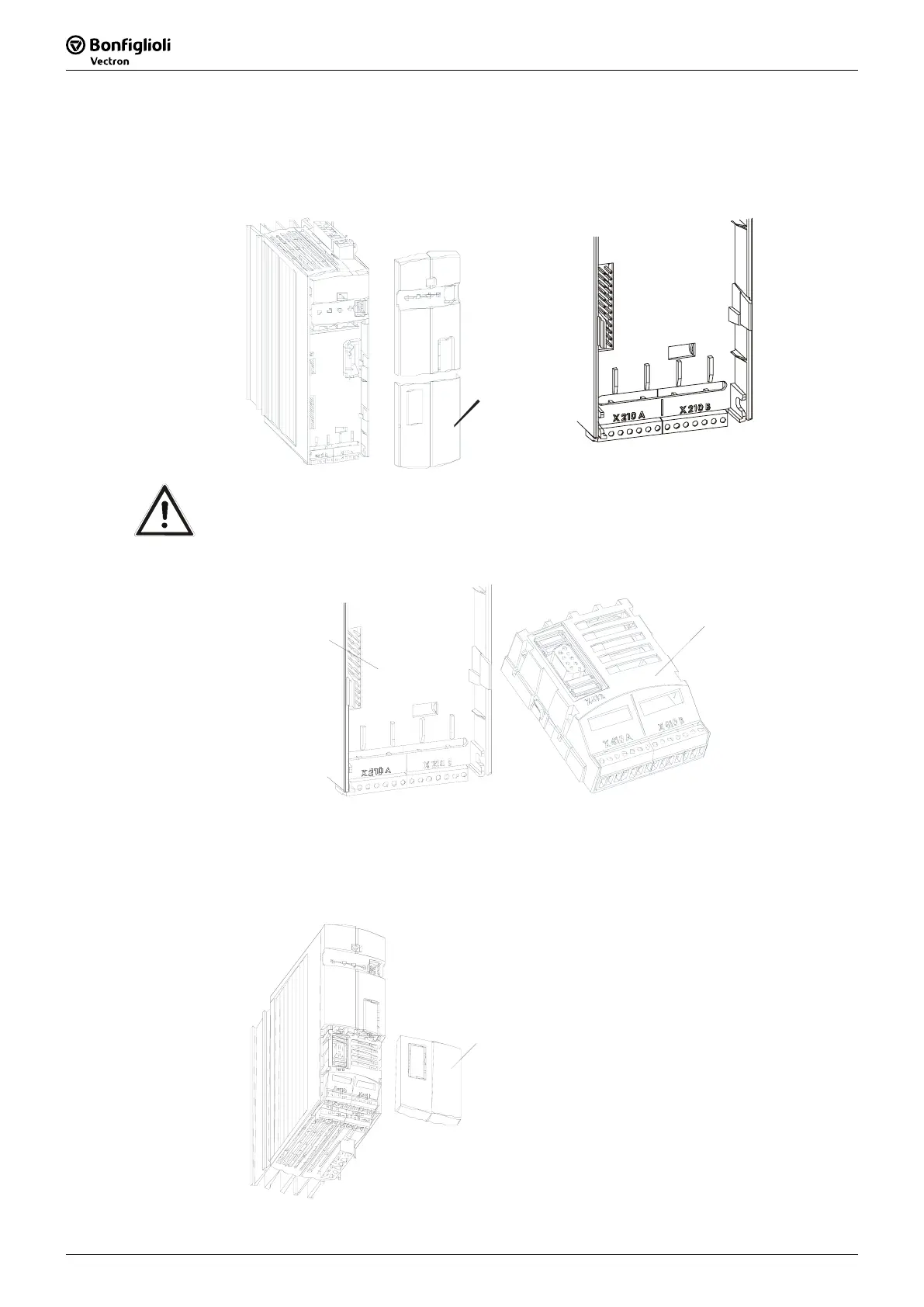

The EM-RES-03 expansion module is supplied in a housing for assembly on the lower
slot of the frequency inverter.
• Remove the lower cover (1) of the frequency inverter.
The slot for the EM-RES-03 expansion module becomes accessible.
1
Caution! The EM-RES-03 expansion module (2) is pre-fitted in a housing. Do NOT
touch the PCB visible on the back, as modules may be damaged.
• Plug the EM-RES-03 expansion module (2) onto the slot (3).
2
3
• Re-install the lower cover (1).
This completes the assembly procedure.
When the supply voltage of the frequency inverter is switched on, the EM-RES-03
expansion module is ready for operation.
1

BONFIGLIOLI Vectron Specifications

General

Communication	CANopen
Protection	Overcurrent, Overvoltage, Overtemperature
Storage Temperature	+70°C
Humidity	95% RH, non-condensing
Enclosure Rating	IP20
Input Voltage	24 V DC
