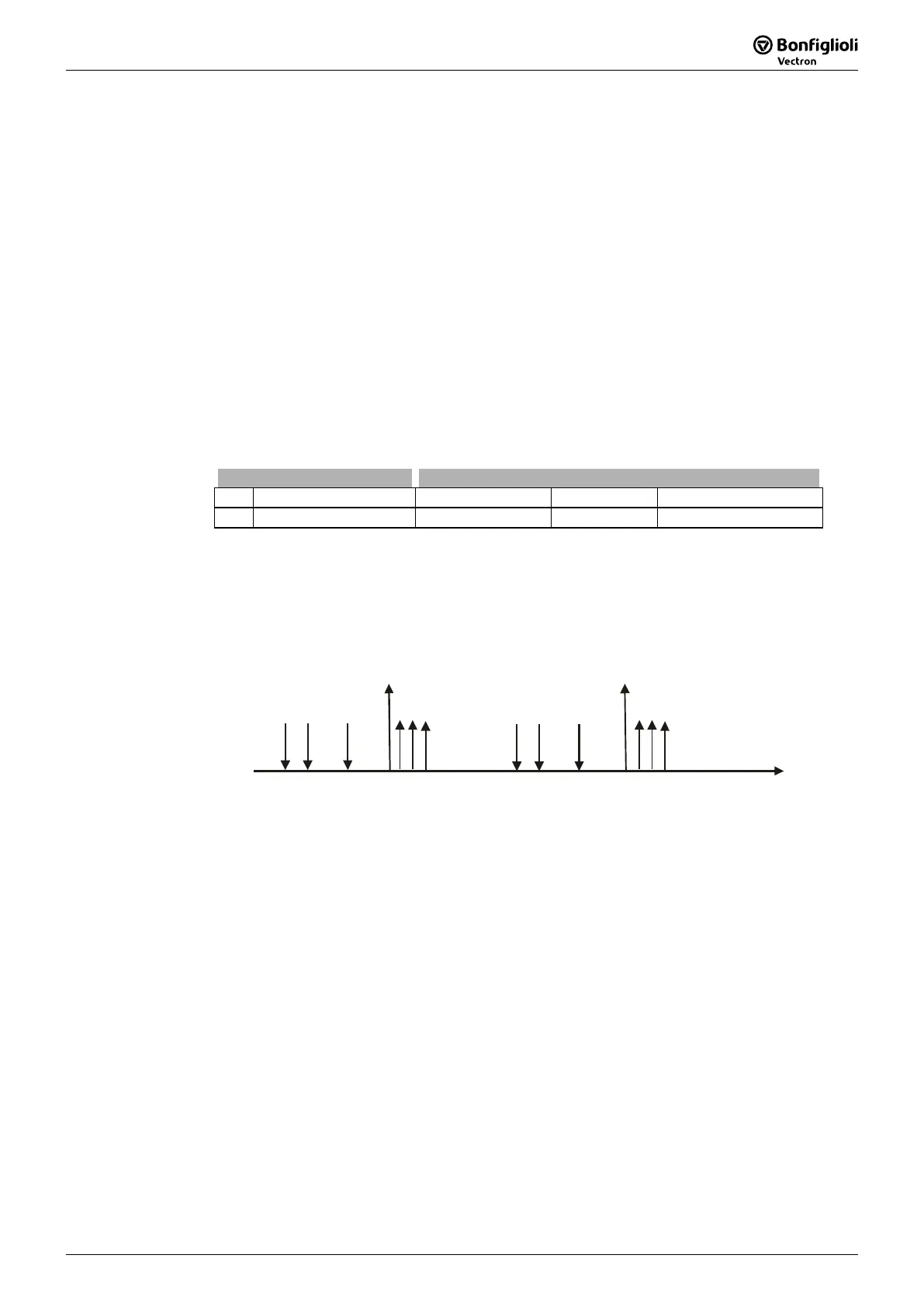

5.9.2 Process SYNC telegram
If synchronous PDO’s have been created in an frequency inverter, their processing is
synchronized with the SYNC telegram. The SYNC telegram is generated by the system
bus master and is a telegram without data.
The identifier is 128 according to the Predefined Connection Set.
If a PC or PLC is used as a master, the identifier of the SYNC telegrams can be
adapted by parameterization on the frequency inverter. The identifier of the SYNC
telegram must be set identically in all subscribers on the system bus.
Attention: The identifier range 129 ... 191 may not be used as the emergency tele-
grams can be found there.
The setting of the identifier of the SYNC telegram is done via the parameter
SYNC-
Identifier
918.
Parameter Setting
No. Description Min. Max. Factory setting
918 SYNC-Identifier 0 2047 0
The setting "0” results in identifier assignment according to the Predefined Connection
Set.
The data of the Rx-PDO’s are forwarded to the application after the arrival of the SYNC
telegram. At the same time, the Tx-PDO’s with the currently available data from the
application are sent.
SYNC
SYNC
RxPDO's RxPDO'sTxPDO's TxPDO's
Zeit
This method enables pre-occupancy of set points in the system bus subscribers and a
synchronous / parallel take-over of the data.
