5.8.4 Client SDO (system bus master)
Each subscriber on the system bus can be addressed via the SDO channels. In this
way, each subscriber can be addressed and parameterized by one master via its cli-
ent SDO1. All the parameters of the data types uint/int/long are accessible. String
parameters can not be processed. If an frequency inverter has been defined as a
system bus master, each subscriber on the system bus in this frequency inverter can
be addressed by means of a field bus connection (RS232, RS485, Profibus-DP) via its
client SDO1.
Note: The second SDO channel SDO2 of the frequency inverters is planned for
the parameterization of the frequency inverters via a visualization tool on
the system bus.
The service used is SDO Segment Protocol Expedited according to CANopen. An fre-
quency inverter defined as a system bus master automatically generates the correct
telegrams. If the SDO channel is operated via a PLC/PC on the system bus, the tele-
grams must be generated according to the specification.

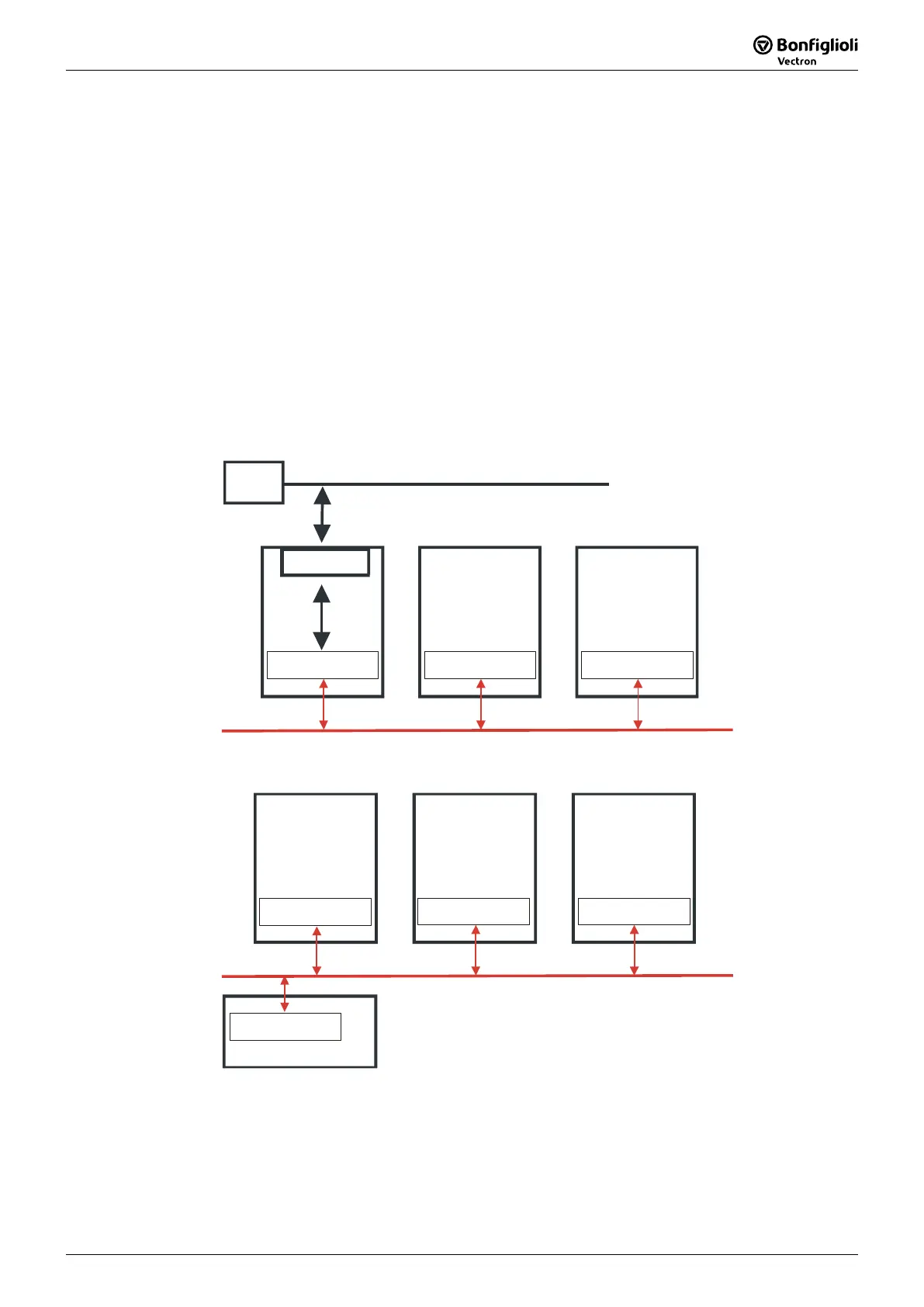

PLC
Field bus
Field bus
Inv.1 Inverter 2 Inverter 2
System bus
Client-SDO 1
Server-SDO 1
Server-SDO 1
Inverter 1
Visualizationtool
Server-SDO 2
Client-SDO 2
Server-SDO 2
Server-SDO 2
Inverter 2 Inverter 2
System bus
