6.2.3 I²C

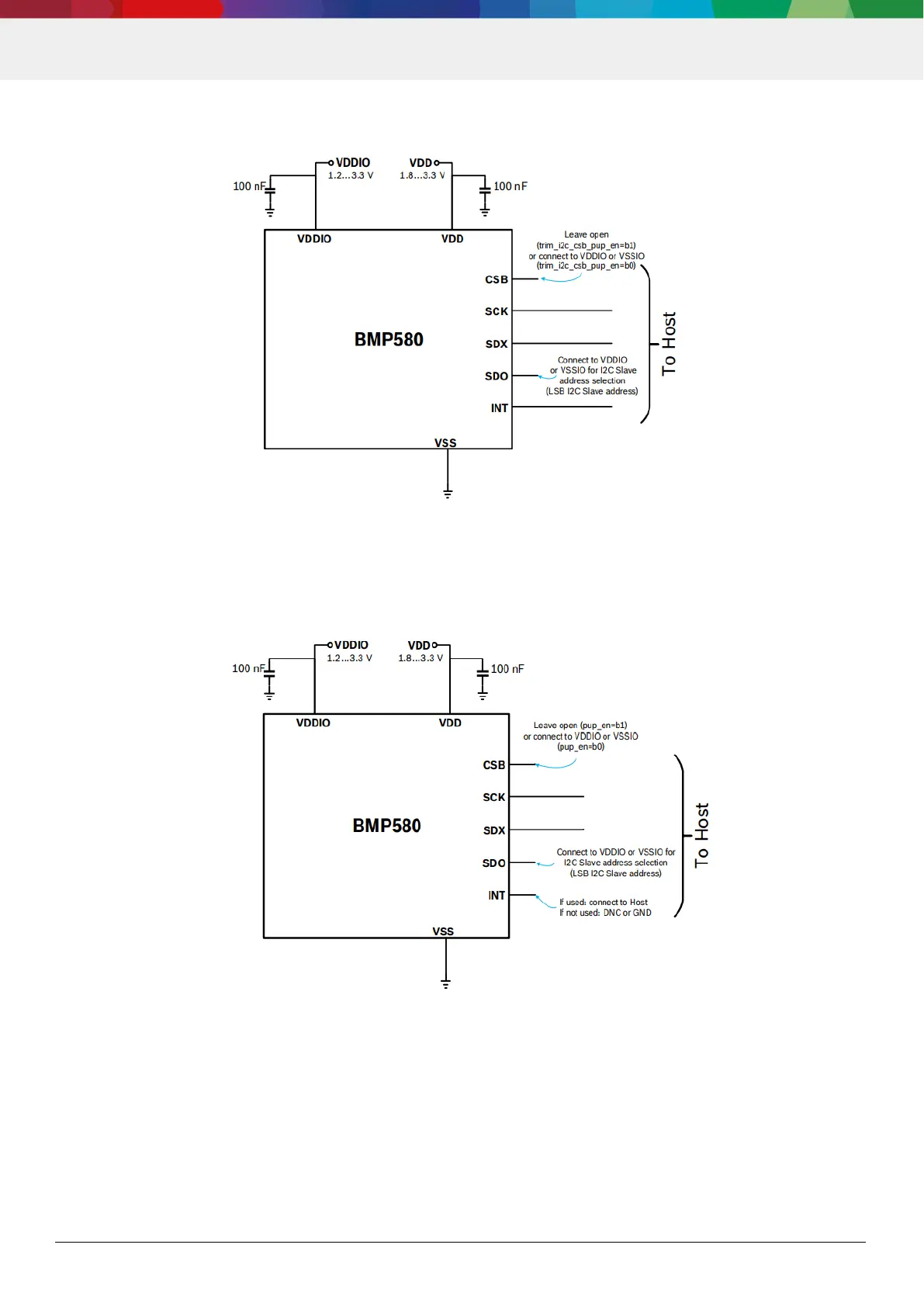

Figure 21: I²C connection diagram
In I²C mode, either the CSB pullup should be enabled, or the pin should be connected to either VDDIO or VSS.
6.2.4 I3C
Figure 22: I3C connection diagram
