CC488 | Quick Reference Guide | 7.0 Component Overlay EN | 26
Bosch Security Systems | 6/04 | 4998152446B
7.0 Component Overlay

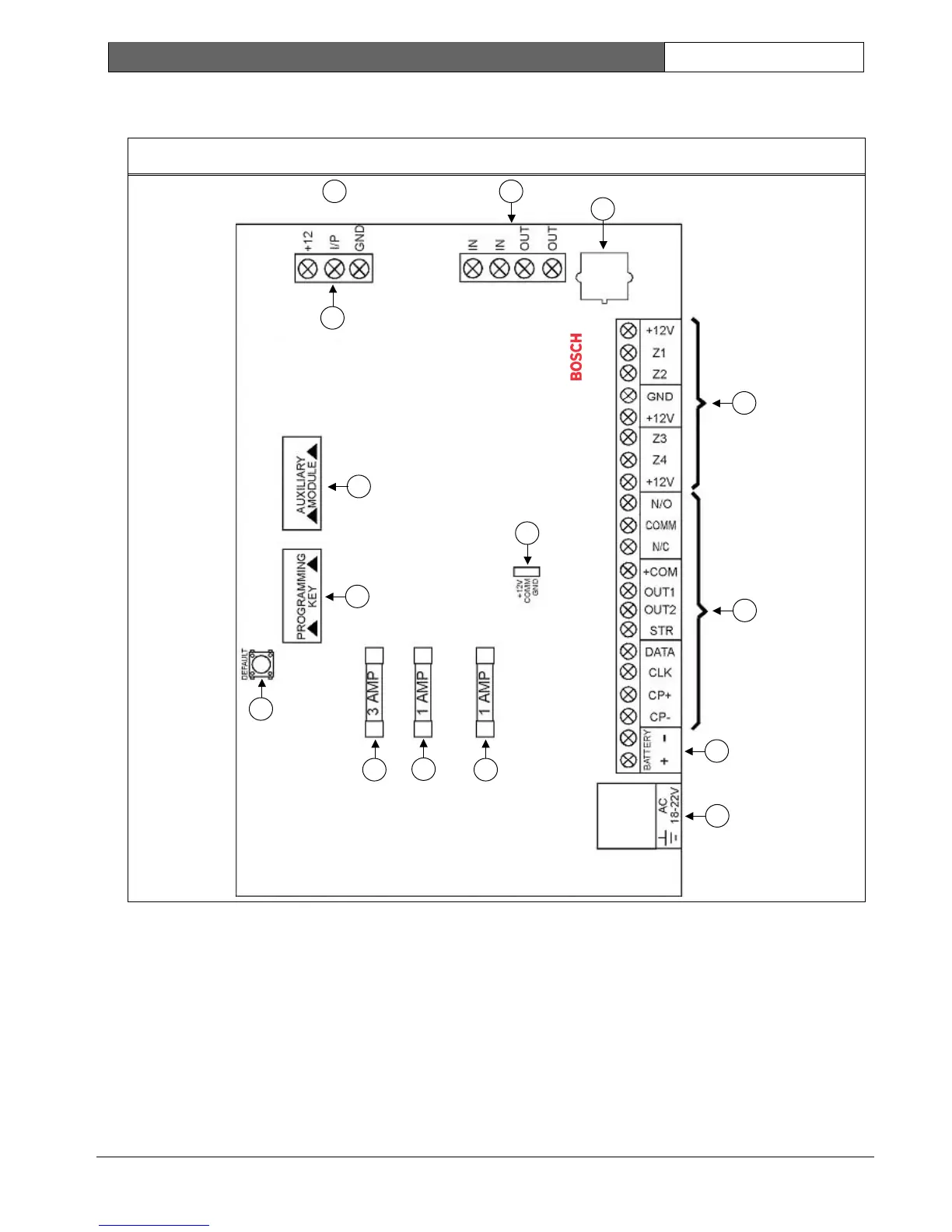

Figure 9: Solution Ultima Series Component Overlay
1 2
3
4
5
6
9
8
14
15
11
12
13
7
10
1 = OUT – Internal phone line
OUT – Internal phone line
IN – Telecom line (street)
IN – Telecom line (street)
2 = Termination for phone line
3 = Socket for telecom lead connection
4 = Receiver interface connection
5 = Zone termination strip
6 = Phone amplifier or direct link cable
7 = Relay contact select
8 = Programming key or hand help programmer plugs
9 = Output termination strip
10 = Default switch
11 = 3 A battery fuse
12 = 1 A accessory fuse
13 = 1 A codepad fuse
14 = Battery input
15 = Plug pack input (Bosch Security Systems TF008)
