CC488 | Quick Reference Guide | 8.0 Codepad Connections Partitioning EN | 27
Bosch Security Systems | 6/04 | 4998152446B
8.0 Codepad Connections
Partitioning

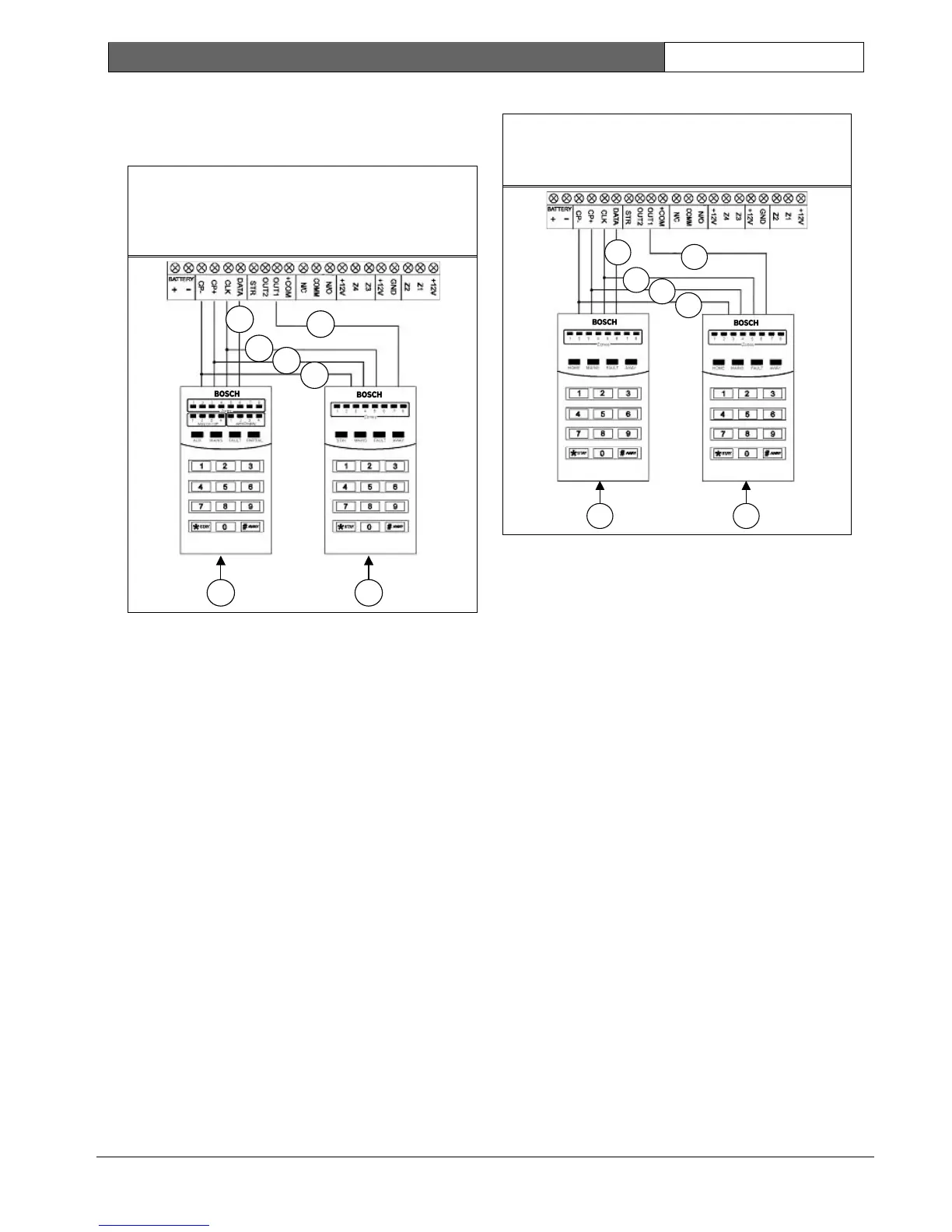

Figure 10: Connections for CP-5 Master
Partitioned (CP500P) Codepad and
CP-5 Area Addressable (CP500A)
Codepad
1
1
2
3
4
5 6
1 = Data
2 = CLK
3 = +12 V
4 = GND
5 = Master Partitioned Codepad
6 = Addressable Area Codepad
If the CP-5 Area Addressable (CP500A) codepad
is assigned to Area 1, DIP Switch 1 on the back of
the remote codepad must be in the ON position.
The following locations for Output 1 must be
programmed.
[LOCATION 380 = 6, 381 = 0]
If the CP-5 Area Addressable (CP500A) codepad
is assigned to Area 2, DIP Switch 2 on the back of
the remote codepad must be in the ON position.
The following locations for Output 1 must be
programmed.
[LOCATION 380 = 6, 381 = 1]
Note:
The Master Partitioned Keypad requires setting all
DIP switches to the ON position to operate correctly.
Figure 11: Connections for Two CP-5 Eight Zone
Area Addressable (CP500A)
Codepads
1
1
2
3
4
5 6
1 = Data
2 = CLK
3 = +12 V
4 = GND
5 = Area 1 Codepad
6 = Area 2 Codepad
The following DIP Switch settings and locations
must be programmed for the two CP-5 Area
Addressable (CP500A) codepads to function
correctly.
AREA 1 CODEPAD
DIP Switch 1 on the back of the remote codepad
must be in the ON position. The following
location must be programmed.
[LOCATION 444, Option bit 2 must be enabled]
AREA 2 CODEPAD - (Output 1)
DIP Switch 2 on the back of the remote codepad
must be in the ON position. The following
locations for Output 1 must be programmed.
[LOCATION 380 = 6, 381 = 1]
