2.2 LBB 3310/10 Control and Power Supply Unit with AFS
This model CPSU has additional an Acoustic Feedback Suppression PCB inside.

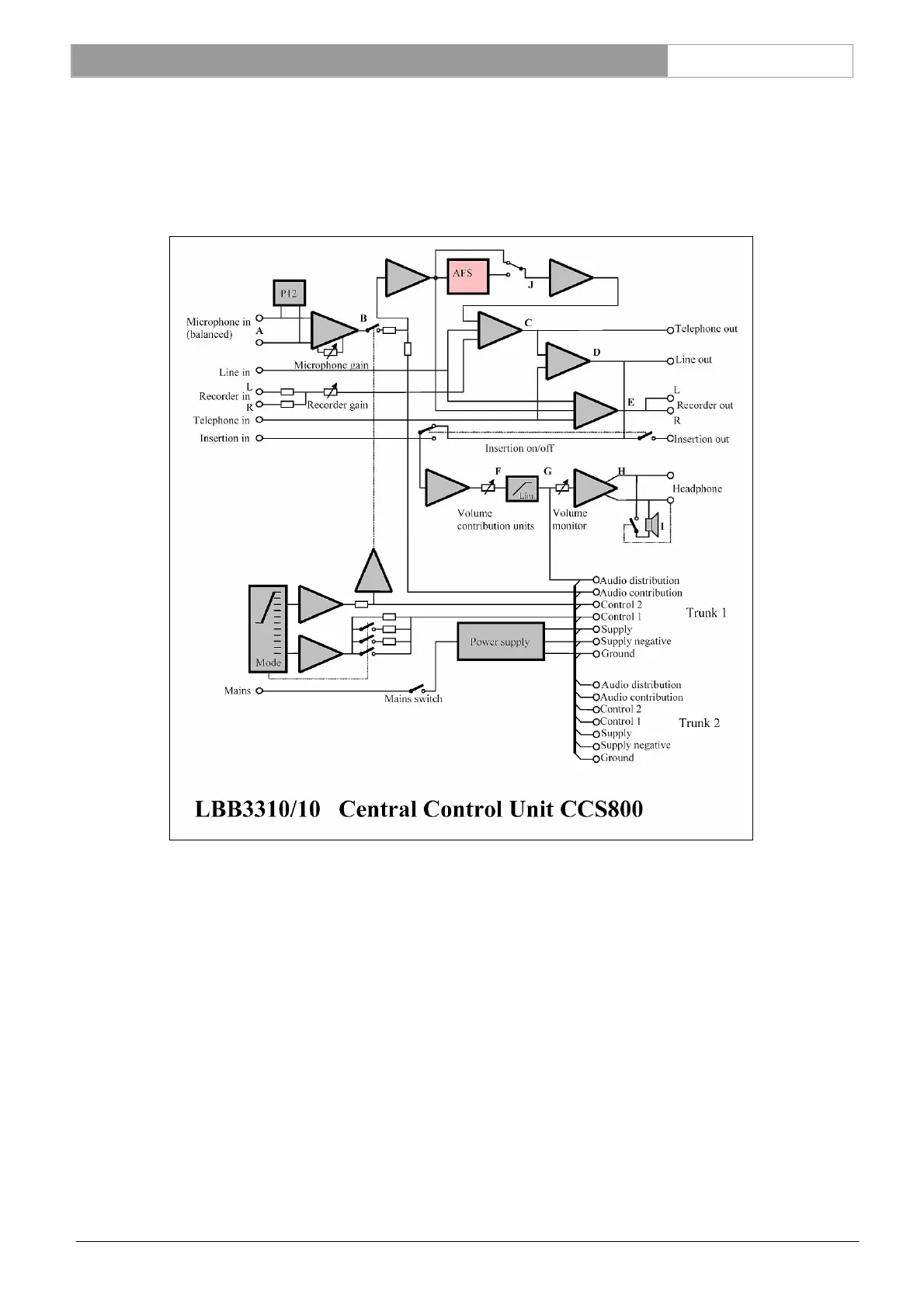

2.2.1 Block diagram CPSU with AFS
