CCS800 | Service manual | Chapter 3 | Controls and indicators en | 16
Bosch Security Systems | 2005-01| 3922 880 21112

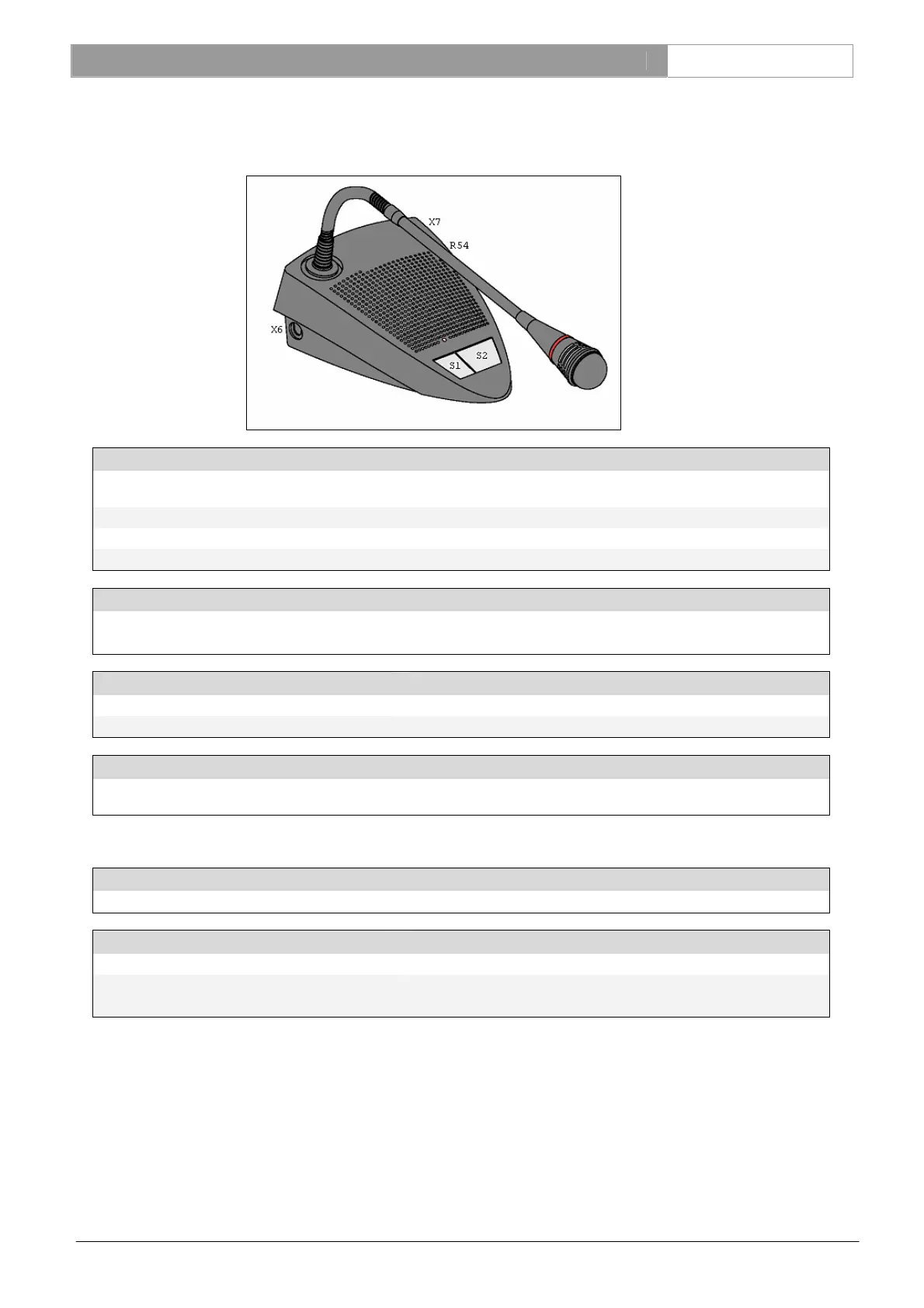

3.2 Delegate and chairman units
Top
Microphone Electret microphone with build-in plop and windshield, mounted on a
flexible stem, complete with a red LED light-ring
Light-ring around the microphone Indicates if microphone is switched ON
Button (S2) Microphone ON button
Red LED Indicates if microphone is switched ON
Rear
Trunk input Cable, 2 meter, with 7-pole DIN-connector.
Trunk output Loop-through output socket, 7-pole DIN.
Side
Thumbwheel (R54) Rotary volume control for headphones.
Headphone jack s(X6/X7) 2 x 3.5 mm stereo jack headphone sockets.
Inside
Adjustment microphone capsule (R72) Potentiometer to adjust the sensitivity of the microphone (Access via
bottom hole. See chapter 5).
Additional for chairman units
Top
Button (S1) Priority function (chime tone)
Bottom
Small bracket at cable entry Hides the priority and chime mode switch (see “Instructions for use”).
2 Switches behind bracket Delegate microphones off at priority (S37)
Chime en-/disable switch (S42)
