CCS800 |
Service manual | Chapter 13 | Illustr
ations
en | 60
Bosch Security Systems
| 2003-50 | 3922 880 21112
13.8

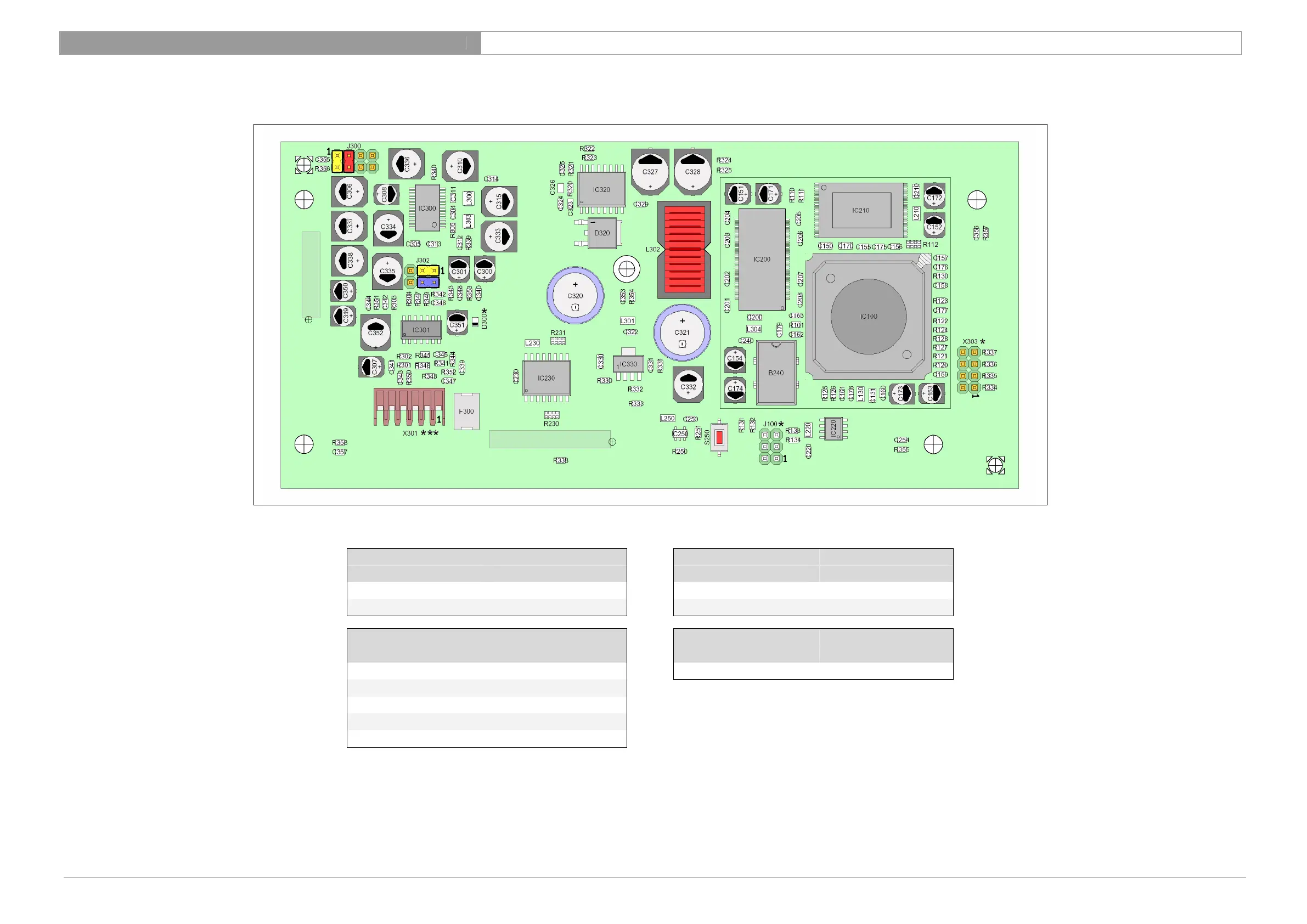

Board layout AFS PCB
13.8.1
Jumpers and connectors
J300
Horizontal placed
J302
Vertical placed
Jumper position
Function
Jumper position
Function
1-3
Input1 CCS800
1-2
Analog audio input
2-4
Input1 CCS800
3-4
Analog audio output
X301
J100 and X303
Pin number
Signal name
1
+VDC
Both
factory
use
2
GND
3
Audio
In
5
Audio Out
4-6
AGND
61
