Bosch D8125 Installation And Operation Guide

D8125 | Installation and Operation Guide | 4.0 Installation
10
Bosch Security Systems B.V. | 2020.04 |F01U036298-15
4.0 Installation
4.1 Installing the enclosure
Follow the procedure below to install the D8125 in the enclosure with the control panel or B600.
1. Align the D8125 POPEX module with any of the four mounting locations in the enclosure. See Figure 2.
2. Use the screws provided with the module to secure it in the enclosure.
Save the POPIT Label Sheets: you will use
these sheets later to label the POPITs. The
D8125 is packaged with two sets of POPIT
label sheets. One is marked for use with
the D9412/D9112. This set is used for Non
G, G, GV2, GV3, GV4, B9512G, and
B8512G. The second set of sheets is used
for D8112G/G2.
Vertical
Mounting
Locations
(Reserved for
Dual Phone Line
Switcher Module)
Horizontal Mounting
Locations

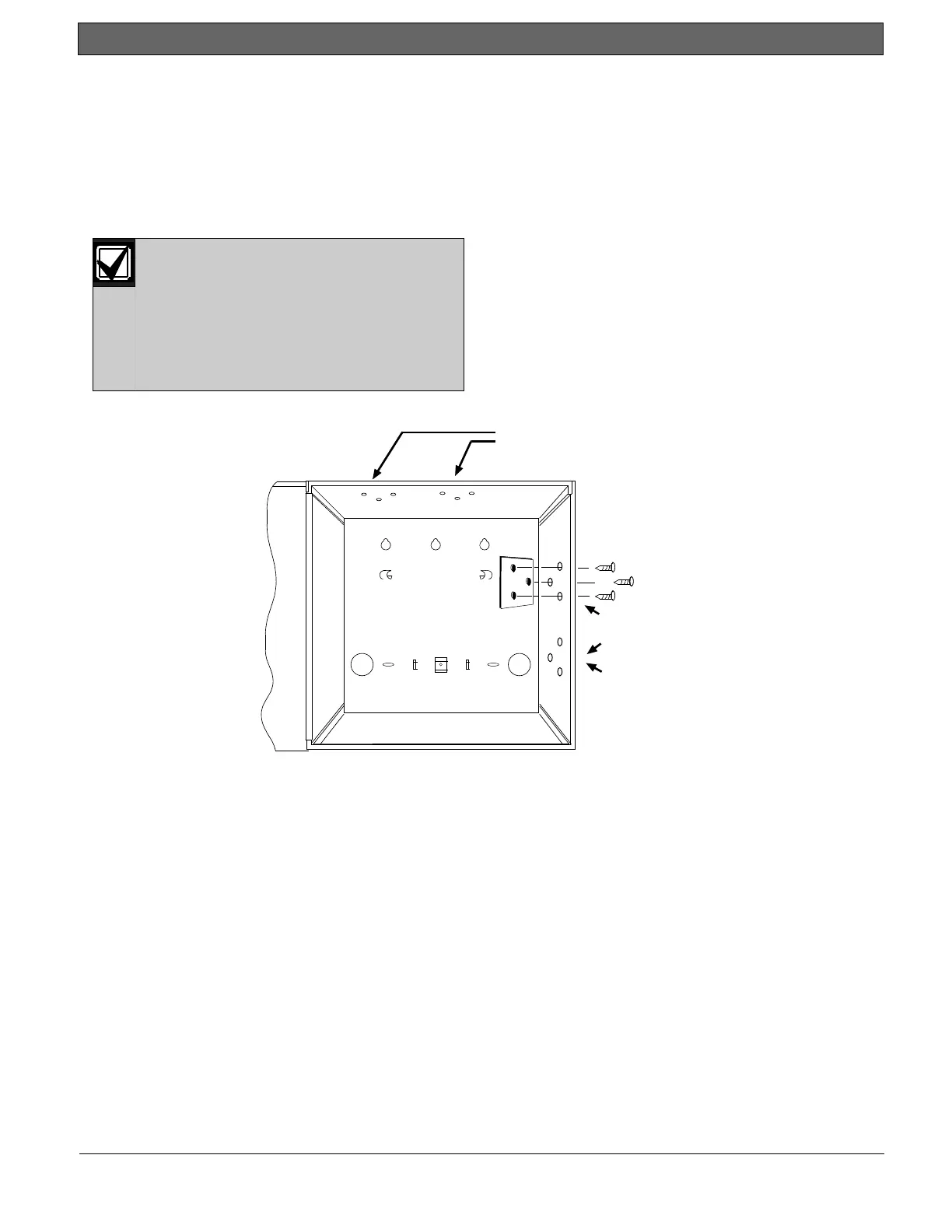

Figure 2: POPEX Installation

Bosch D8125 Specifications

General

Housing color	-
Input voltage	12 V
Connectivity technology	Wired

Weight and Dimensions

Depth	80 mm
Width	130 mm
Height	20 mm
