DS7400XiV4-EXP | Wireless Reference Guide | 6.0 Programming Wireless Devices EN | 26
Bosch Security Systems | 6/05 | 4998154962B
6.0 Programming Wireless Devices
All wireless RF devices (keypads, keyfobs, PIRs, smoke detectors, and contact points) must be programmed into
the control panel before they are recognized.
Each wireless device has a unique ID code attached to the device in the form of a two-part bar code sticker or a
number set. See Figure 3.

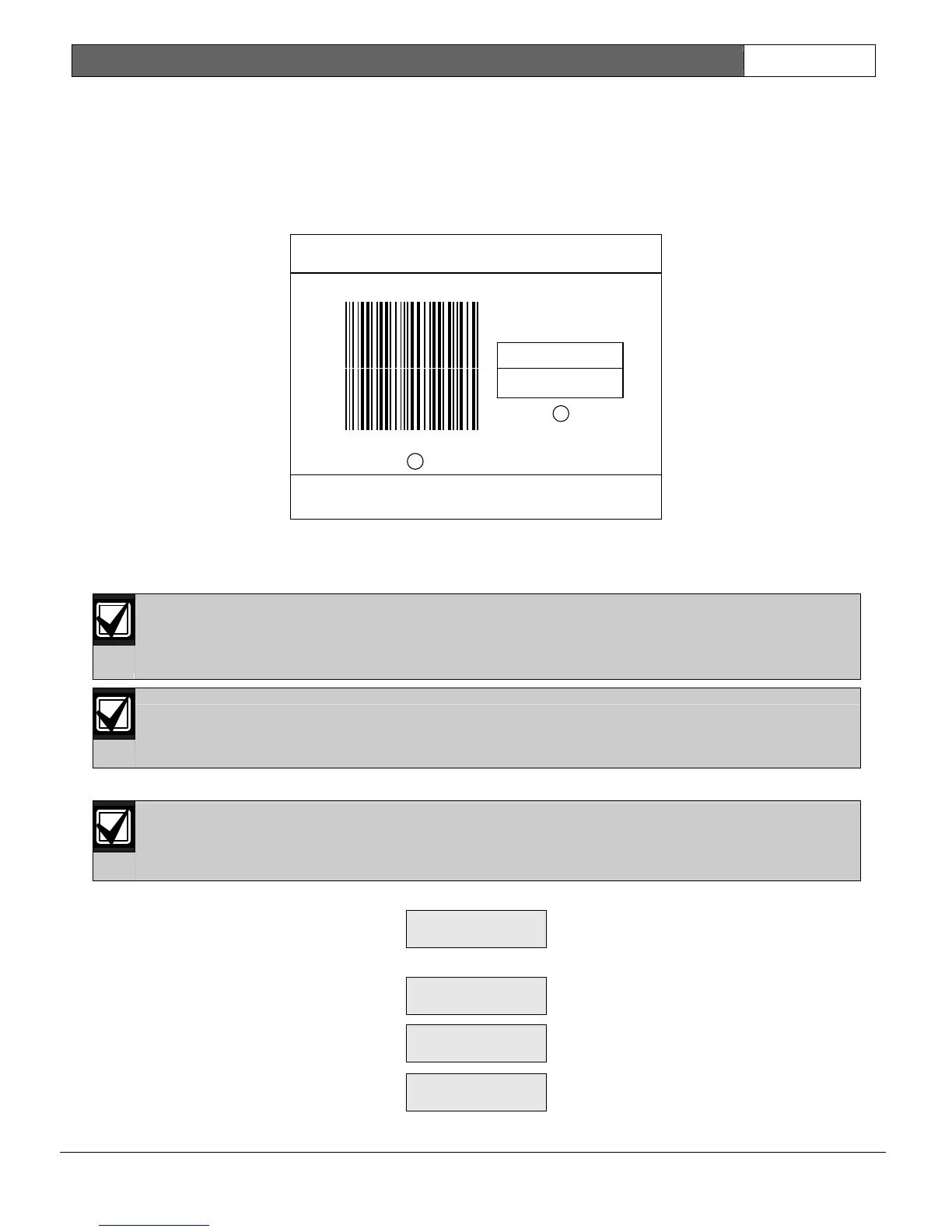

Figure 3: Bar Code Sticker or Number Set
167770187
167770187
167770187
167770187
1
2
1 - Bar code sticker
2 - Number set
Keep one part of the sticker for your records and leave the second part attached to the device.
Use the following procedure to program a wireless device after the control panel is programmed for RF zones:
1. Enter the programmer’s mode by entering the default code followed by [#] [0].
The code for the programmer’s mode is preprogrammed at the factory as 987654. The control panel’s
factory default for PIN length is four digits. Therefore, as the control panel is shipped, the default code for
the programmer’s mode is 9876. However, if you change the PIN length default from four digits to six
digits, the programmer’s mode default code changes to 987654.
You can exit the programming mode at any time by pressing and holding the [*] key for two seconds. If no
keystrokes are detected for thirty minutes, the control panel automatically exits programmer’s mode.
2. Enter the RF programming mode by pressing [9] [9] [9] [0] [#].
If you make an entry mistake while in RF programming mode, you can clear the mistake by pressing the [*]
key twice.
Exit RF programming mode by pressing [Off].
3. If no RF zones are programmed into the control panel, the following message displays:
No RF Zones
Press Off
4. If the control panel is programmed with RF zones, the RF Installer’s Menu appears:
Add RF Zone?
Press 1
Test RF Zone?
Press 2
Remove RF Zone?
Press 3
To Next Page
