29
- Switch on load resistance (31).
i Key (31) and key 5 (31) can be switched on
individually.
i keys 1 + 2 + 3 + 4 (31) can only be switched on if key
(31) is switched on.
i The load resistor can only switched on if a connection has
been established between the terminal (21) and
the required terminal +6V, +12V or +24V (22).
- Increase load at least until the prescribed load current has been
reached.

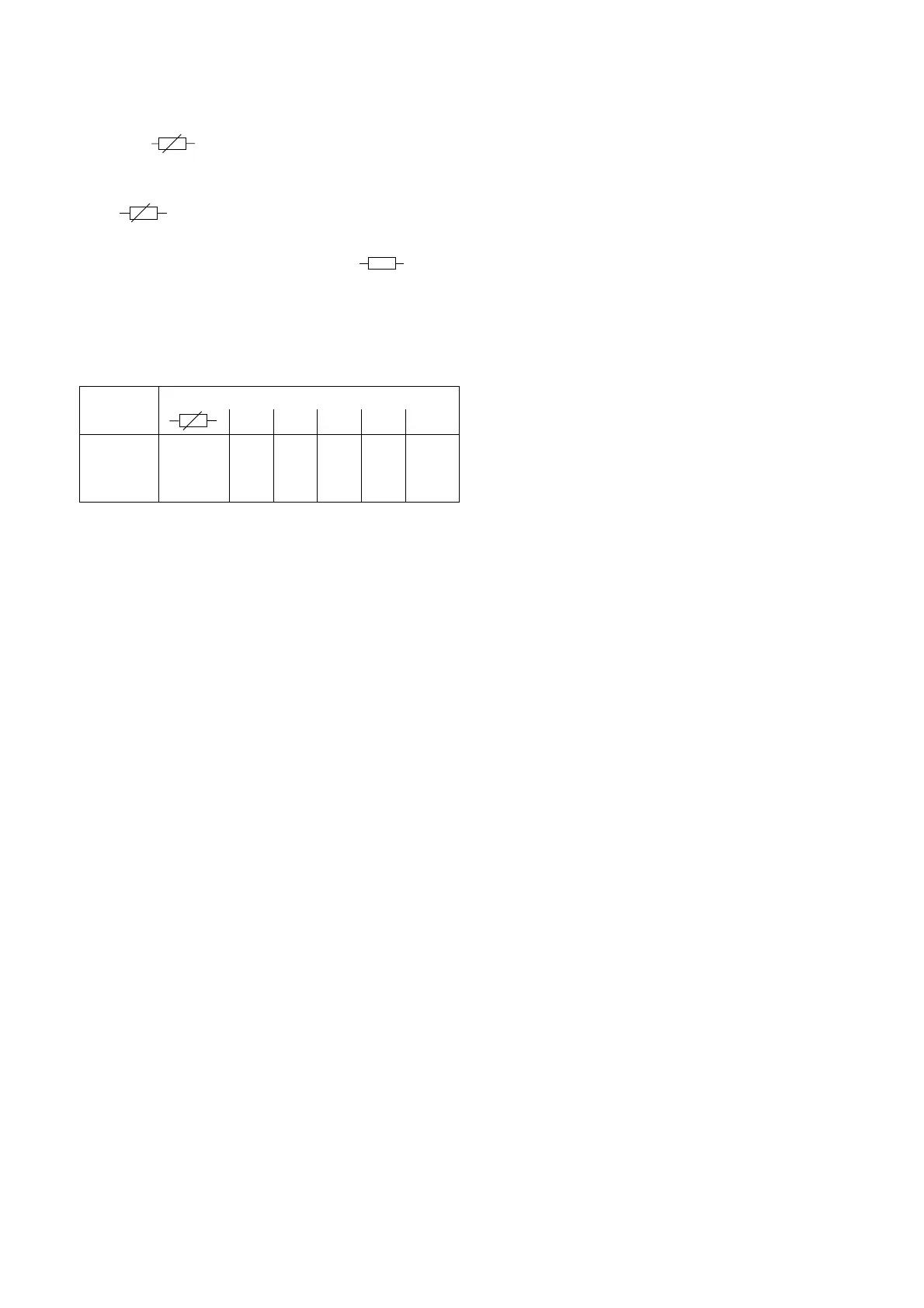

Guide values for load currents:
Generator Load resistance
voltage 1 2 3 4 5
7 V 1,5 - 6 A 5 A 6 A 6 A 6 A 30 A
14 V 3 - 12 A 9 A 12 A 12 A 14 A 58 A
28 V 6 - 23 A 19 A 23 A 23 A 28 A 115 A
- Read off test values from the instruments (40, 41, 42, 43)
- After test actuate the key AKKU MINUS (29).
LED off!
Indicator lamp (28) off.
! Otherwise battery may discharge!
i It is not possible to provide test values and test instructions
due to the broad range of manufacturers, types and
performance ratings available on the market.
Request the appropriate test instructions from the respective
vehicle or assembly manufacturer.
