40 A4VSO Series 10, 11 and 30 | Axial piston variable pump

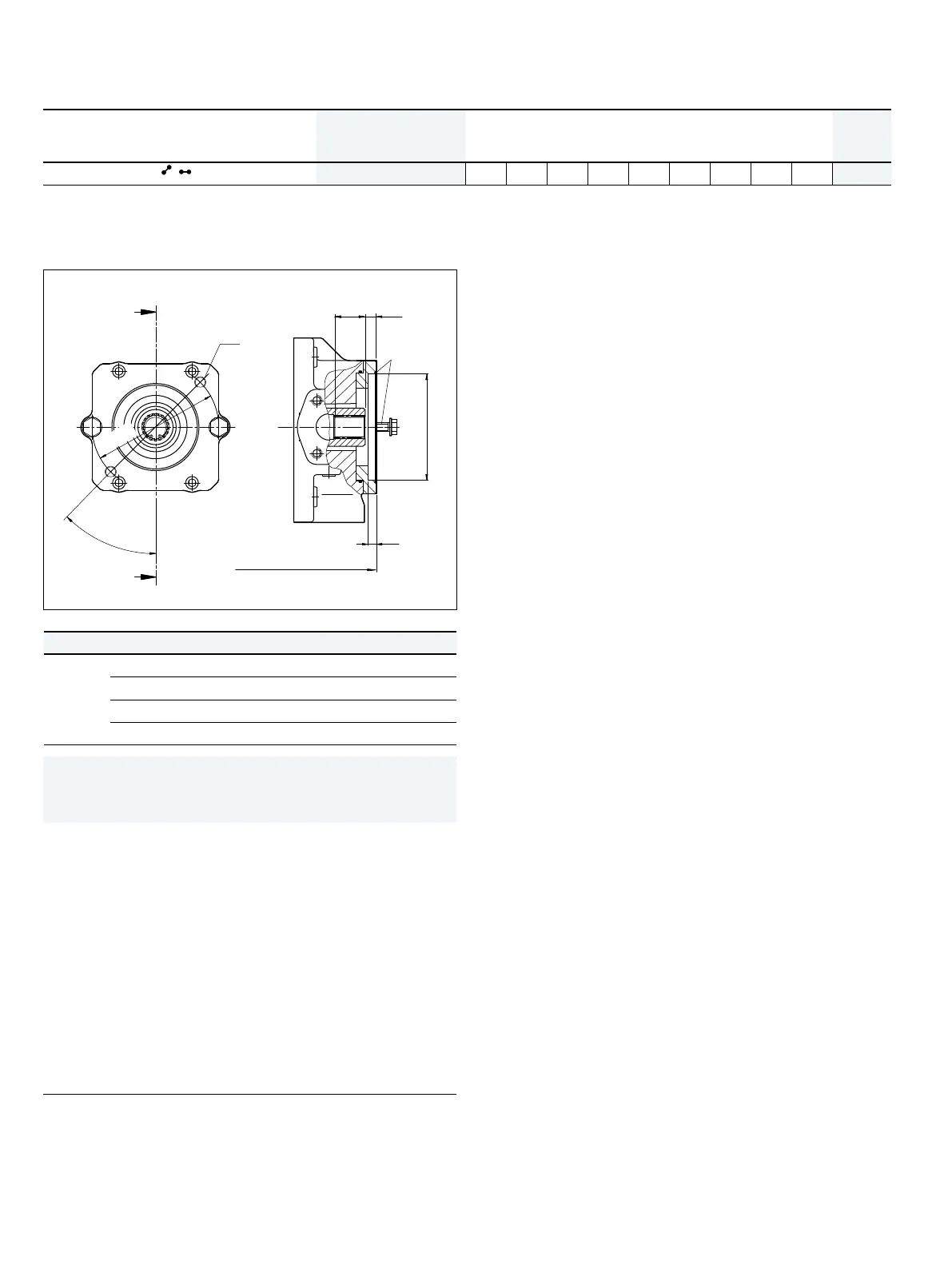

Dimensions, through drive
Dimensions [mm]
Flange ISO3019-2 (metric) Hub forsplined shaft
2)
Code
Diameter Symbol Diameter 40 71 125 180 250 355 500 750 1000
125-2
,
1 1/2in 17T 12/24DP
– – ● ● ● ● – – –
UB6
● = Available ○ = On request ‒ = Not available
▼ 125-2
A1 (to mounting flange)
Section M-N
N
1)
45º
A7
A3
A2
M
A4
ø125
+0.05
+0.02
ø180
UB6 NG A1 A2 A3 A4 A7
3)
125 369 10.4 50 9 M16; 22 deep
180 393 10.4 50 9 M16; 22 deep
250 453 12.5 55 9 M16; 22 deep
355 482 12.5 55 9 M16; 22 deep
Notice
All attachment pumps must match the ATEX classification
for the application in question.
1) Mounting bolts and O-ring seal are included in the scope of
delivery
2) Involute spline according toANSIB92.1a, 30° pressure angle,
flatroot, side fit, tolerance class5
3) Thread according to DIN 13, see Part I for maximum tightening
torques.
