RE 92050-01-X-B2/2019-08-23, BoschRexrothAG

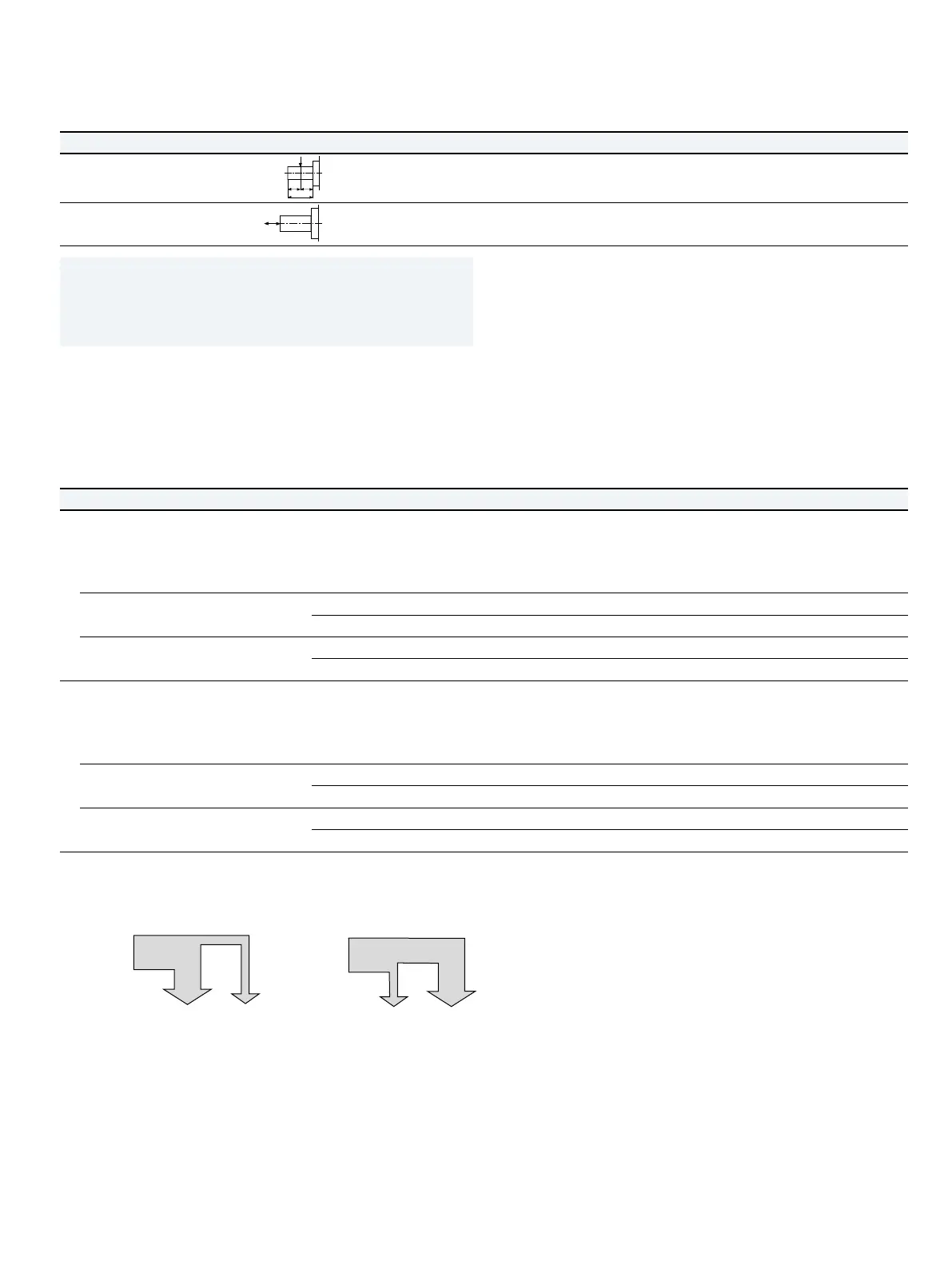

9 Axial piston variable pump | A4VSO Series 10, 11 and 30
Technical data
Permissible radial and axial loading of the drive shaft
Size NG 40 71 125 180 250 355 500
Maximum radial force ata/2
± F
q max
N 1000 1200 1600 2000 2000
2200 2500
Maximum axial force
Fax
±
+ F
ax max
N 600 800 1000 1400 1800
2000 2000
Notice
▶ The values given are maximum values and do notapply
tocontinuous operation. For drives with radial loading
(pinion, V-belt drives), please contact us!
Permissible drive and through-drive torques
The axial piston unit can be delivered with a through
drive, as shown in the type code on page 2.
The through drive version is identified by the
codeK/U31...35.
Size 40 71 125 180 250 355 500
Splined shaft
Maximum permissible overall drive torque
on shaft of pump1
(pump 1 + pump 2)
T
tot max
Nm 446 790 1392 2004 2782 3952 5566
A Permissible through-drive torque
T
D1 max
Nm 223 395 696 1002 1391 1976 2783
T
D2 max
Nm 223 395 696 1002 1391 1976 2783
B Permissible through-drive torque
T
D1 max
Nm 223 395 696 1002 1391 1976 2783
T
D2 max
Nm 223 395 696 1002 1391 1976 2783
Shaft key
Maximum permissible overall drive torque
on shaft of pump1
(pump 1 + pump 2)
T
tot max
Nm 380 700 1392 1400 2300 3557 5200
A Permissible through-drive torque
T
D1 max
Nm 223 395 696 1002 1391 1976 2783
T
D2 max
Nm 157 305 696 398 909 1581 2417
B Permissible through-drive torque
T
D1 max
Nm 157 305 696 398 909 1581 2417
T
D2 max
Nm 223 395 696 1002 1391 1976 2783
Distribution oftorques
T
Ges
T
D1
T
D2
A
T
D1
T
D2
T
Ges
B
Single pump with through drive
If no further pumps are to be mounted at the factory,
thenthe simple type designation is sufficient.
The scope of delivery includes:
▶ For all through drives: coupling, fixing screw, seal and
if applicable an intermediate flange
It is advisable to couple no more than three single pumps
in series.
All attachment pumps must match the ATEX classification
for the application in question.
Combination pumps
Independent circuits are available for the user when
further pumps are built on.
If the combination pump comprises 2 Rexroth axial piston
pumps and if this is supplied pre-assembled, the two type
designations are to be linked with "+".
Order example:
A4VSO125DR/30R–APB25U33 +
A4VSO71DR/10R–AZB25N00
Fq
a
a/2
a/2
