Bosch Rexroth VT-VSPA2-1-2X/V0/T5 User Manual

S+ Gw- S-Gw+
J7
J4
J9
J8
VSPA2
-1
v
wI
T
Zw
w1
w2
w3
w4
t1
t2
t3
t
4
t5
0 1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4Q
J5
J1
f
J6
J3
J2
J10

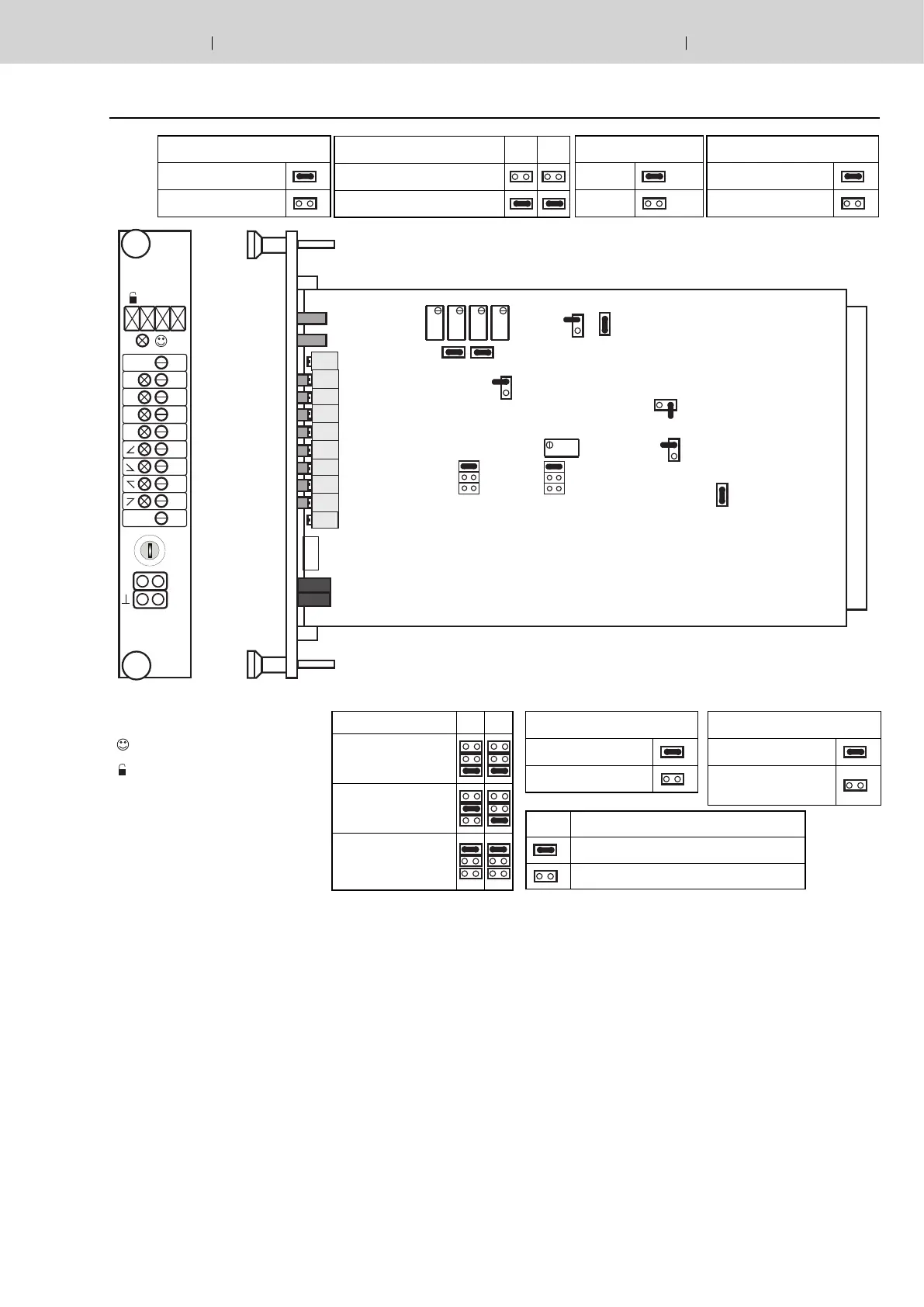

Display / adjustment element T5
Hydraulics Bosch Rexroth AGRE 30110/05.12 VSPA2-1-2X
9/10
Potentiometer (partially with LED display):
Zw Zero point alignment adjustable on the board:
w1 Command value 1 Gw+
Amplitude attenuation for positive command values
w2 Command value 2 Gw– Amplitude attenuation for negative command values
w3 Command value 3 S+ Jump heights for a positive direction
w4 Command value 4 S– Jump heights for a negative direction
t1 Ramp time 1 f Clock frequency output stage
t2 Ramp time 2
t3 Ramp time 3
t4 Ramp time 4
t5 Ramp time 5
Adjusting the locked potentiometers invalidates any guarantee claims!
J7 max. current setting
4WRZ…7X
•
4WRA…2X
3DREP…2X
J2 ramp function
Off
On
•
J5, J6 clock frequency J5 J6
4WRA6 2X
4WRA10 2X
Universal,
4WRZ…7X
3DREP…2X
•=
Factory jumper setting
=
Jumper closed
=
Jumper open
LED displays:
Operational (green)
Enable (yellow)
–1
External inversion
Measurement sockets:
I, w, t Measurement signal
⊥ Measurement zero
(For further information see
document 30110-B)
J3 ramp time
0.2 to 50 sec.
0.02 to 5 sec.
•
J4 jump function
Off
On
•
J1 inversion
Inverted
Not inverted
•
J8, J9 jump height J8 J9
4WRA6 and 10…2X
4WRZ…7X, 3DREP…2X
•
