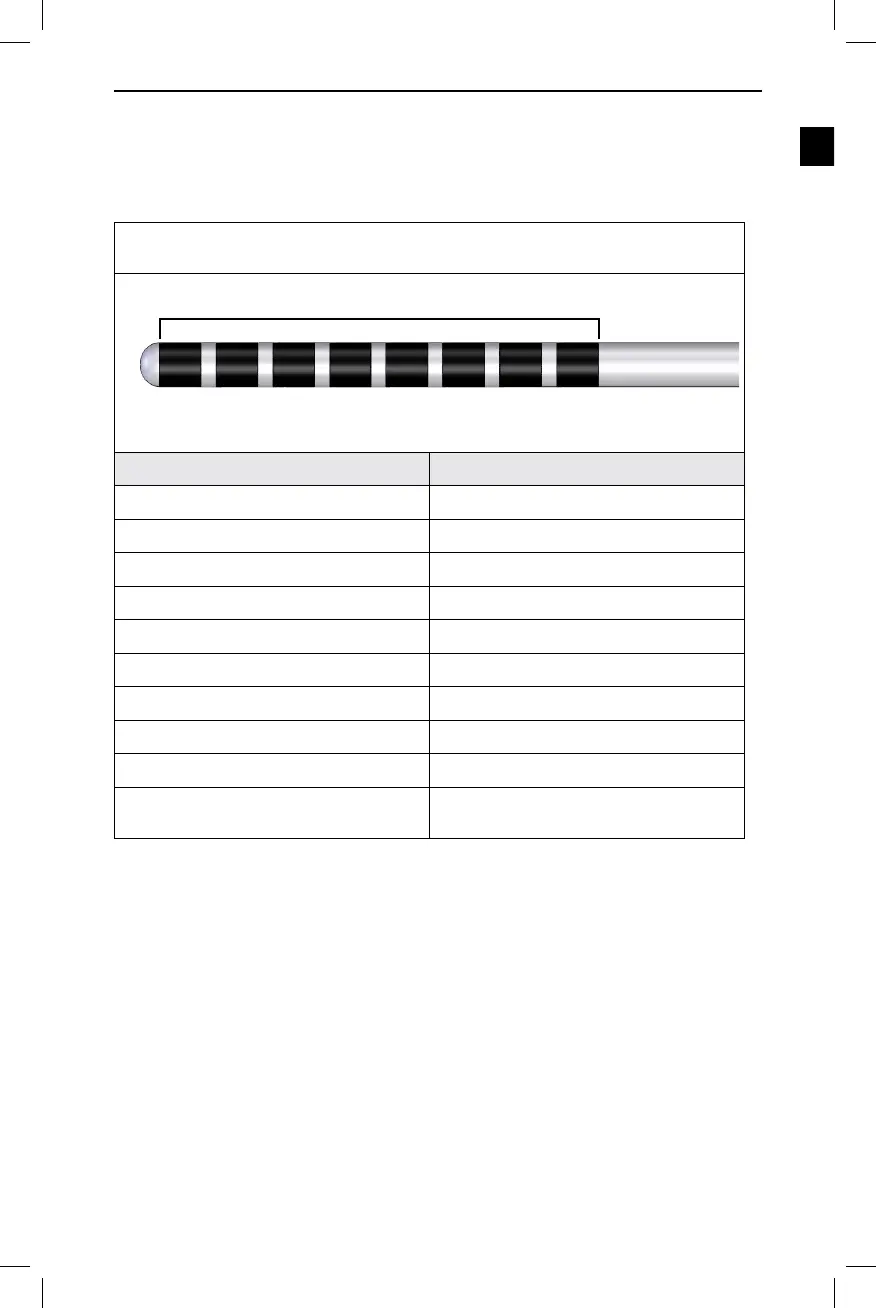

Standard Lead
The Standard Lead consists of 8 cylindrical Contacts. The diameter of the Lead is 1.3 mm. The
Lead is compatible with existing commercially available DBS implantation tools.
Table 16: Technical Specications
Standard Lead (DB‑2201)
Feature Specication
Contact Length 1.5 mm
Contact Surface Area 6.0 mm
2
Contact Spacing (axial) 0.5 mm
Array Span 15.5 mm
Distal Contact to Tip Length < 1.3 mm
Lead Diameter 1.3 mm
Overall Length 30 cm or 45 cm
Outer Tubing Material Polyurethane
Contact Material Platinum/Iridium
Impedance
≤ 90 Ω (measured from each connector to
corresponding electrode Contact)
Array Span
(15.5 mm)
