Connecting to the IPG
When connecting the Lead Extension to the IPG, it is recommended that the following connection
congurations are utilized.
2‑Port (16 Contact) IPG
For dual 8 Contact Lead connection with the bifurcated Lead Extension DB‑3128 to the
2‑Port IPG:
7
a. Connect the left hemisphere Extension tail with the gold marker band to port L (or C)
(Figure 35).
L

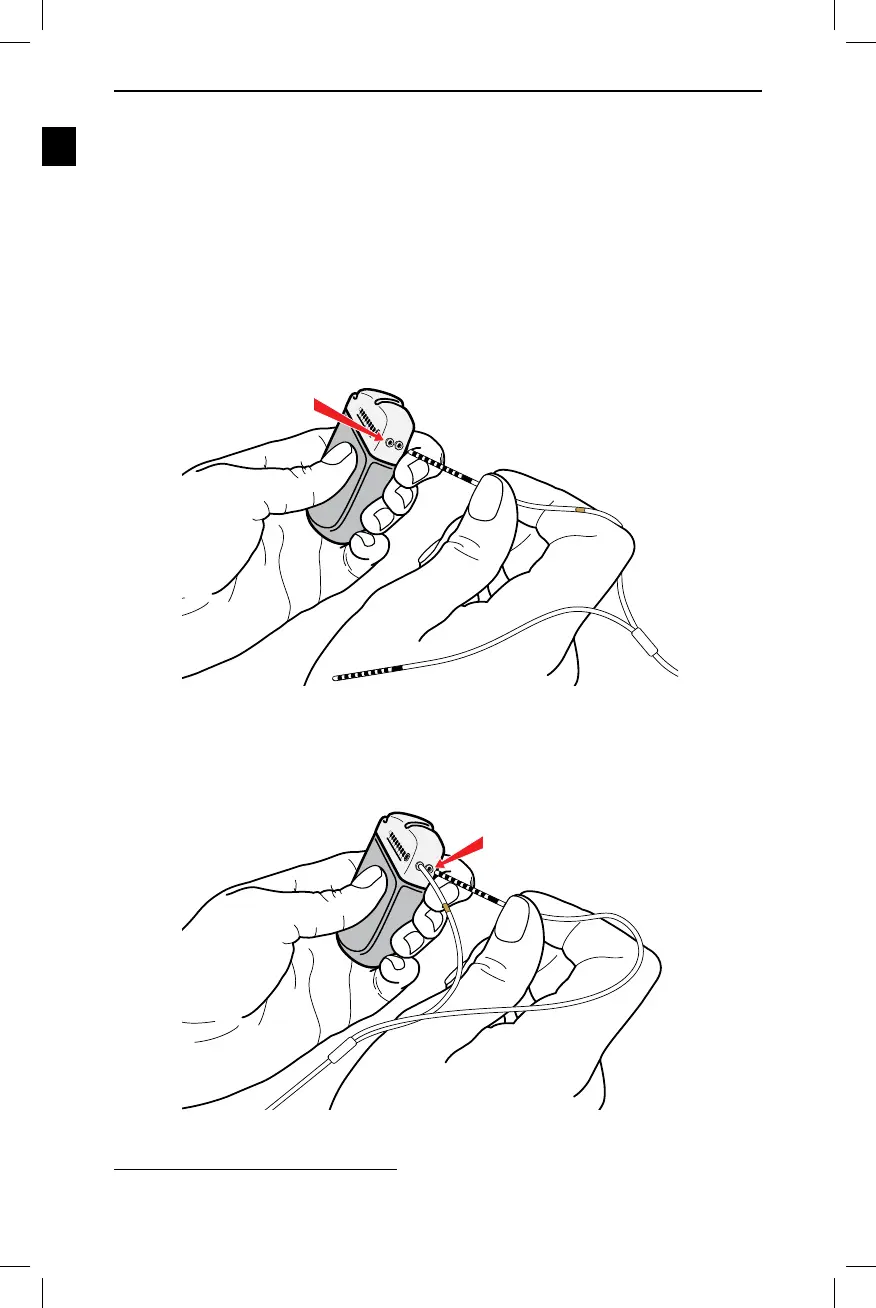

Figure 35. Connection to IPG Port L
b. Connect the right hemisphere Extension tail with no marker band to port R (or D)
(Figure 36).
R
Figure 36. Connection to IPG Port R
7 DB-3128 is a 2x8 Extension and can connect up to two (2) 8 Contact DBS Leads to a 2-Port/16 Contact IPG.
