Implanting the DBS System
Surgical Implant Manual
92495783-02 Page 47 of 1157
For dual 8 Contact Lead connection with the Lead Extension NM‑3138‑55 to the 2‑Port IPG:
8

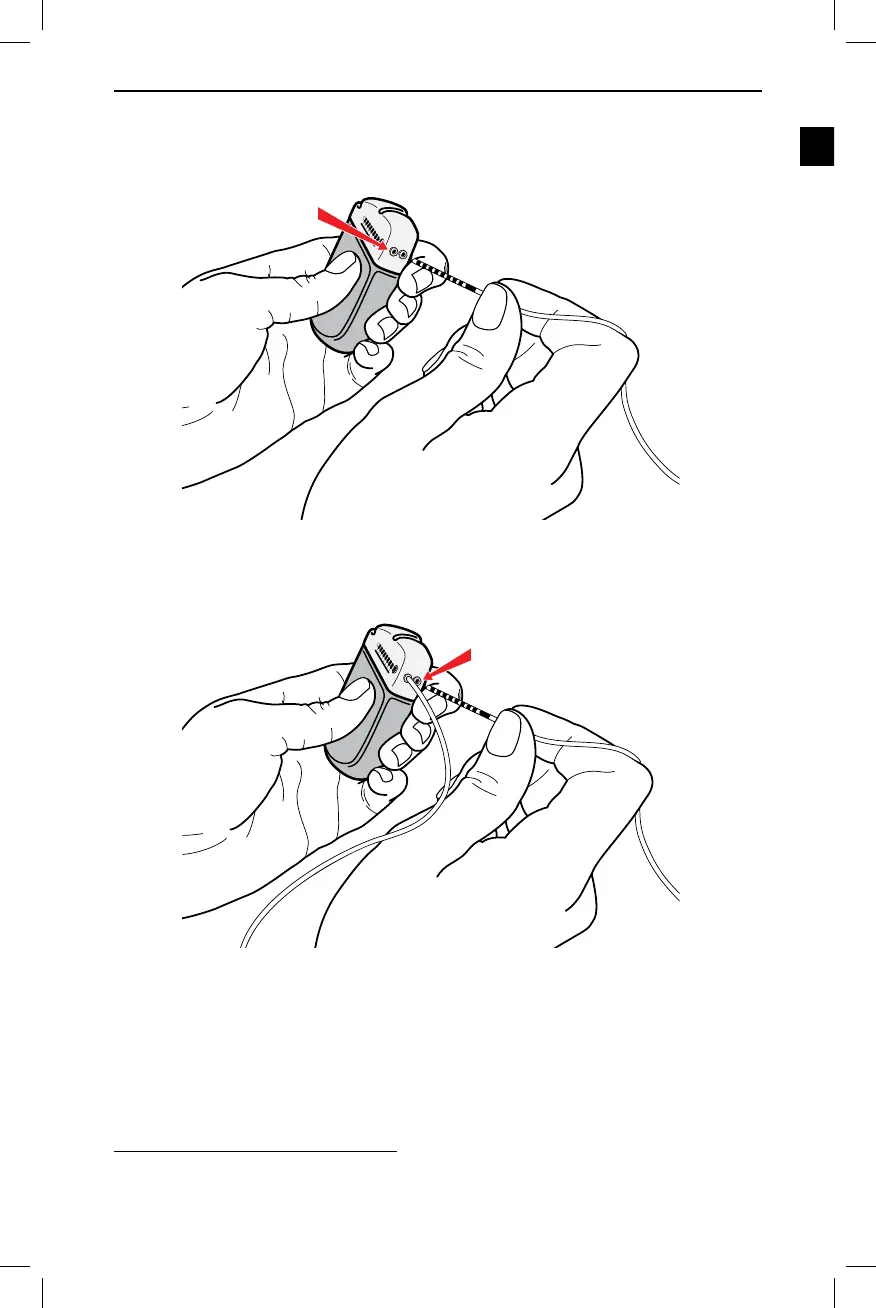

a. Connect the left hemisphere Extension to port L (or C) (Figure 37).
Figure 37. Connection to IPG Port L
b. Connect the right hemisphere Extension to port R (or D) (Figure 38).
Figure 38. Connection to IPG Port R
8 NM-3138-55 Extension can connect one (1) 8 Contact DBS Lead to one port of a 2-Port/16 Contact IPG. Two
NM-3138-55 Extensions are required to connect two (2) 8 Contact DBS Leads to the IPG.
