External Trial Stimulators (ETS 2 and ETS 3)
The ETS, OR Cable, along with Clinician Programmer (CP) or Remote Control are used to conduct
intraoperative test stimulation and/or intraoperative impedance measurements during the DBS
surgical procedure. See the “DBS Product Compatibility” section of this manual.

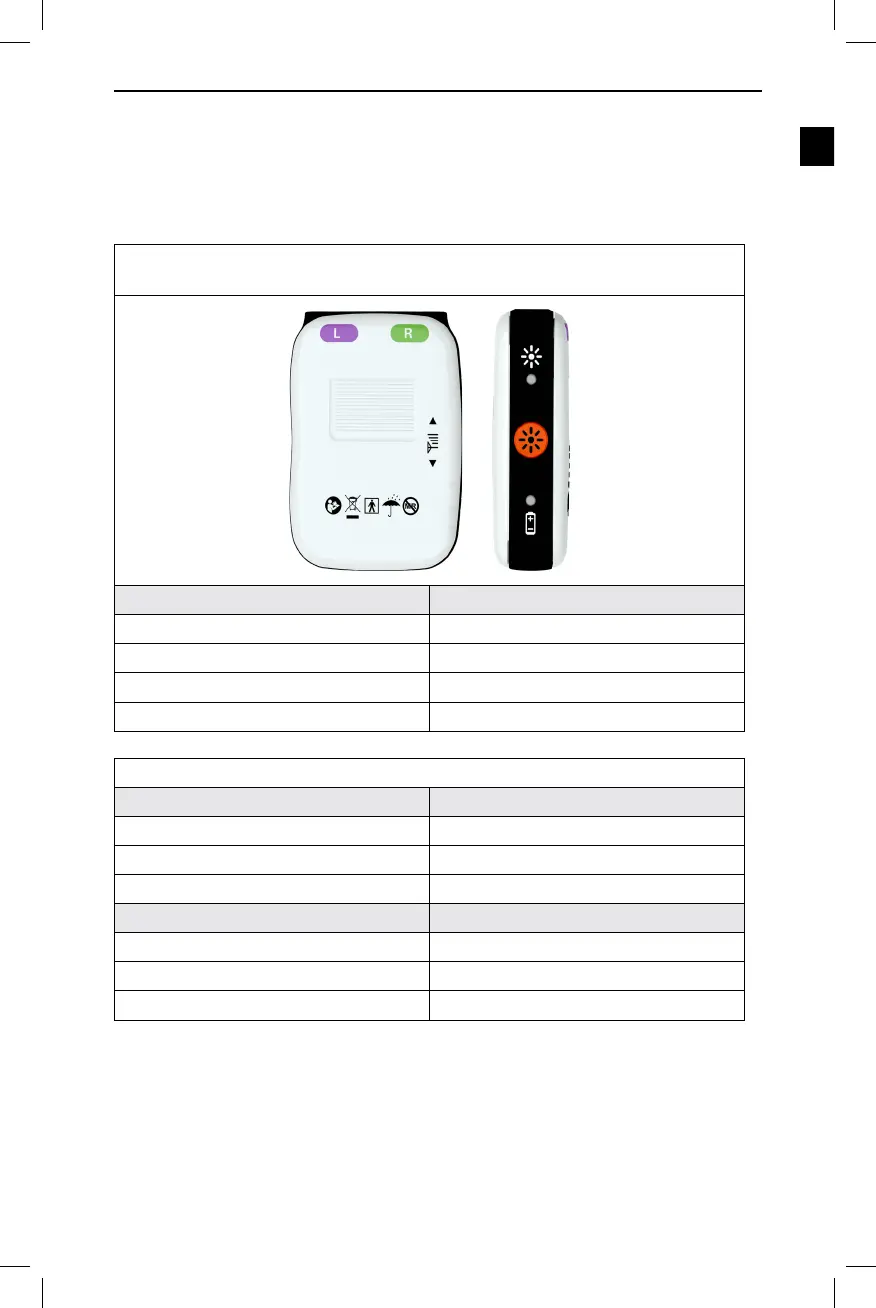

Table 25: Physical Characteristics
ETS 2 (DB‑5132) and ETS 3 (DB‑5170)
Feature Specication
Dimensions 80 mm x 60 mm x 26 mm
Case Material Silicone and Plastic
Number of Ports 2
Replacement Batteries 2 AA Batteries
Table 26: ETS Indicator Lights
Stimulator Light Description
Solid Green ETS is ON
Flashing Green Stimulation is ON
Solid Yellow Error
Battery Indicator Light Description
Solid/Flashing Green ETS is ON
Flashing Yellow Replace the batteries in the ETS
Alternating Green and Yellow (ETS 3 Only) The ETS is in Pairing Mode
