Directional Leads
The 8 Contact Directional Leads (see Table 17) have rows of Contacts that are segmented
circumferentially to allow both axial and rotational stimulation selectivity. Each segmented Contact
covers 90 degrees of the Lead circumference. Each Directional Lead has a radiopaque marker
whose solid portion aligns with Contact 2. The outer diameter of each Directional Lead is 1.3 mm.
The Directional Leads are compatible with existing commercially available DBS implantation tools.
Table 17: Technical Specications
8 Contact Directional Lead (DB‑2202, Cartesia
TM
)
Feature Specication
Contact Length
1
1.5 mm
Ring Contact Surface Area 6.0 mm
2
Segmented Contact Surface Area 1.5 mm
2
Dome Tip Contact Surface Area 6.0 mm
2
Contact Spacing (axial) 0.5 mm
Array Span 7.5 mm
Lead Diameter 1.3 mm
Overall Length 30 cm or 45 cm
Outer Tubing Material Polyurethane
Contact Material Platinum/Iridium
Impedance
≤ 90 Ω (measured from each connector to
corresponding electrode Contact)
1 Also applies to dome tip Contact.

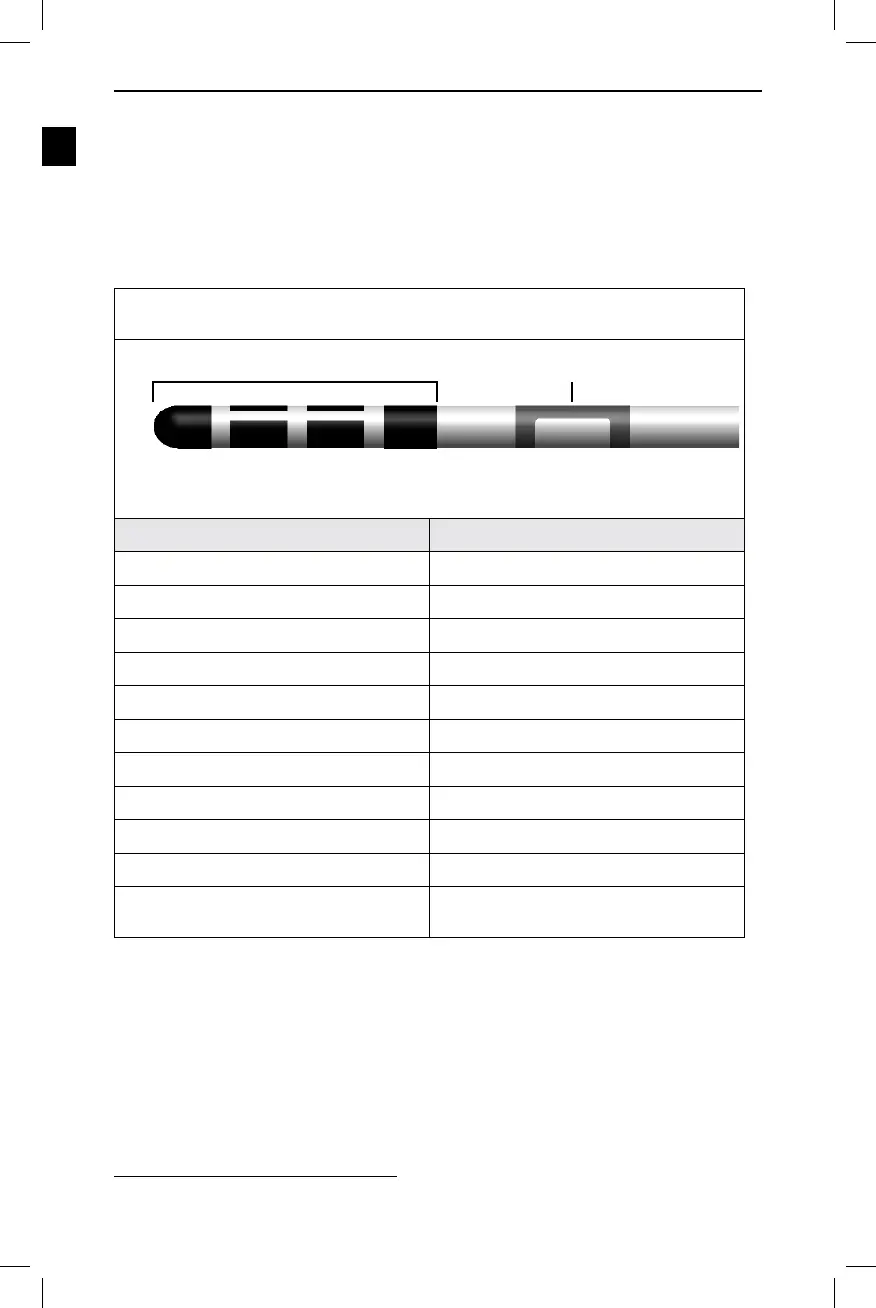

Array Span
(7.5 mm)
Radiopaque Marker
