11 Technical specifications
100 ARC 300 / ARC 350 Operating manual 900-350_IFU_V2.6_10296-S13-20100111-EN
Setting Program
Local Anesthesia Spray COAG 8
Measurement of resistances

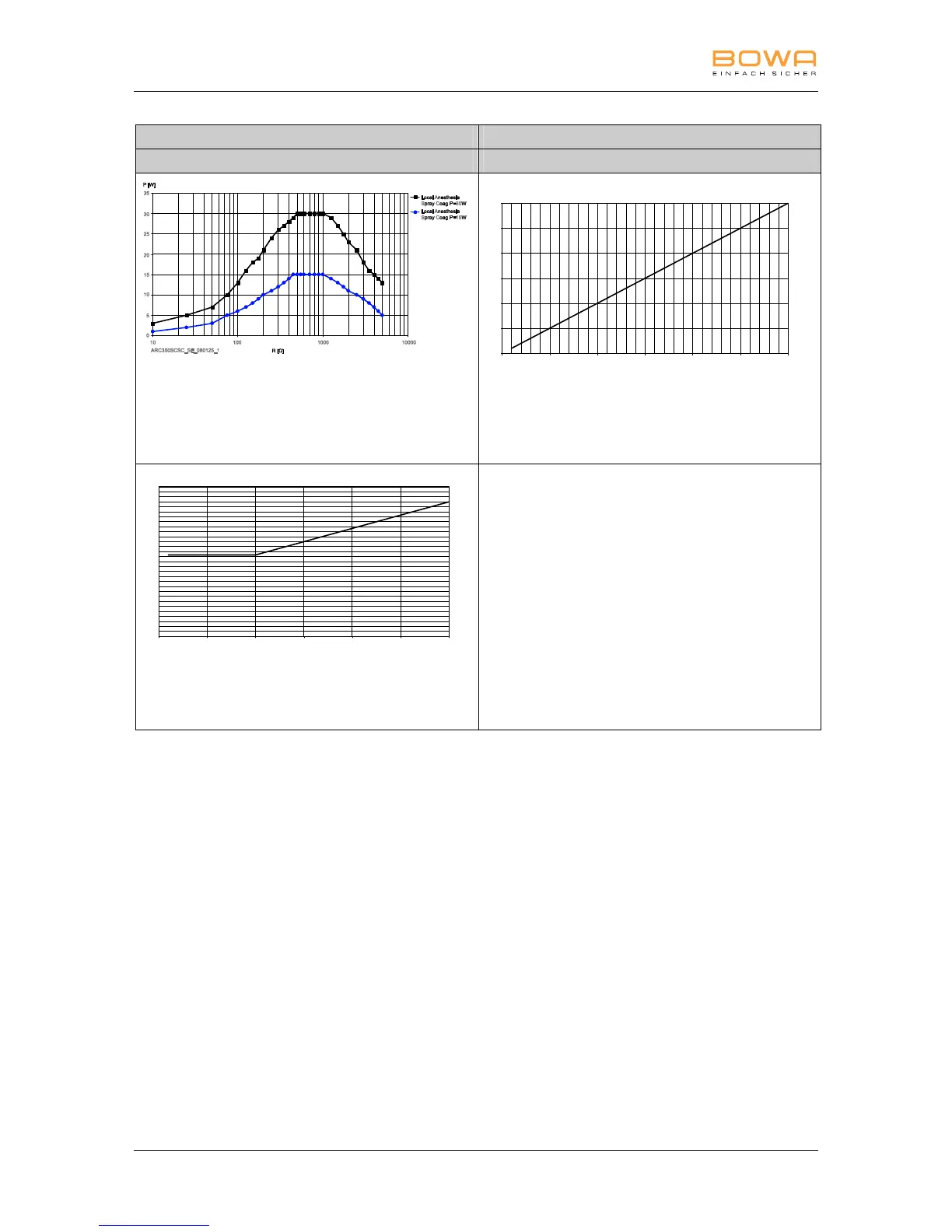

• Diagram of power output P [W] as a
function of the load resistance R [Ω] for
the setting “Local Anesthesia Spray
COAG” = 30 W/15 W
ARC350SCSC_SE_080125_2
0
5
10
15
20
25
30
0 5 10 15 20 25 30
displayed value
P [W]
• Diagram of power output P [W] as a
function of the “Local Anesthesia Spray
COAG”. Measured load resistance =
500 Ω
ARC350SCSC_SE_080125_3
0
500
1000
1500
2000
2500
3000
0 5 10 15 20 25 30
displayed value
U [Vp]
• Diagram of HF output voltage U [Vp] as
a function of the “Local Anesthesia
Spray COAG” setting (idle mode)
