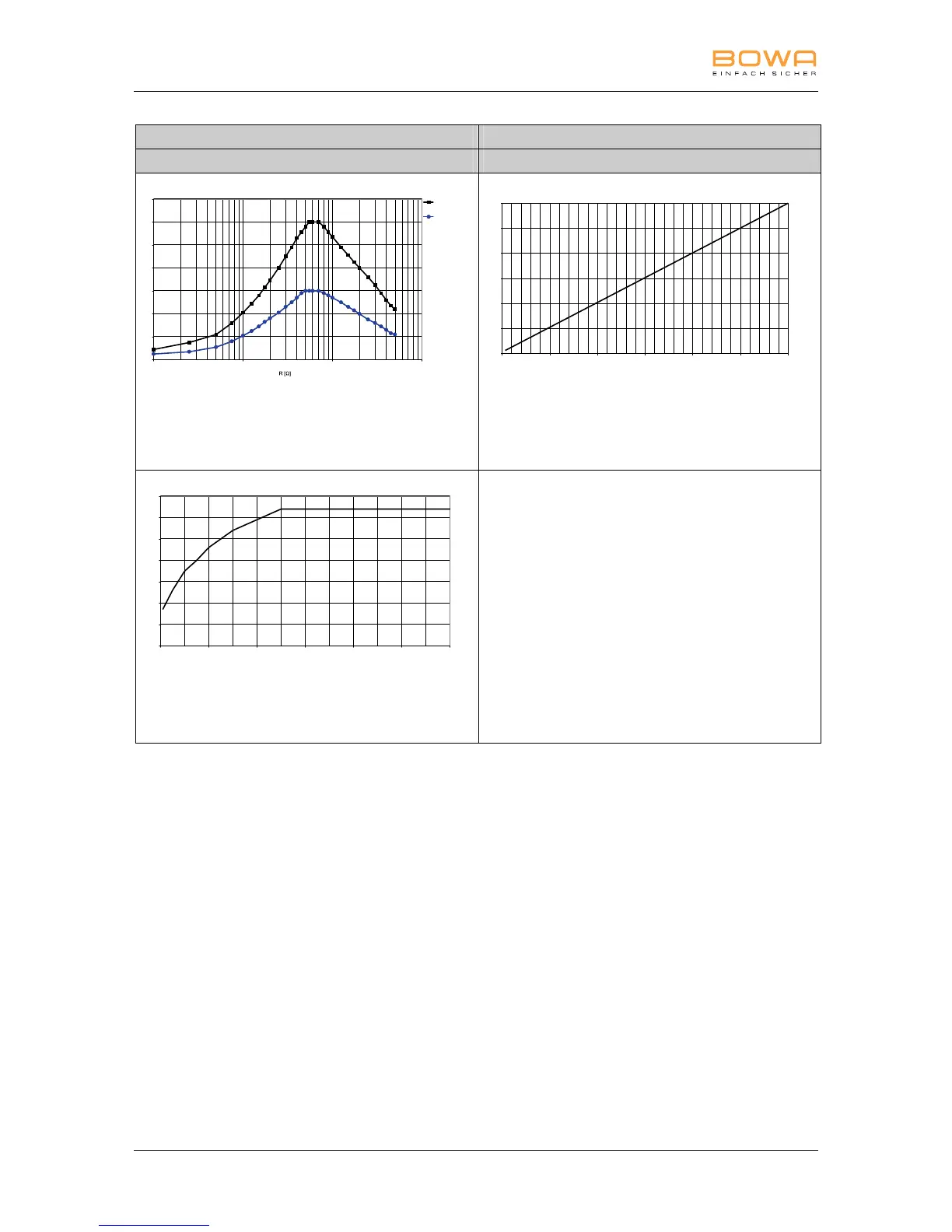

11 Technical specifications
86 ARC 300 / ARC 350 Operating manual 900-350_IFU_V2.6_10296-S13-20100111-EN
Setting Program
SimCOAG 13
ARC350SCOAG_SE_080125_1
0
20
40
60
80
100
120
140
10 100 1000 10000
P [W]
SimCOAG
P=60W
SimCOAG
P=120W
Measurement of resistances
• Diagram of power output P [W] as a
function of the load resistance R [Ω] for
the setting “SimCOAG” = 120 W/60 W
ARC350SCOAG_SE_080125_2
0
20
40
60
80
100
120
0 20 40 60 80 100 120
displayed value
P [W]
• Diagram of power output P [W] as a
function of the “SimCOAG” setting.
Measured load resistance = 500 Ω
ARC350SCOAG_SE_080125_3
0
500
1000
1500
2000
2500
3000
3500
0 20 40 60 80 100 120
displayed value
U [Vp]
• Diagram of HF output voltage U [Vp] as
a function of the “SimCOAG” setting
(idle mode)
