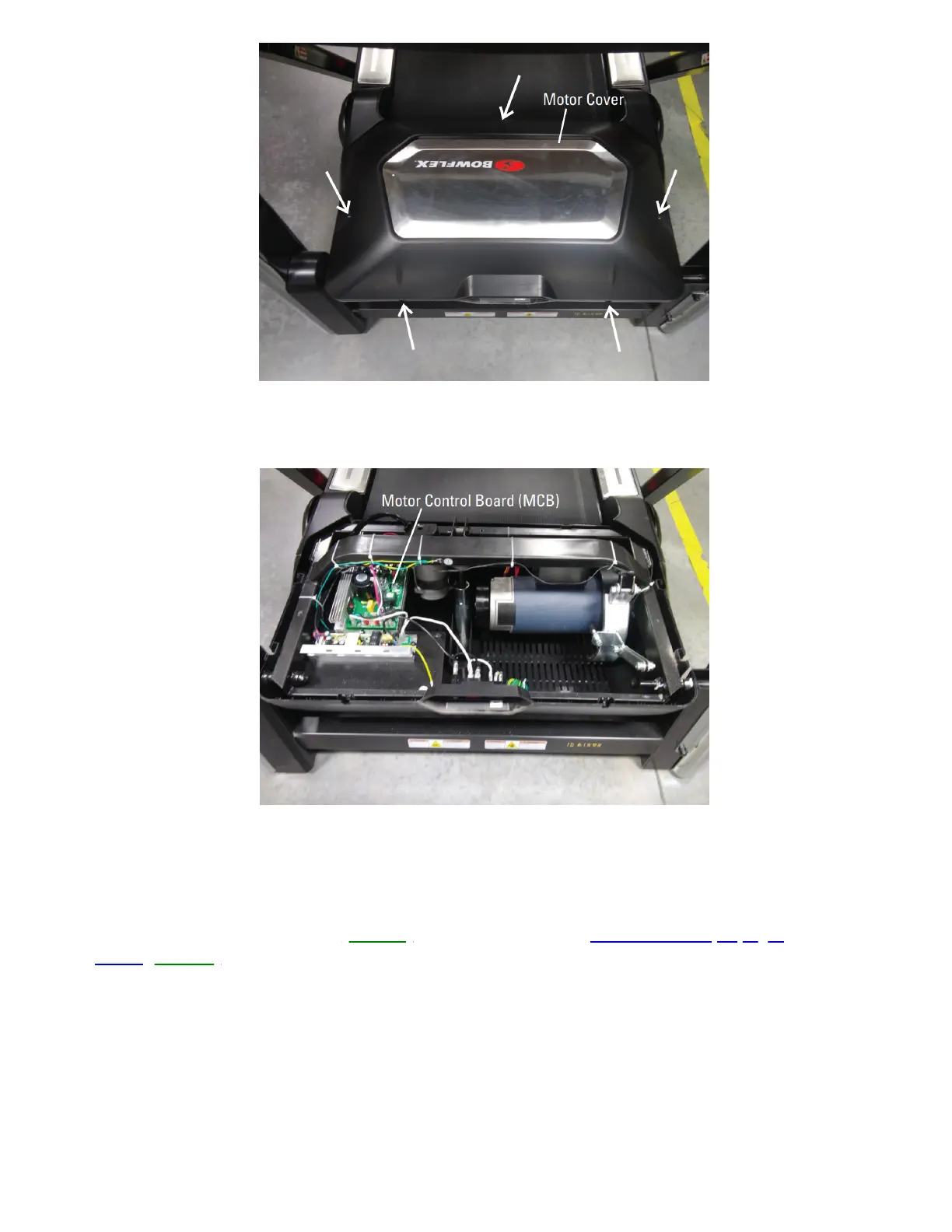

The white arrows indicate the locations of the screws to remove to take the motor and MCB cover off.
(Reference 2.2)
The motor control board (MCB) is shown on the left side of the image.
6. If the issue persists, remove the right base shroud (reference 2.3) and inspect the white 6-pin connector. Unplug the
white 6-pin connector and check for damage to the connector or cable. If undamaged, firmly reconnect the cable,
ensuring the connector is oriented properly; the tabs on top should line up and audibly click into place when firmly
connected. Test if the issue persists[11401.I]. If the cable is damaged,order MCB to Top Upright
Cables[11401.J].
(Reference 2.3)
