ES Industrial Range
Product Manual V3.3
© Copyright Brainboxes Ltd Page 27 of 53

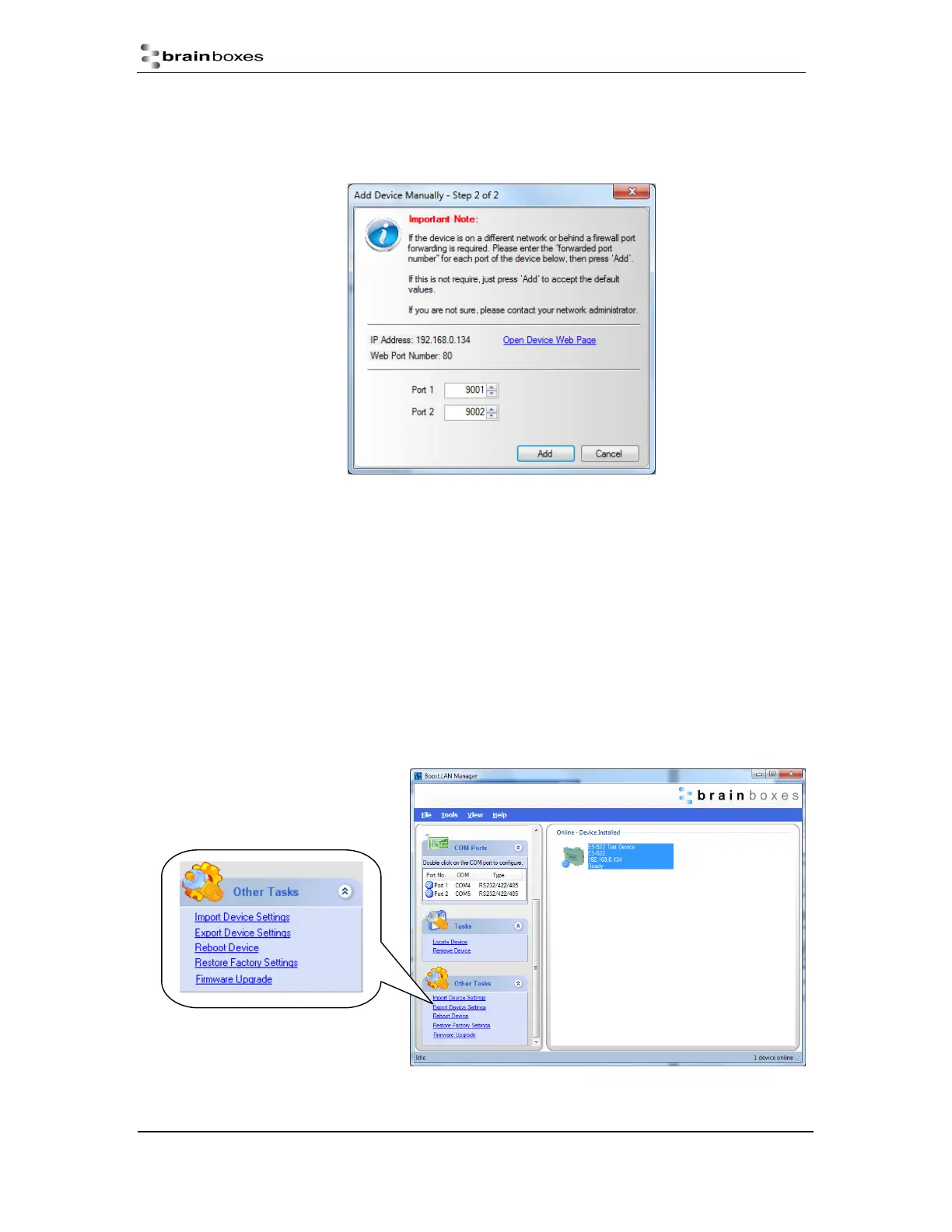

4. Enter the port numbers for Port 1 and Port 2 and then click the ‘Add’ button. The device will
then appear in the Boost.LAN manager window.
Exporting & Importing Device Settings
It is possible to export the devices current settings to a file, and then import these settings at a later
date onto either the same or a different device of the same type. The export feature will export the
following settings:
All Network Settings.
All Serial Port Settings.
Exporting Device Settings
1) Open Boost.LAN Manager
2) Find and select your installed ES Device.
3) On the left hand panel of the window, scroll down to the “Other Tasks” section.
4) Select “Export Settings”
To Next Page
