Accuracy Verification

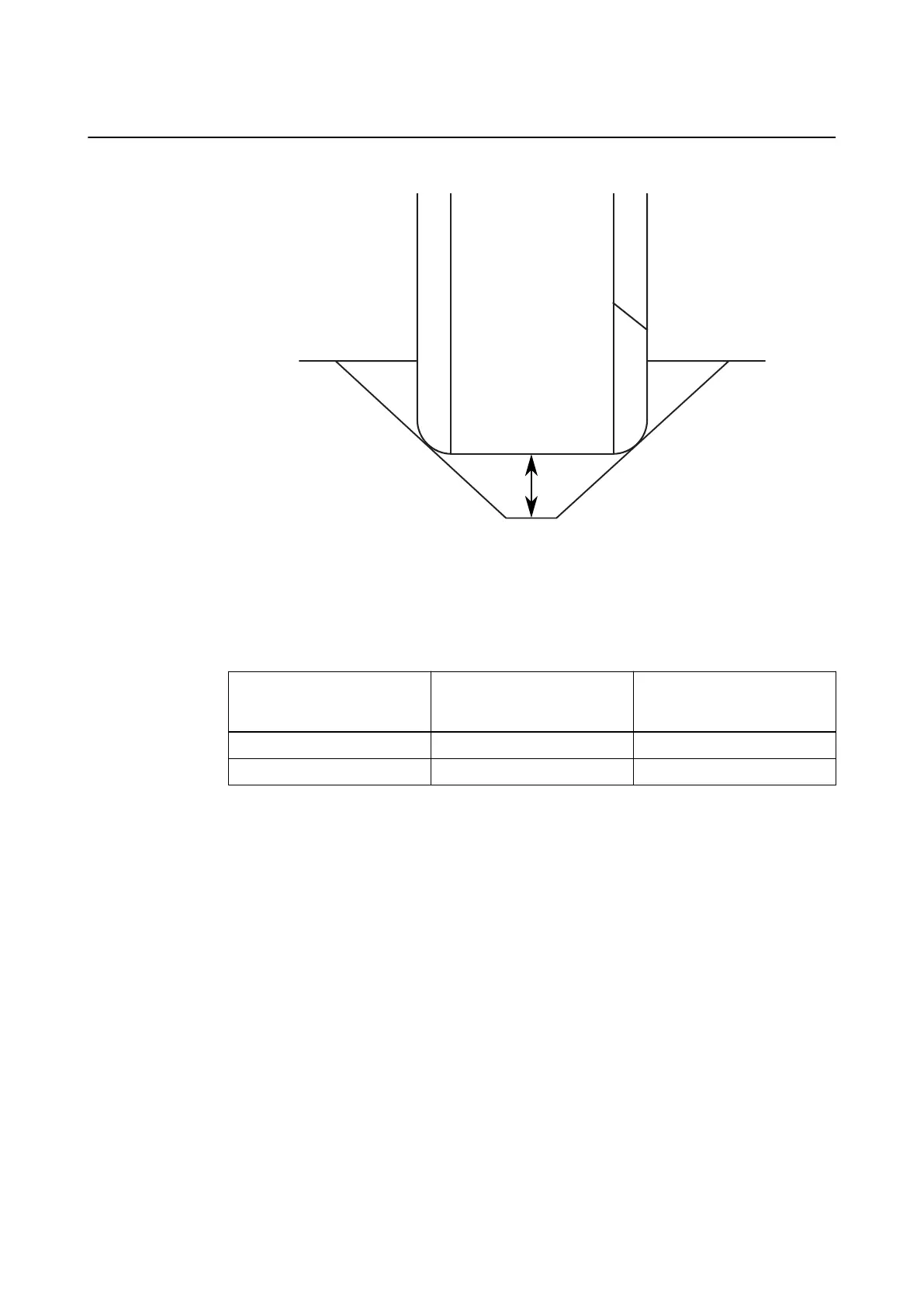

Figure 5
Offset ① of flat tip ② when verifying accuracy in the reference array cone ③.
Due to its flat tip, be aware of the offset when verifying the accuracy of suction tubes using the
cranial reference array cone (refer to the figure above) after having calibrated the standard
suctions tubes (Frazier tip) in ICM receptacle. The offset is based on the different suction tube
sizes in combination with the different reference arrays as shown in the table below:
Reusable Suction Tube Size Offset when Verification in 4-
Marker Reference Array
Cone
Calibration Method
8 Charr. (REF 55790-75) 1.0 mm Receptacle
10 Charr. (REF 55790-70) 1.2 mm Receptacle
Reusable Suction Tubes
26 Instrument User Guide Rev. 2.6 Cranial/ENT Optical Tracking
