5.2 Reference Clamp Universal
Introduction
The Reference Clamp Universal (41734) attaches the Standard Cranial Reference Array to
the head holder.
Compatible Reference Arrays
Name Article No.
Standard Cranial Reference Array with 4 Marker Spheres 41725
Safety Considerations
Warning
Do not place excessive load on the Reference Clamp Universal.
Warning
Ensure that the clamp handle is sufficiently tightened. To avoid unintentional loosening of
the fixation screw, do not place excessive weight on the Reference Clamp Universal (e.g.,
by either leaning on the device or placing additional instrumentation on it).
How to Attach the Reference Clamp to the Head Holder

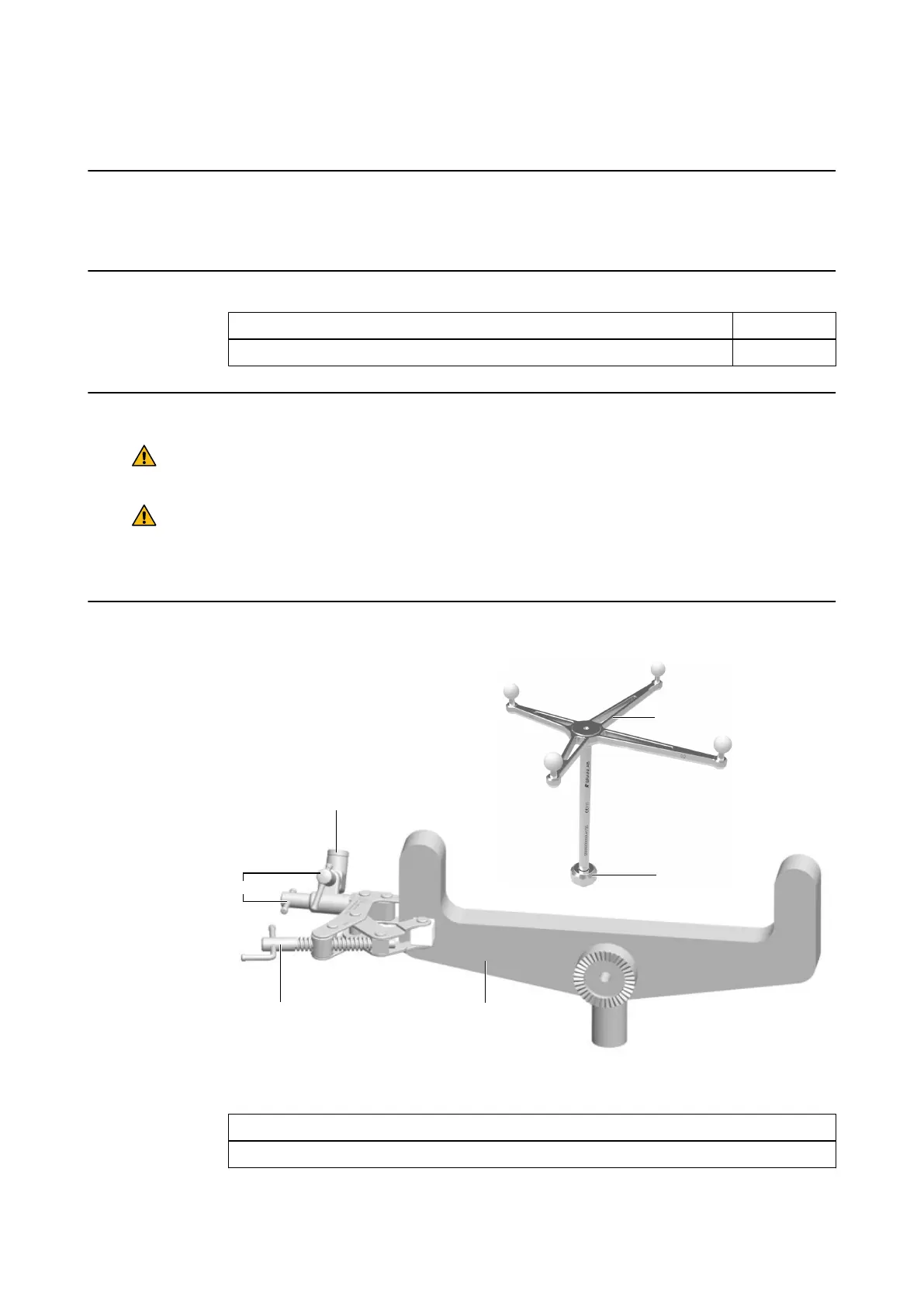

Figure 19
Step
1. Make sure that the patient’s head is rigidly fixed in the head holder.
