4.3 Softouch Pointer
Introduction
The Softouch Pointer (18390) maps the patient position to the patient’s diagnostic image data. It
is a precalibrated pointer used to register landmarks or CT/MR markers worn by the patient.
Compatible Batteries
Type Description
FR03, LiFeS
2
/1.5 V/size AAA
Lithium/iron disulfide battery
Recommended: ENERGIZER Ultimate Lithium (1200mAh)
LR03, Alkaline/1.5 V/size AAA Alkaline battery
NOTE: Do not use rechargeable batteries. It is recommended to use lithium/iron disulfide
batteries. The Softouch Pointer may also work with alkaline batteries, but with a reduced lifetime.
Components

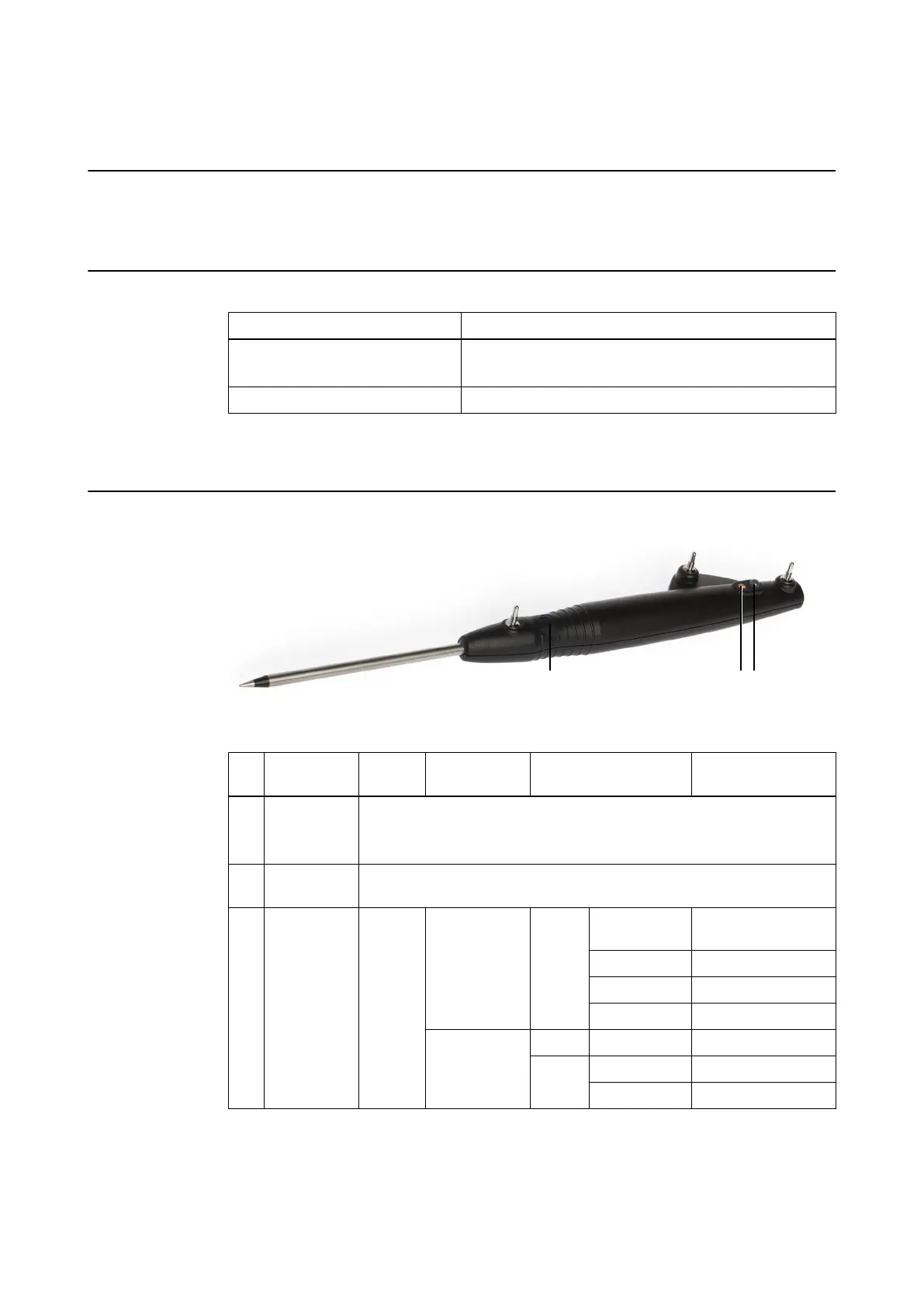

Figure 11
No. Component Func-
tion
Status Color Description
①
Standby
switch
Switches device on/off, and places it in standby mode.
• Turn on: press the switch for less than one second
• Turn off: press the switch for two seconds
②
Infrared LED
(not visible)
Allows camera to track the pointer
③
Status LED
(visible)
Pointer
status
Functioning
properly
Green
Continuous
Ready to acquire
points
1x short flash Acquired a point
2x long flash Turning on
4x long flash Turning off
Not functioning
properly
Orange Continuous Battery low
Red
Continuous Battery empty
15x flashing Error is detected
NOTE: The Softouch Pointer turns off automatically after two minutes.
POINTERS
Instrument User Guide Rev. 2.6 Cranial/ENT Optical Tracking 33
