6.3 Instrument Adapter Clamp Softgrip (Size L, XL)
General Information
The Instrument Adapter Clamp Softgrip (Size L, XL) are designed for registering surgical
instruments that cannot usually be navigated.
The instrument adapter clamps can be adapted to the following diameter ranges:
Component Article No. Diameter Range
Instrument Adapter Clamp Softgrip Size L 55113 7 mm to 16 mm
Instrument Adapter Clamp Softgrip Size L 55114 13 mm to 24 mm
Warning
Do not use on conical instruments.
Warning
Only use on metal surfaces.
Warning
Only use on non-motorized instruments.
Warning
Ensure that you use the correct size Instrument Adapter Clamp Softgrip according to the
diameter of the instrument.

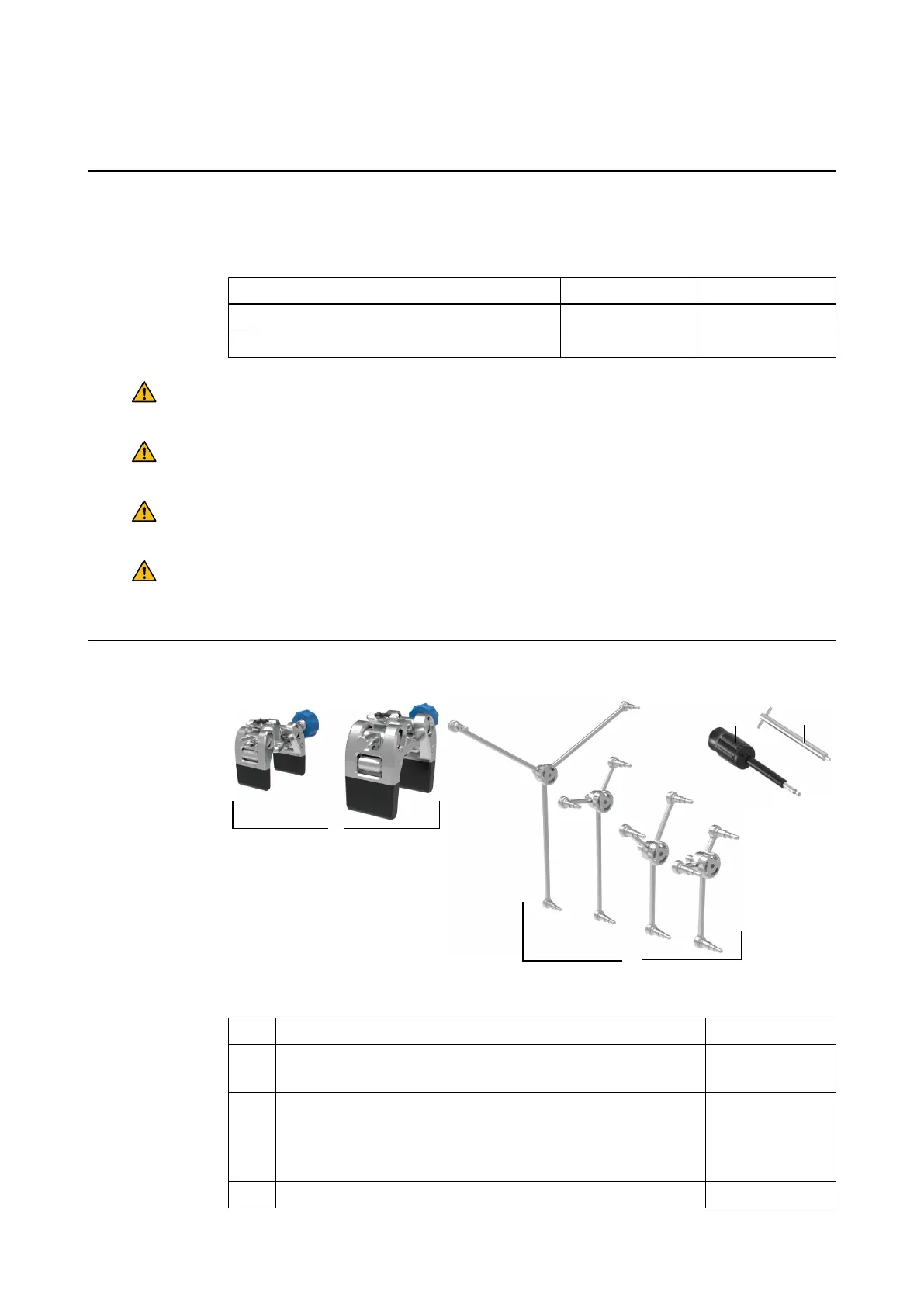

Components
①
②
③ ④
Figure 42
No.
Component Article No.
①
Instrument Adapter Clamp Softgrip Size L
Instrument Adapter Clamp Softgrip Size XL
55113
55114
②
Instrument Adapter Array Size M
Instrument Adapter Array Size ML
Instrument Adapter Array Size L
Instrument Adapter Array Size XL
41798
41799
41801
41802
③
Screwdriver (optional) 55758-30
INSTRUMENT ADAPTERS
Instrument User Guide Rev. 2.6 Cranial/ENT Optical Tracking 83
