No. Component Article No.
④
Screwdriver 41796-27
NOTE: Any instrument adapter clamp can be attached to any array. If you exchange the array for
one of a different size during the procedure, recalibrate and verify the instrument before
continuing.

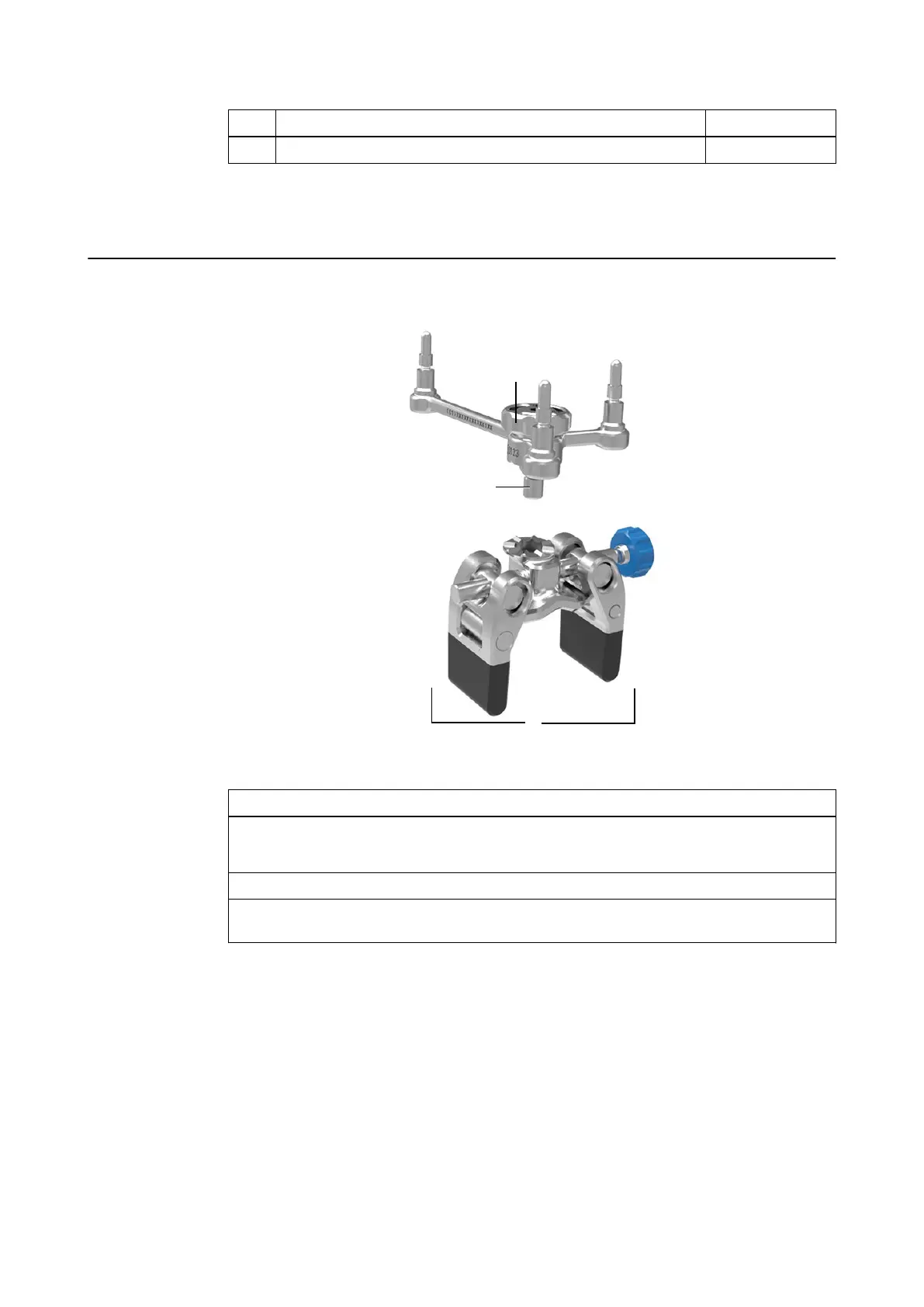

How to Attach the Array to the Instrument Adapter Clamp Softgrip
Figure 43
Step
1. Select your Instrument Adapter Clamp and Instrument Adapter Array.
NOTE: The larger the instrument, the larger the array you should use.
2. Insert the array stem ② into the clamp ① and align the teeth of both components.
3. Tighten the screw knob ③ by hand or by using the Screwdriver, ensuring that the array
is securely attached to the clamp.
Instrument Adapter Clamp Softgrip (Size L, XL)
84 Instrument User Guide Rev. 2.6 Cranial/ENT Optical Tracking
