3.2.1 Reusable Suction Tubes
General Information
Brainlab suction tubes (55790, 55790-XX) are available in different sizes and with two different
tips.
Specifications

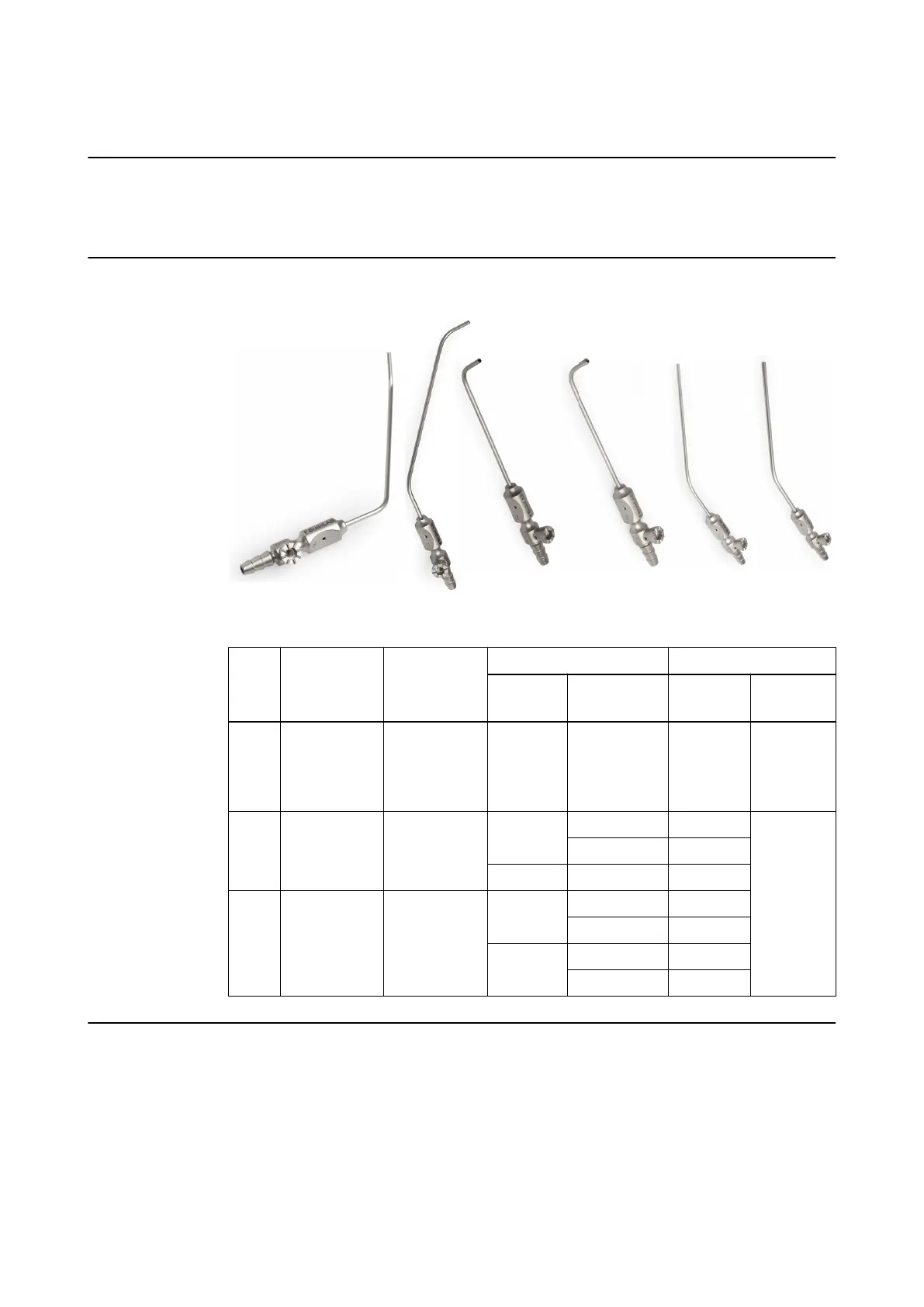

②① ③
Figure 4
No. Suction Tube Angle Available Tips Article No.
Size Type Right-
Handed
Left-
Handed
①
Frontal Sinus
Double-angled:
• 120° (near
handle)
• 110° (tip)
8 Frazier tip 55790-25 55790-15
②
Maxillary Si-
nus
110°
8
Pear tip 55790-50
n/a
Frazier tip 55790-55
10 Frazier tip 55790-65
③
Standard 135°
8
Pear tip 55790-05
Frazier tip 55790-75
10
Pear tip 55790
Frazier tip 55790-70
Calibration
Always recalibrate the tip after every adapter exchange.
