Brainlab CRANIAL/ENT OPTICAL TRACKING - Attaching the Unique Fit Adapter Base to the Probe

7.1.1 Attaching the Unique Fit Adapter Base to the Probe
About Unique Fit Adapters

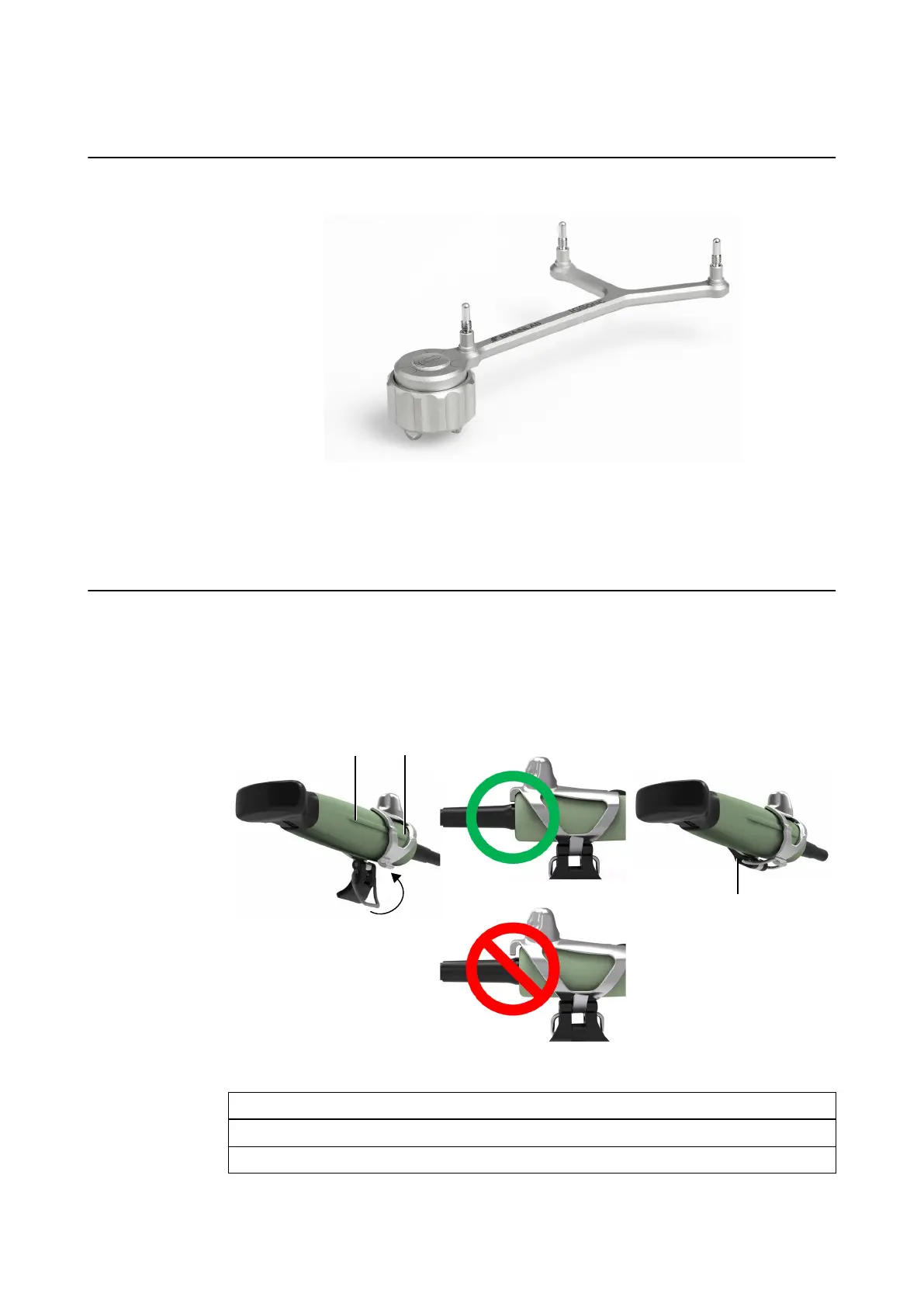

Figure 45
Unique fit adapters consist of an Adapter Base and an Ultrasound Integration Adapter Array.
They fit the same way each time and do not require recalibration every time they are used. The
Ultrasound Navigation Adapter Array (22595) is also required for tracking purposes.
How to Attach the Unique Fit BK Medical Adapter Base
The following procedure is relevant for:
• Ultrasound Navigation Adapter Base (BK 8862/8863/N11C5S)
• Ultrasound Navigation Adapter Base (BK N13C5)
• Ultrasound Navigation Adapter Base (BK X18L5s)
②①
④
②① ③
Figure 46
Step
1. Slide the Ultrasound Navigation Adapter Base ② over the probe ①.
2. Make sure that the adapter is tightly attached and fits securely to the edge of the probe ③
ULTRASOUND
