6.1.1 Instrument Adapter Accessories

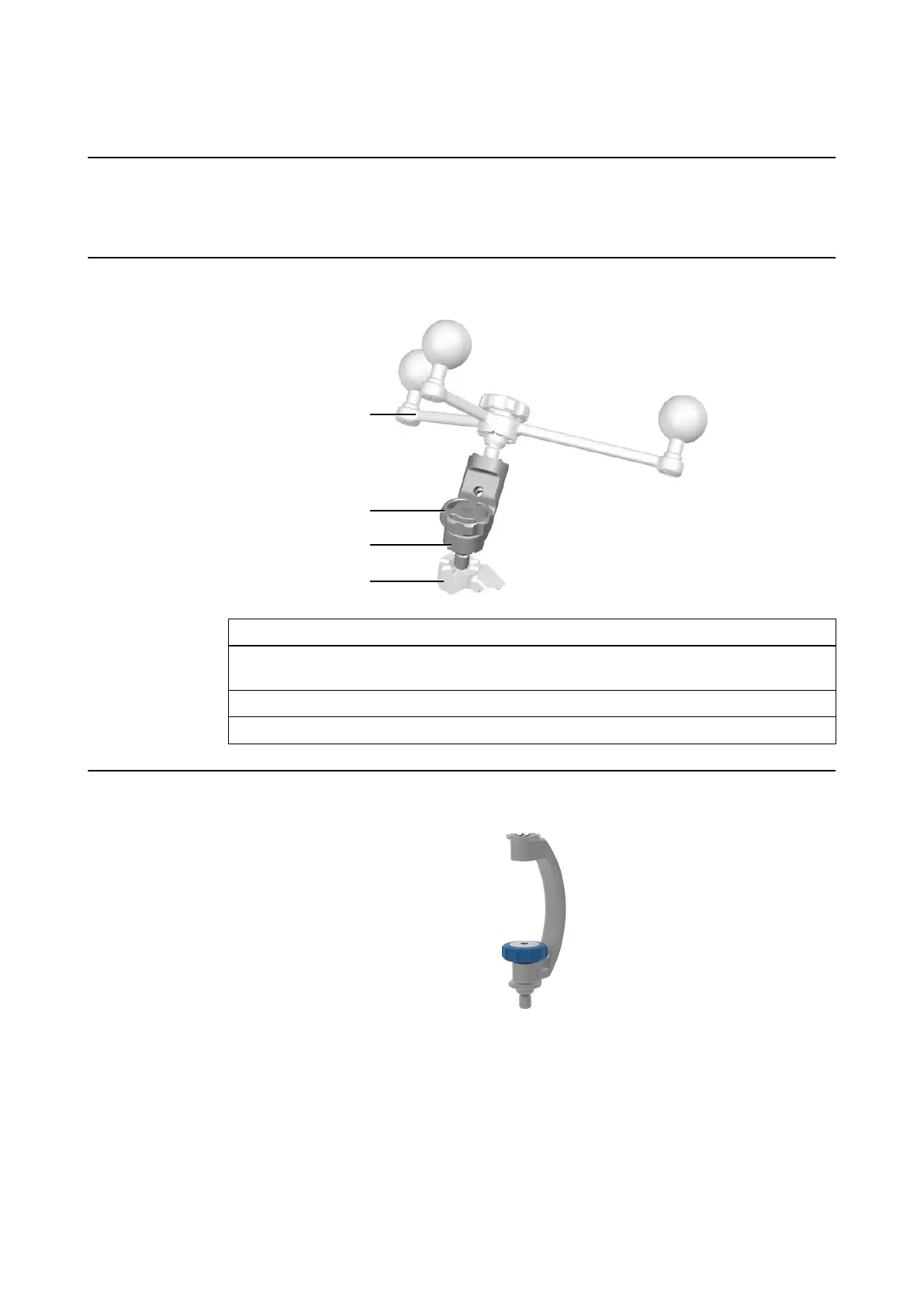

Instrument Adapter Offset-Link
The Instrument Adapter Offset-Link 45° 20 mm (55013) can attach any array to a clamp, and
the orientation of the array can be adjusted at 45° angles.
How to Attach the Adapter Offset-Link
②
①
③
④
Step
1. Fit the Instrument Adapter Offset-Link 45° 20 mm base ② onto an Instrument Adapt-
er Clamp ① and align the teeth on both components.
2. Tighten the offset-link screw ③ to secure it to the adapter clamp.
3. Attach the array ④ to the offset-link.
Instrument Adapter Extension 50 mm
Figure 38
The Instrument Adapter Extension 50 mm (55016) is designed to be used between an
Instrument Adapter Clamp and Instrument Adapter Array where more space is required.
NOTE: In case of impacts being placed onto the navigated instrument, it is recommended to use
the Instrument Adapter Extension 50 mm with the Instrument Adapter Clamp Softgrip.
