How to Attach the Adapter Extension

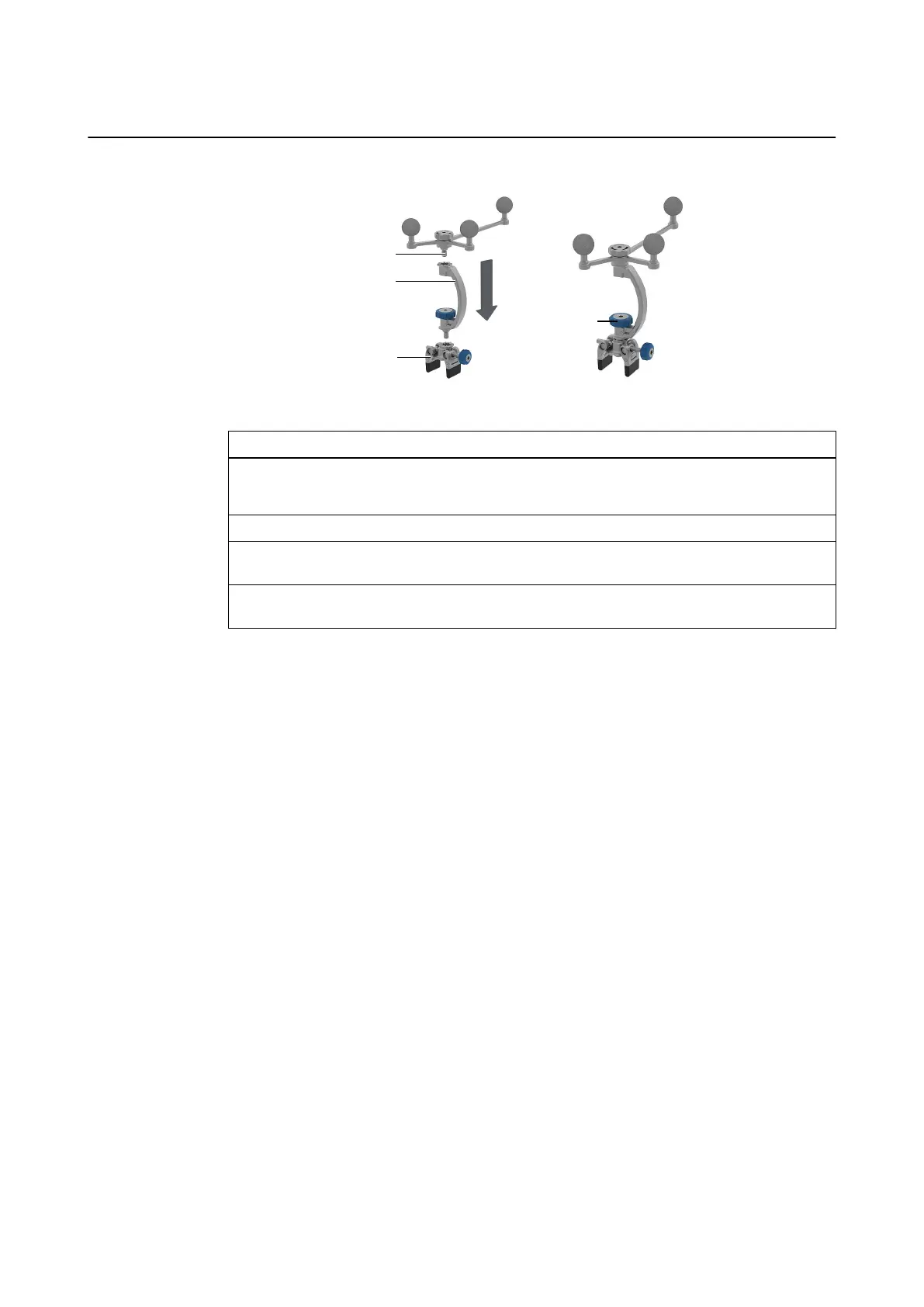

Figure 39
Step
1. Select the required Instrument Adapter Clamp and Instrument Adapter Array.
NOTE: The larger the instrument, the larger the array you should use.
2. Insert the adapter extension ② into the clamp ③ aligning the teeth on both components.
3. Insert the array stem ① into the adapter extension ② also aligning the teeth on both com-
ponents.
4. Tighten the screw knob ④ by hand or by using the Tool for Instrument Adapter, ensur-
ing that the array is securely attached to the clamp.
