How to Assemble the Adapter Base

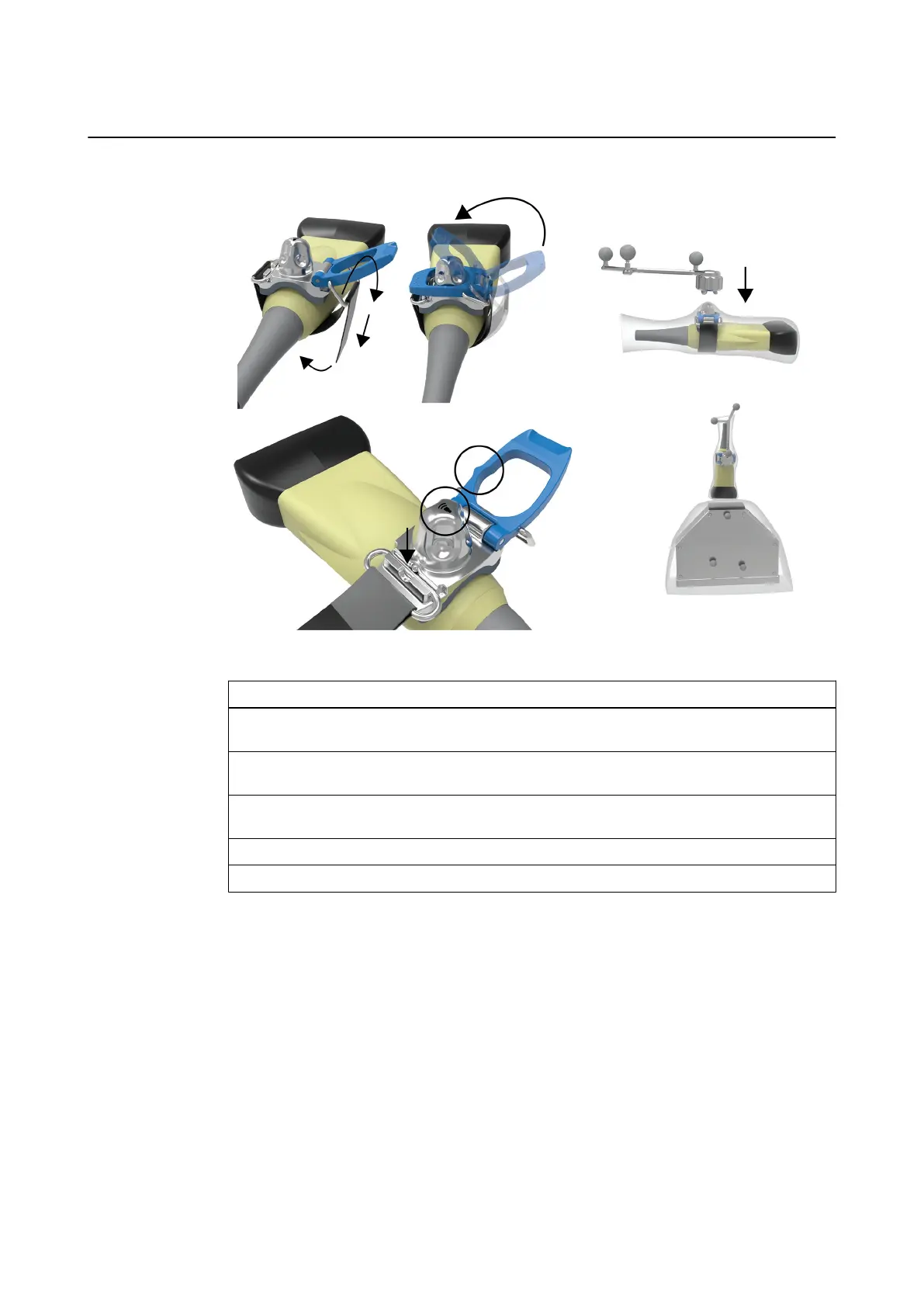

Figure 50
Step
1. Attach a hook and loop band of appropriate length to the adapter base by clicking it into
place ①.
2. Place the adapter base on the ultrasound probe and verify that the orientation with the
probe tip is correct ②.
3. Feed the hook and loop band under the probe ③ and through the metal loop and pull
tight.
4. Close the clasp ④ ensuring a tight fit.
5. Drape the adapter base ⑥, attach the array ⑤ and calibrate.
Generic Ultrasound Adapter Base Kit
