Controls and Commands
Digital Sonifier
2.2 Controls and Commands
This section describes the controls and commands that you use to operate the D igital Sonifier.
A detailed description of how and when to use each front panel control, the valid formats for
the data that you enter, and the response you receive from the system when you use each of
these controls is provided in
Chapter 6, Operations
.
The Digital Sonifier is equipped with a keypad and LCD display on the front panel of the unit.
With the keypad, you can set functional modes of operation and input digital parameters. Avail-
ability of the various functions depends on the mode or state of the system. If you attempt to
use a function that is not available, you will be alerted by a beep.

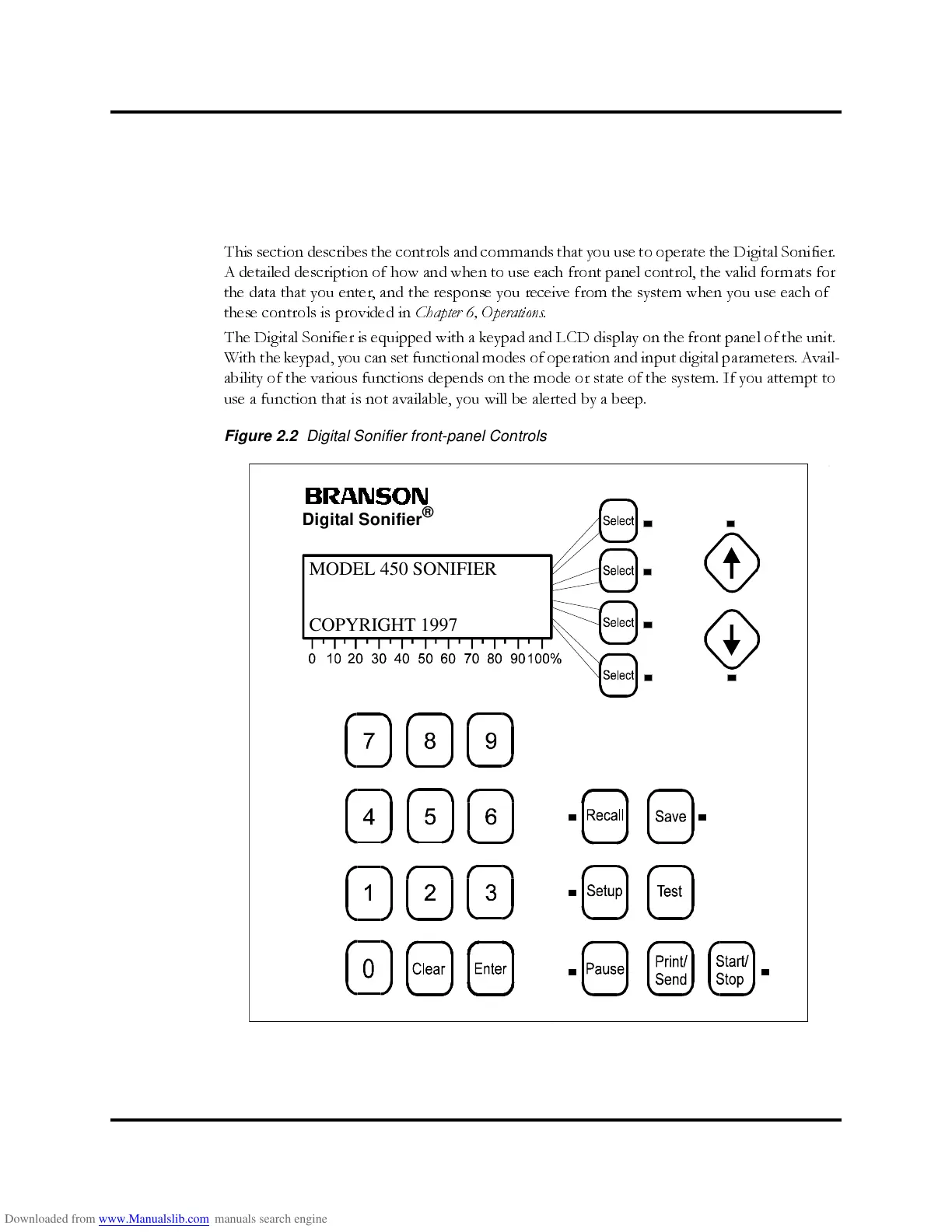

Figure 2.2 Digital Sonifier front-panel Controls
MODEL 450 SONIFIER
COPYRIGHT 1997
Digital Sonifier
®
