16 67XXU USB/Serial Scale Service Manual
6. Line up holes of the bracket with the holes on the scale base. Fasten the
bracket down with the four provided screws.

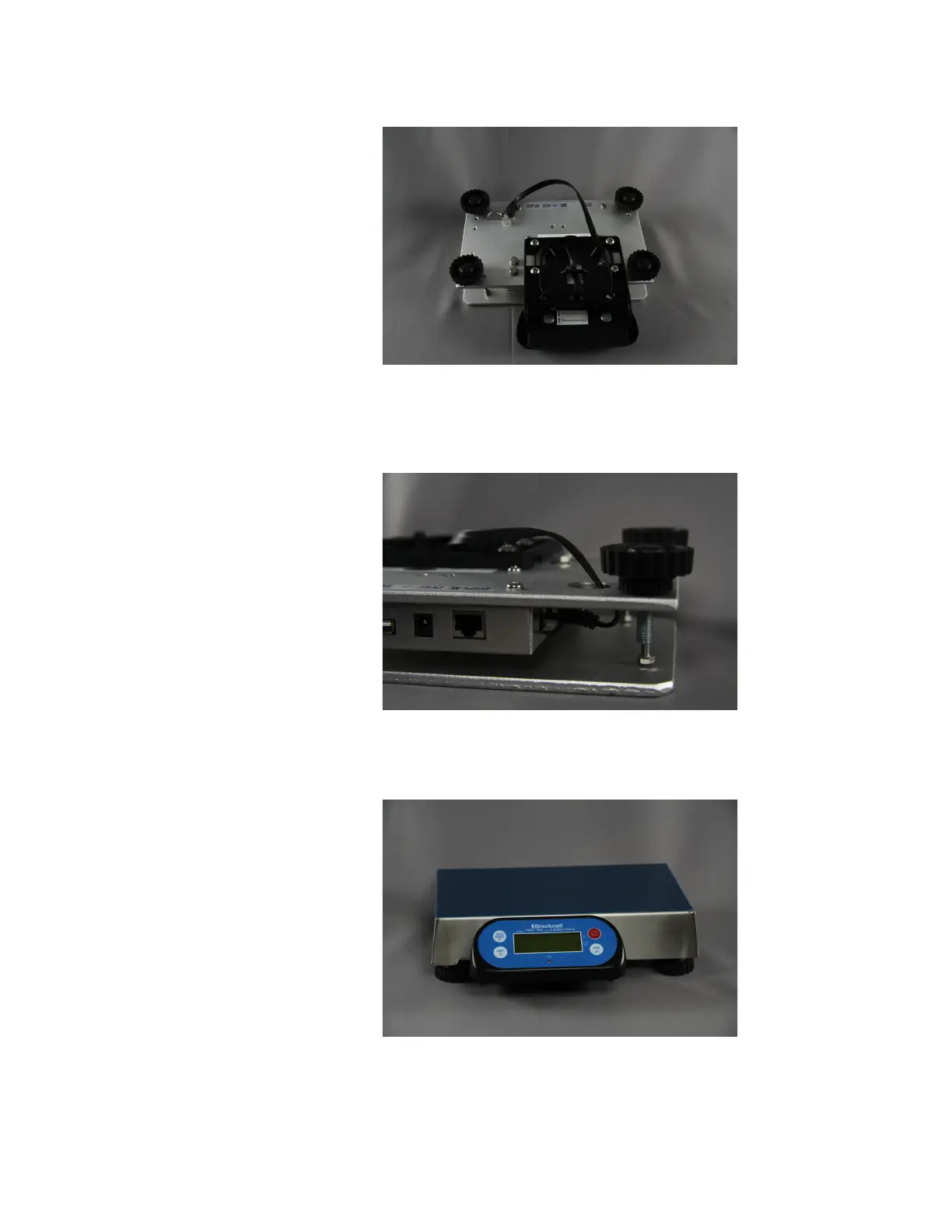

Figure 2.18 Bracket Installation
7. Route the display cable through the opening of the scale base and plug the
display cable into the DISPLAY port underneath.
Figure 2.19 Display Port
8. Turn the scale upright.
Figure 2.20 Scale with Attached Display
