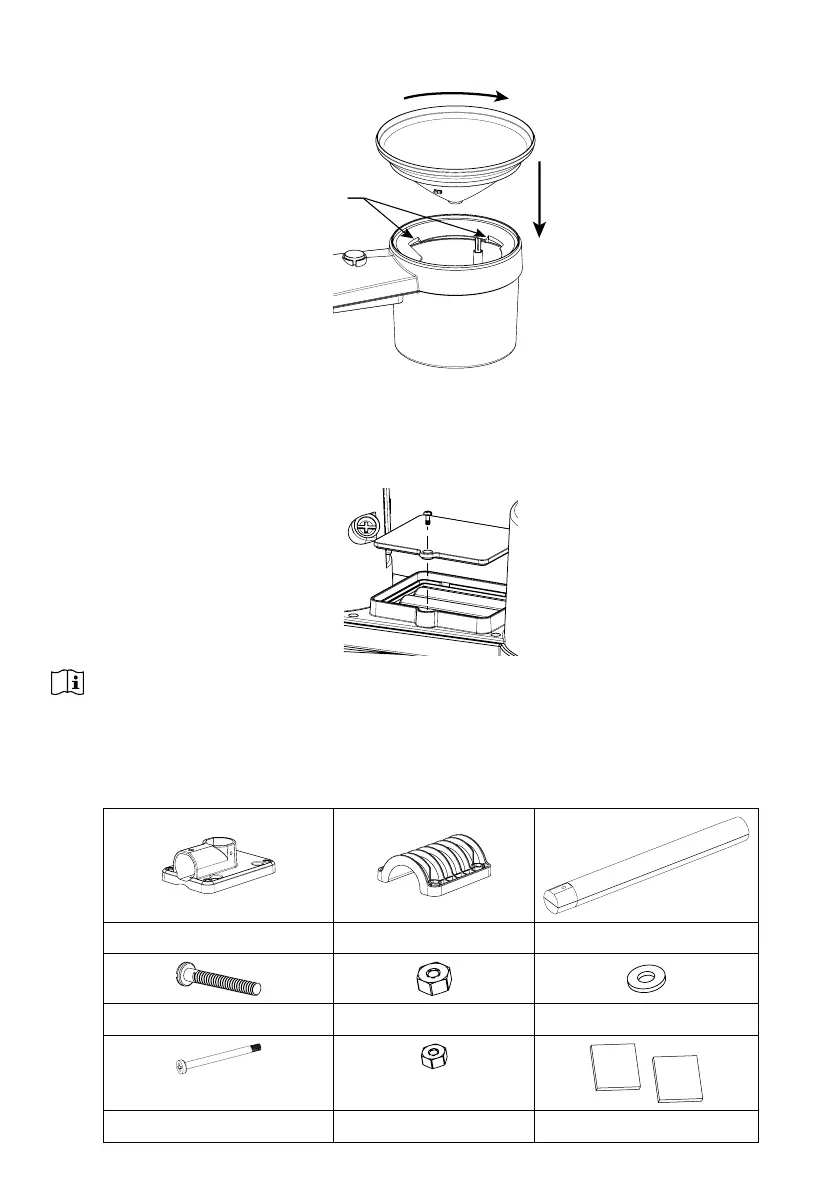

3.1.2 INSTALL RAIN GAUGE FUNNEL
Install the rain gauge funnel and rotate clockwise to lock the funnel to the sensor array
Step 2
Step 1
Lock
grooves
3.1.3 INSTALL BATTERIES
Unscrew the battery door at bottom of unit. Insert the 3 AA batteries (non-rechargeable)
according to the +/- polarity indicated. The red LED indicator on the back of the sensor array
will turn on, and then begin ashing every 12 seconds.
NOTE:
We recommend using non-rechargeable Lithium AA batteries for cold weather climate, but
normally Alkaline batteries are su󰀩cient for use in most weather condition.
3.1.4 SENSOR ARRAY INSTALLATION
Mounting kit set
1. Pole mounting stand x 1 2. Mounting clamp x 1 3. Plastic pole x 1
4. screws x 4 5. Hex nuts x 4 6. Flat washers x 4
7. screw x 1 8. Hex nut x 1
9. Rubber pads x 2
