1. Pressure Regulating Valve: Opens
and closes pressure regulating valve.
When cover and valve are CLOSED,
this valve seals the cooking well allow-
ing pressure to build up. Valve is pre-
set to maintain pressure at 12-14 PSI
during a cooking cycle. When OPEN,
all pressure is exhausted and timer
stops timing.
2. Cooking Well: Holds cooking oil.
3. Basket Lifter Holder: Holds basket
lifter when not in use.
4. Condensate Pan: Holds condensation
drained from exhaust tank. Check liq-
uid level several times daily. Empty as
needed.
WARNING: Water and hot oil DO
NOT mix. DO NOT pour contents of
condensate pan into cooking well or filter
pan. Hot oil could splash causing serious
burns.
5. Filter Pan: Holds filter components
and filtering compound used to filter
hot oil.
CAUTION: HOT!
WARNING: Hot shortening! DO NOT
use this container to transport hot
shortening. Hot shortening could splash
causing serious burns.
6. Exhaust Drain Tube: Directs conden-
sation from the exhaust tank into con-
densate pan.
7. Model 1800GH Pilot Burner: Maintains
a small flame used to ignite the main
burner.
8. Model 1800GH Manual Gas Shut Off
Valve: Shuts off gas flow to the gas
valve. Gas will flow when handle is in
line with pipe. Turning handle cross-
wise to the pipe will stop gas flow.
9. Model 1800GH Gas Valve: Regulates
gas supply. The valve has a three
position knob: OFF to stop all gas flow,
PILOT to light the pilot burner and ON
allows gas flow to pilot and main burn-
ers as needed.

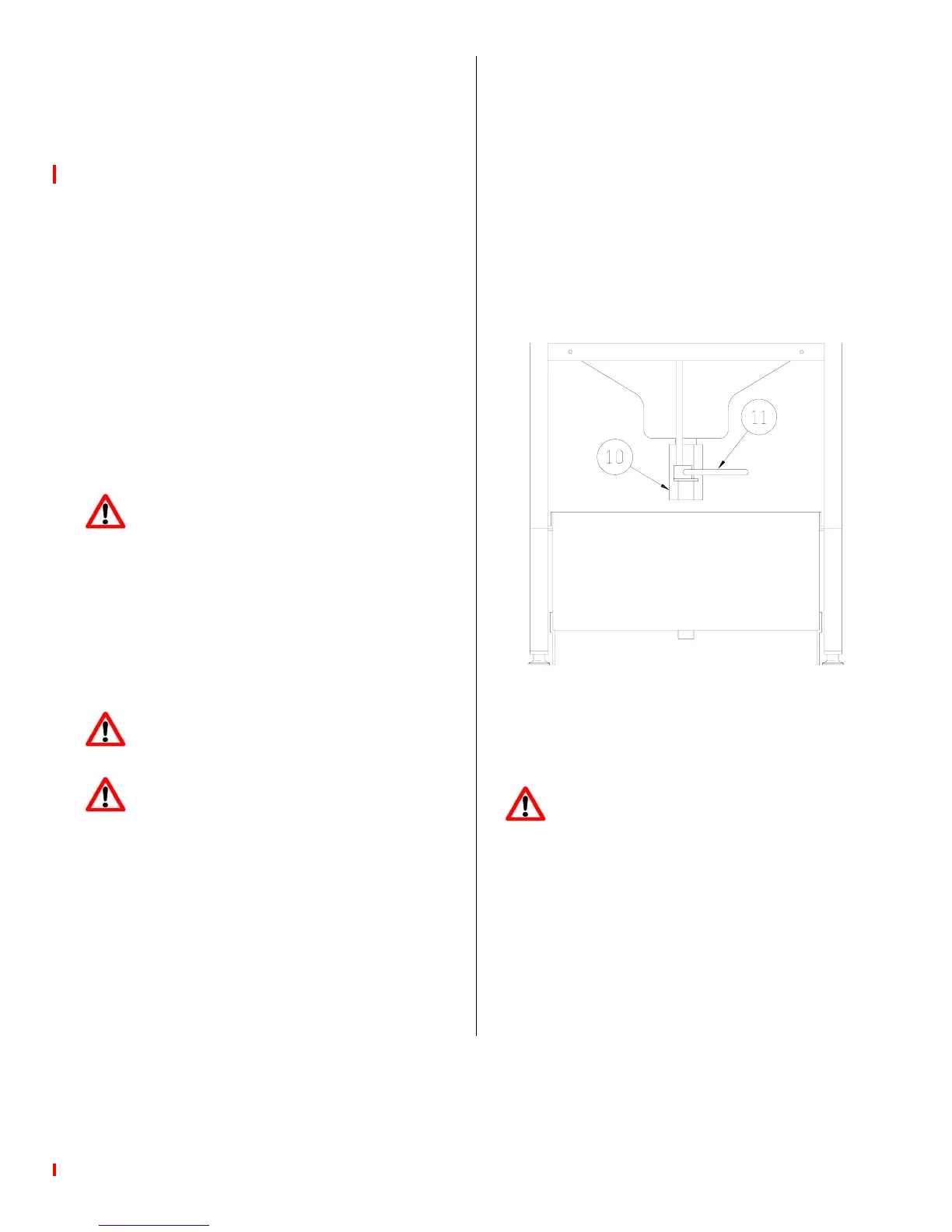

10. Drain Valve: Used to drain cooking oil
from cooking well into filter pan or con-
tainer made for handling hot oil.
DANGER: Never drain oil unless
cook/filter switch is OFF and pressure
regulating valve is OPEN. Hot oil could
spray out under pressure causing serious
burns.
11. Drain Valve Handle: Opens and closes
drain valve. When handle is horizon-
tal, valve is closed. When vertical,
valve is open.
4 - 3
