FUSE (1600/1800E)

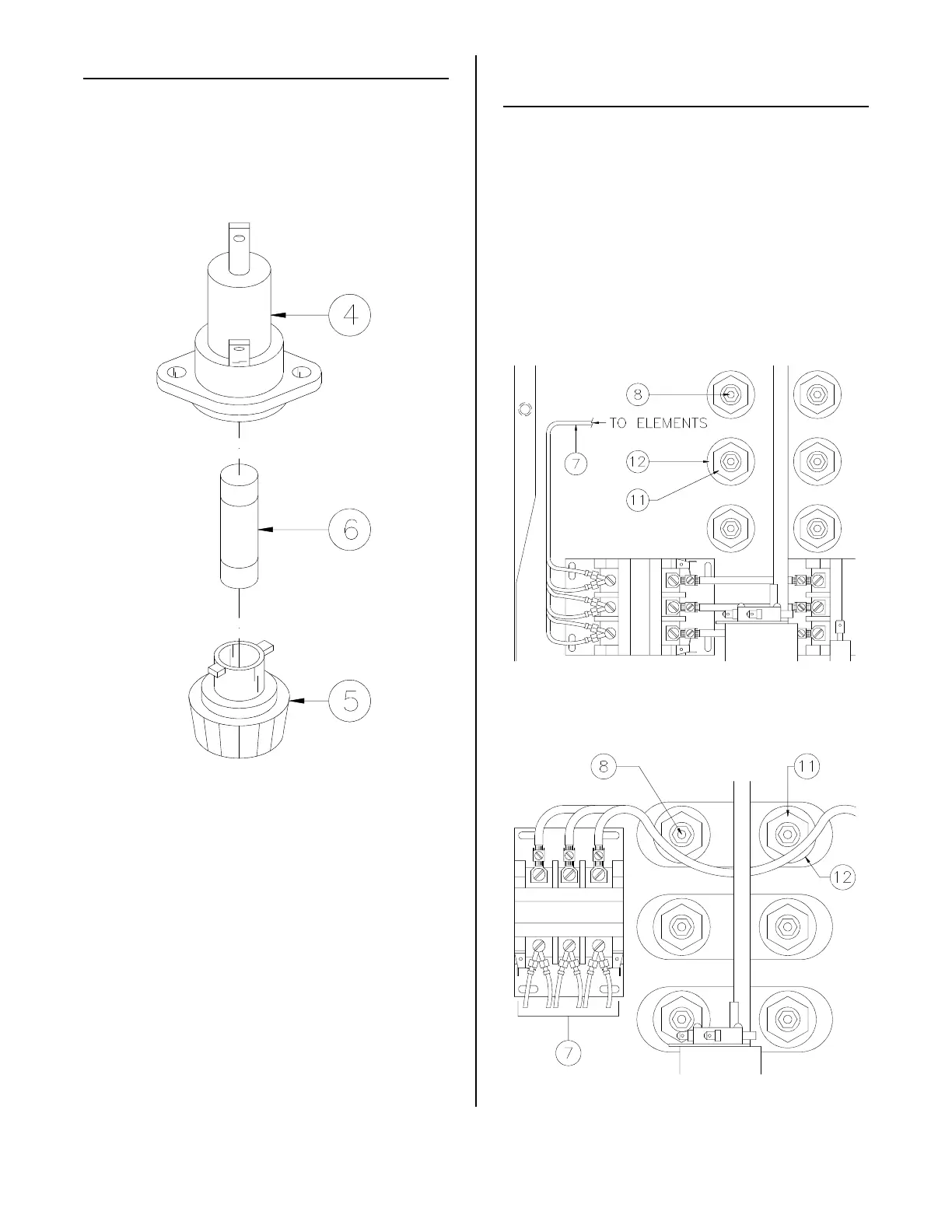

Two 15 amp fuses protect the control and
filter circuits.
1. See ACCESS FOR SERVICE.
2. With needle nose pliers, disconnect
wire(s) from one end of fuse holder (4).
3. Check between two terminals of fuse
holder with an ohmmeter. Meter
should indicate a closed circuit. If not,
fuse may be faulty.
Fuse Replacement:
1. Remove end cap (5) and replace fuse
(6).
HEATING ELELEMENTS
(1600/1800E)
All elements heat the oil when the Smart
Touch controller calls for heat. If HEAT ON
light is illumminated for long periods of
time, this may indicate a faulty element or
wire connection.
1. See ACCESS FOR SERVICE.
1600:
1800E:
Continued:
