9-6
PUMP
Pumps cooking oil from filter pan to the
cooking well.

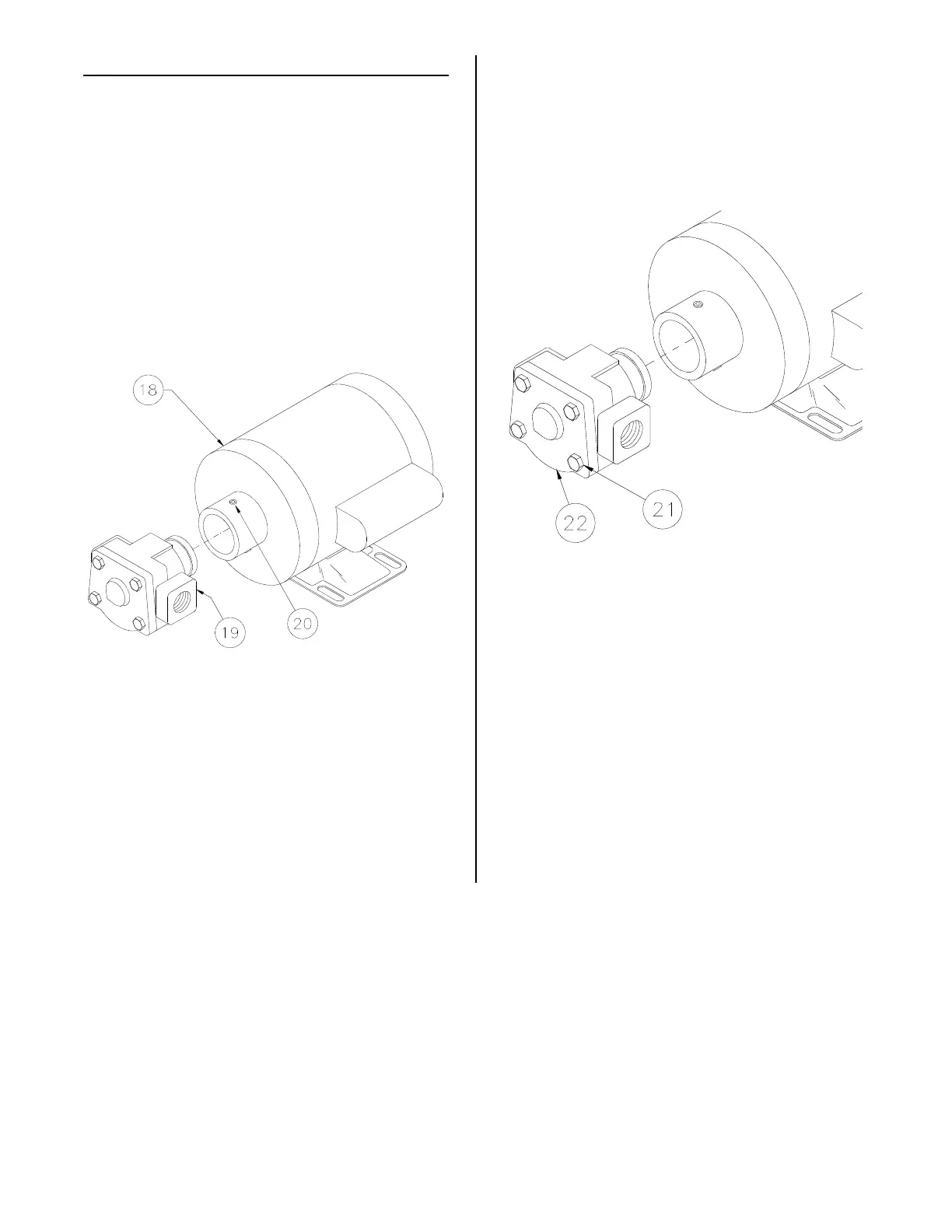

Removal:
1. Disconnect main electric power sup-
ply.
2. Drain cooking oil from cooking well
into a container made for handling hot
oil and close drain valve.
3. Remove piping from pump (19).
4. Loosen three set screws (20) in neck of
motor (18) which hold pump in place.
Remove pump.
5. Assemble in reverse order using teflon
tape on pipe threads.
Installation Hints:
1. Loosen motor mounting bolts to help
install piping.
2. See MOTOR Installation Hints.
Pump Cleaning:
Cleaning will be necessary if pump is seized
and tripping thermal overload on the motor.
1. See PUMP Removal. Remove pump.
2. Remove four bolts (21) and cover (22).
3. Remove interior gears.
4. Clean gears and covers.
5. Replace O-ring and shaft seal if neces-
sary.
6. Install in reverse order using #15820
Primer & #15359 Sealant on pipe
threads.
Reassembly Hints:
1. Pour olive oil or cooking oil on gears
and inside front cover bearing where
gear shaft is installed. Turn gears by
hand for good oil coverage.
2. Be sure cover O-ring is in place before
tightening bolts.
