9-4
5. Unscrew valve (16).
6. Remove any fittings from the valve.
7. Install in reverse order using #15820
Primer & #15359 Sealant on pipe
threads.
Installation hint:
1. When installing a fitting or pipe nipple
into the valve, be sure to place wrench
on the same side of valve into which
fitting or nipple is being installed. DO
NOT tighten across the valve! Distor-
tion of valve seat could occur.
2. When installing compression fittings
on tubing, tighten nut finger tight then
turn 1-1/4 turns more.

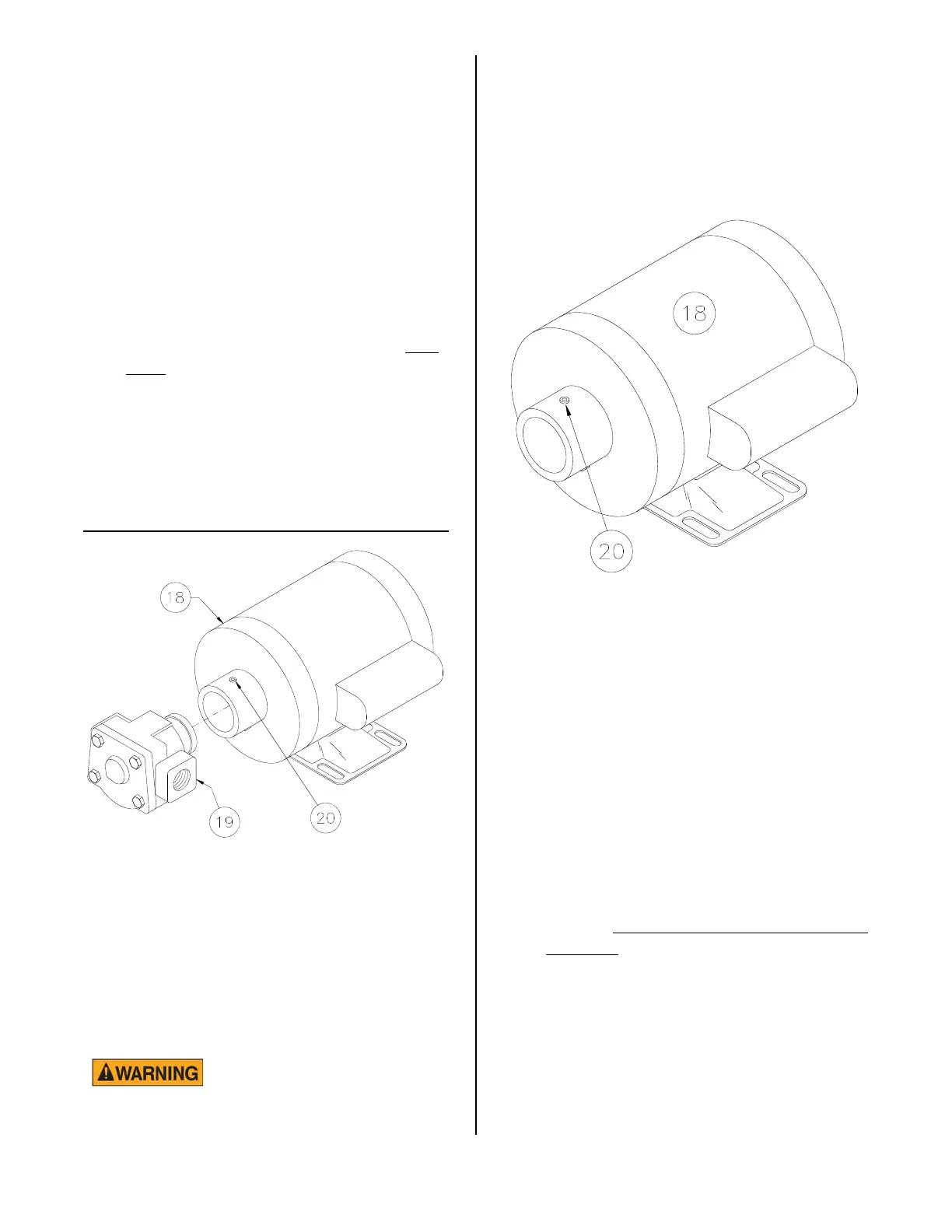

MOTOR
Motor (18) turns pump (19) which returns
cooking oil from filter pan to the cooking
well.
Motor has a manual reset thermal overload.
If overload trips, push red reset button on
back after motor has cooled.
Turn power switch OFF
before resetting manual
reset thermal overload.
Replacement:
1. Disconnect main electric power sup-
ply.
2. Disconnect conduit wires and conduit
from the motor.
3. Loosen three set screws (20) in neck of
motor (18) which hold pump in place.
4. Remove motor mounting bolts and
remove motor.
5. Install in reverse order.
Installation Hints:
1. Be sure pump is fully installed into the
motor neck before tightening set
screws.
2. Tighten three set screws in neck a little
at a time, in sequence, around neck
until tight. This will prevent any unnec-
essary binding on shafts of the pump
and motor.
broaster.com Manual #17270 10/13 Rev 12/14
