Be sure pilot burner gas
supply line is fully
installed into gas valve fitting during
installation. If not, a gas leak may be the
result.
10. Install in reverse order. Use gas pipe
sealer on pipe threads. Check all gas
connections and pipes with a soap and
water solution. Bubbles indicate a gas
leak.

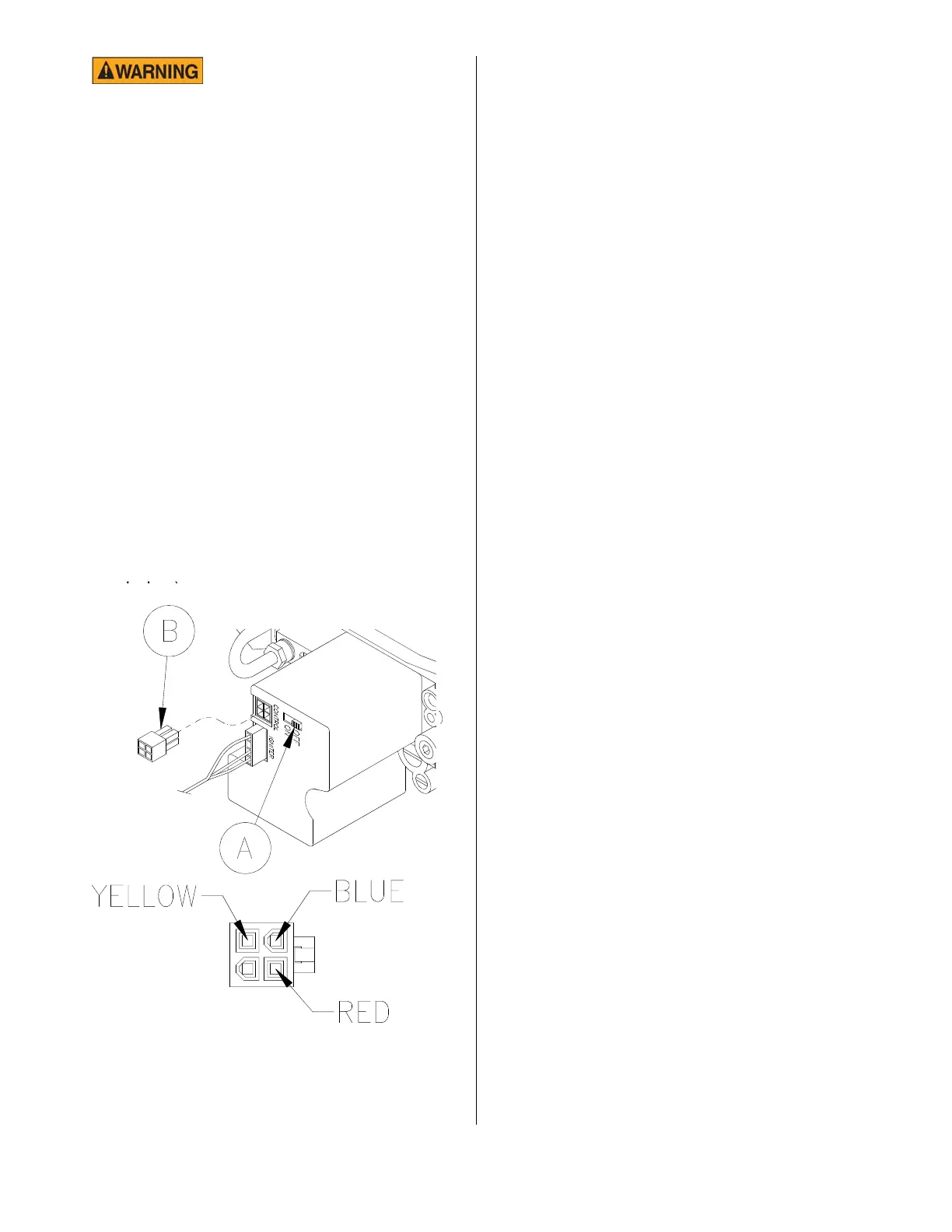

GAS VALVE POWER CHECK
1. Turn SWITCH A to off.
2. Pull out plug B.
3. Turn the COOK/FILTER switch to
COOK.
4. At the end of the plug, check for
24VAC between the blue and red wire
and the blue and yellow wire. (see
below)
5. Refer to the TROUBLESHOOTING
FLOW CHART on page 11-10 if there
is no voltage at either or both places.
